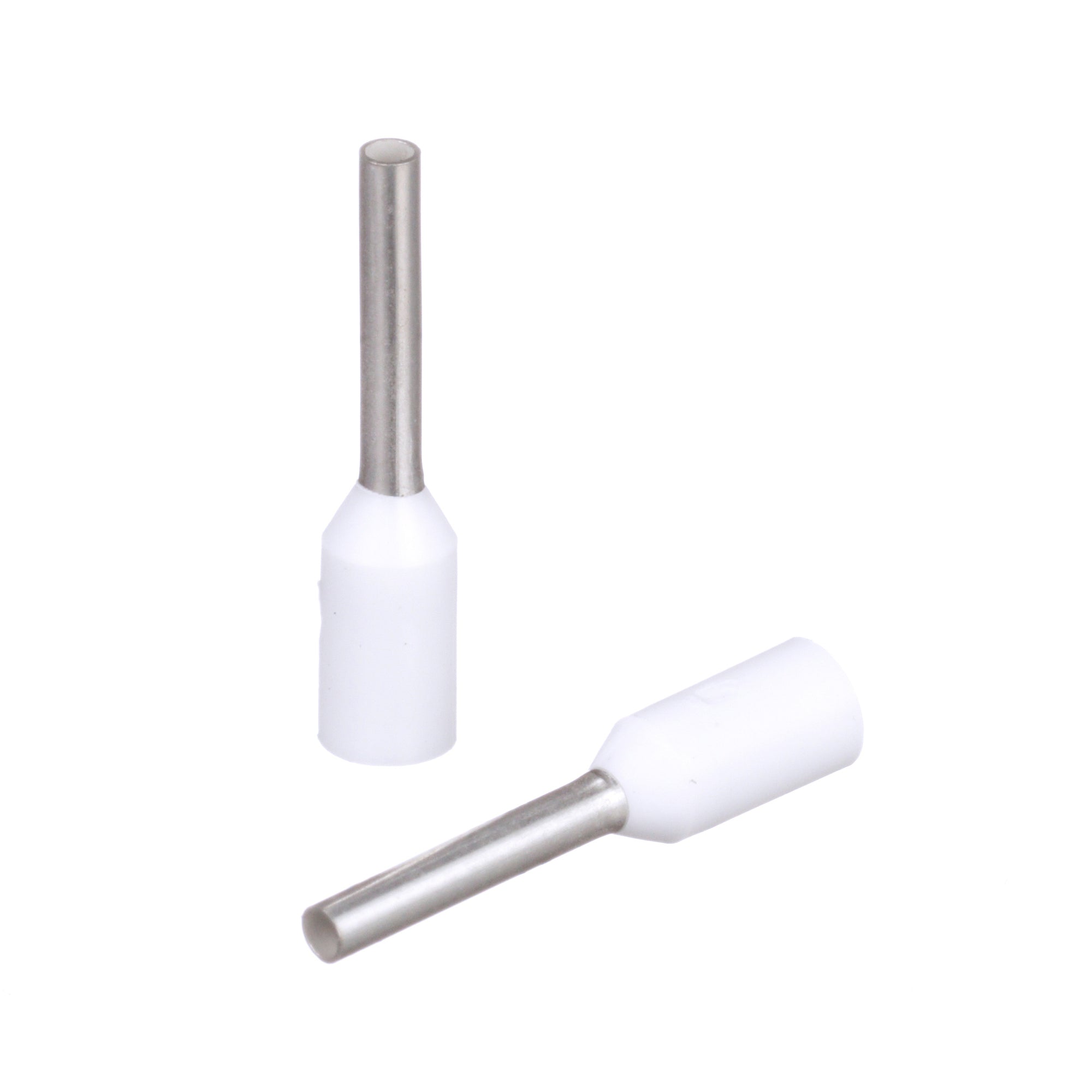

Panduit FSD75-8-D Covered Single Wire Ferrule

Product Description

Panduit FSD75-8-D is a covered single wire ferrule designed for electrical connections. This ferrule features a seamless barrel that holds loose wire strands effectively. The plastic covering with a flare simplifies wire insertion, reducing the overall installation cost by enhancing the feeding of wire into terminal blocks. It is suitable for tight spaces in panel applications.

• Seamless barrel for superior wire strand termination
• Plastic covering allows easy wire insertion
• Complies with DIN color requirements

Product Highlights

This product provides reliable connectivity while accommodating a variety of wire types and sizes.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: FSD75-8-D

Technical Specifications

• Type: Covered Single Wire Ferrule
• Material: Copper
• Color: White
• Insulation: Polypropylene
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Conductor Size: 20 AWG
• Standards: DIN 46228, CSA C22.2 No. 291-14, UL 486F
• Barrel Size: 0.04 inches ID x 0.31 inches L
• Wire Strip Length: 15/32 inches
