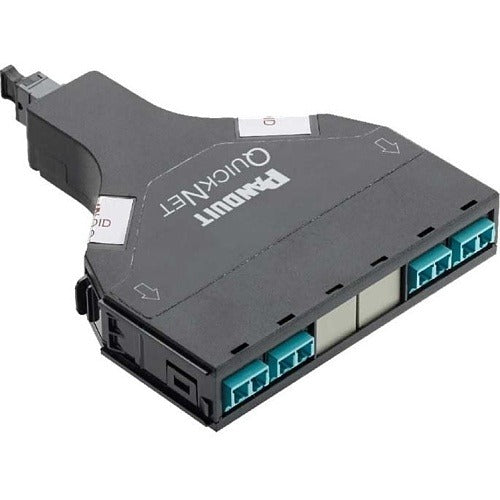

Panduit FC3ZO-16-10B Quicknet OM4 Fiber Cassette

Product Description

The PANDUIT FC3ZO-16-10B is a QuickNet fiber optic cassette designed for high-density structured cabling installations. It supports OM4 multimode fiber connections and is built to integrate directly into QuickNet modular patching systems. The cassette format allows technicians to pre-terminate fiber runs and snap the unit into a chassis, significantly reducing field termination time. This type of component is typically installed by low-voltage cabling technicians and network infrastructure specialists working in data centers, telecom rooms, and enterprise LAN environments.

The FC3ZO-16-10B is suited for high-bandwidth OM4 multimode fiber applications, including 10G, 40G, and 100G backbone and horizontal runs in commercial and enterprise settings. It is designed for use within PANDUIT QuickNet modular cassette chassis systems, where pre-loaded cassettes allow rapid deployment and simplified moves, adds, and changes. This cassette is well-matched for data center structured cabling projects where port density and low insertion loss are priorities.

Key Features

• OM4 multimode fiber support for high-bandwidth backbone and horizontal cabling
• QuickNet cassette form factor enables tool-free snap-in installation into compatible chassis
• Pre-terminated cassette design reduces field splicing and termination labor
• High-density patching configuration suited for data center and enterprise telecom rooms
• Sold as an individual unit for precise quantity ordering on structured cabling projects

Compatibility

Designed for use with PANDUIT QuickNet modular cassette chassis systems supporting OM4 multimode fiber connectivity. No additional compatible model numbers were specified in the available product data.

Installation Notes

Installation is typically performed by licensed low-voltage cabling technicians in accordance with ANSI/TIA-568 structured cabling standards. Ensure the chassis is de-energized and all active equipment on associated ports is taken offline before inserting or removing cassettes. Handle fiber connectors carefully to avoid contamination of end faces, and inspect or clean ferrules before mating. Follow the cassette chassis manufacturer guidelines for proper seating and latch engagement.
