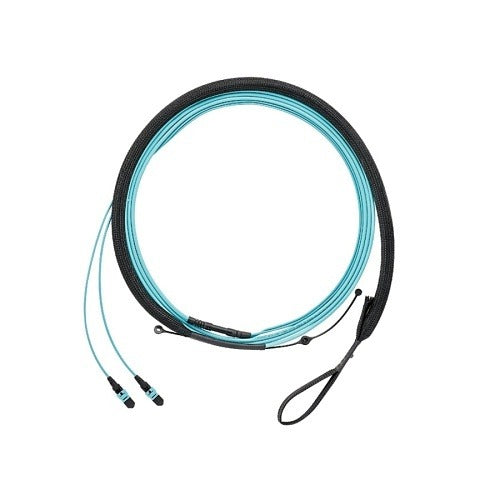

Panduit F9TRP5NQSSNF027 OS2 12-fiber Mpo Harness

Product Description

The PANDUIT F9TRP5NQSSNF027 is an OS2 single-mode 12-fiber MPO trunk harness assembly with an OFNP plenum-rated jacket. This factory-terminated harness provides a pre-connectorized solution for high-density fiber distribution in structured cabling systems. It is designed for use in air-handling spaces where plenum-rated cabling is required by code. Network technicians and low-voltage cabling contractors install this type of assembly in data centers, enterprise backbones, and telecommunications rooms where MPO-based fiber infrastructure is deployed.

This harness is suited for OS2 single-mode fiber backbone runs in commercial and enterprise environments. It supports high-bandwidth, long-distance optical transmission applications. The MPO connector format allows rapid plug-and-play termination at patch panels, trunk cassettes, and active equipment ports, reducing field termination time and improving installation consistency in structured cabling deployments.

Key Features

• OS2 single-mode fiber for long-distance, high-bandwidth optical transmission
• 12-fiber MPO connector interface for high-density structured cabling
• OFNP plenum-rated jacket meets code requirements for air-handling spaces
• Factory-terminated assembly eliminates field termination variables
• MPO push-pull connector design supports tool-free plug-and-play installation

Compatibility

Designed as an OEM-style trunk harness for use with OS2 single-mode MPO-based fiber distribution systems including compatible patch panels, trunk cassettes, and MPO-port active equipment in structured cabling environments.

Installation Notes

Installation is performed by licensed low-voltage cabling contractors or qualified network infrastructure technicians. Deactivate all connected optical transmitters and active equipment ports before handling fiber connectors to avoid eye hazard from live laser sources. Follow TIA-568 and applicable NFPA 70 (NEC) Article 770 requirements for plenum-rated optical fiber cabling routing and bend-radius management. Inspect MPO ferrule faces with a fiber inspection scope before mating to ensure contamination-free connections.
