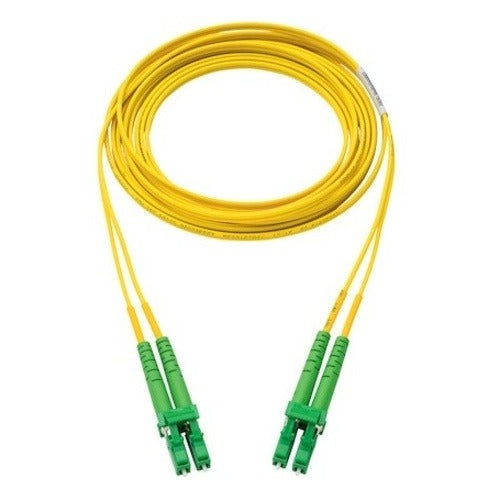

Panduit F923LANSNSNM041 OS2 Duplex Fiber Patch Cable

Product Description

The PANDUIT F923LANSNSNM041 is an OS2 singlemode duplex fiber optic patch cable designed for low-loss, high-bandwidth structured cabling installations. The cable features a 3mm LSZH (Low Smoke Zero Halogen) jacket, making it suitable for use in plenum and other enclosed environments where smoke and toxicity are a concern. One end terminates in an SC APC (Angled Physical Contact) connector and the other in an SC PC (Physical Contact) connector. This cable is typically installed by licensed low-voltage technicians, data center technicians, and structured cabling installers working in commercial and enterprise networking environments.

This patch cable is well suited for singlemode fiber runs in data centers, telecommunications rooms, enterprise LAN backbones, and campus distribution networks. The SC APC connector provides lower back-reflection loss, making it appropriate for passive optical network (PON) and high-sensitivity optical transmission applications. The SC PC connector on the opposing end allows connection to standard SC-compatible transceivers, patch panels, or active equipment ports.

Key Features

• OS2 singlemode fiber construction for long-distance, high-bandwidth transmission
• Duplex 2-fiber configuration supports full-duplex data communication
• 3mm LSZH jacket reduces smoke and halogen emissions in enclosed spaces
• SC APC connector on one end provides low back-reflection for sensitive optical links
• SC PC connector on the opposing end ensures compatibility with standard SC ports
• Physical Contact (PC) and Angled Physical Contact (APC) polishing for low insertion loss

Compatibility

Designed as an OEM-style replacement or new-installation patch cable for OS2 singlemode fiber infrastructure using SC-type connector ports on patch panels, transceivers, or optical network equipment.

Installation Notes

Installation should be performed by qualified low-voltage or structured cabling technicians following TIA-568 and ISO 11801 cabling standards. Inspect connector endfaces with a fiber inspection scope before mating and clean with appropriate fiber cleaning tools. Do not exceed the cable minimum bend radius during routing, and avoid pinching or kinking the jacket. Disconnect all active optical equipment before handling or connecting fiber patch cables.
