Panduit F623RSNSNSNM027 OM1 Duplex Sc Fiber Patch Cable

Product Description

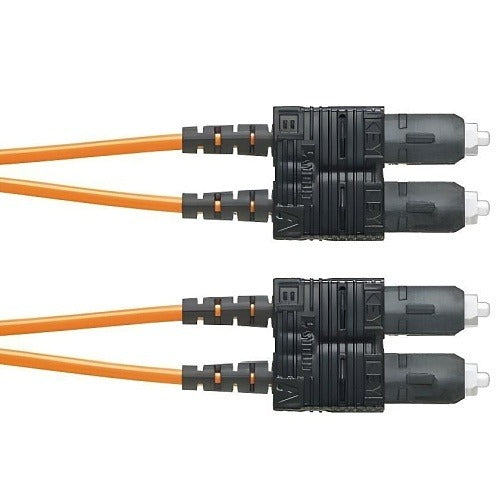

The PANDUIT F623RSNSNSNM027 is an OM1 multimode duplex fiber optic patch cable terminated with SC connectors on both ends. Built with a 3mm outer jacket diameter and a 2-fiber construction, this cable is designed for structured cabling installations in commercial and industrial environments. The PC (physical contact) polish on each connector minimizes back-reflection and insertion loss at the termination point. Network technicians and low-voltage cabling installers use this cable to interconnect fiber optic equipment in patch panels, switches, and active equipment ports.

This patch cable is suited for multimode fiber backbone and horizontal runs in data centers, server rooms, and commercial office cabling systems. The OFNR (optical fiber nonconductive riser) rating makes it appropriate for use in riser-rated vertical pathways between floors. SC duplex connectors are a standard interface widely used in enterprise networking and telecommunications equipment.

Key Features

• OM1 multimode fiber supports legacy and standard multimode fiber infrastructure
• SC duplex connectors on both ends for common enterprise and telecom port compatibility
• PC polish on connector ferrules reduces back-reflection at the interface
• 3mm jacket diameter provides added mechanical protection for patch cord applications
• OFNR jacket rating qualifies this cable for riser-rated vertical installations
• 2-fiber duplex construction supports simultaneous transmit and receive signal paths

Compatibility

Designed as a standard OM1 multimode SC duplex patch cable for use with SC-port fiber optic patch panels, transceivers, and switches in riser-rated cabling installations.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician or network infrastructure professional. Power down or disable the associated fiber optic transmitter ports before connecting or disconnecting the cable to avoid eye hazard from active laser sources. Keep protective dust caps on unused connectors to prevent contamination of the polished ferrule end-face. Follow TIA-568 and applicable local codes for fiber routing, bend radius minimums, and riser penetration firestopping requirements.
