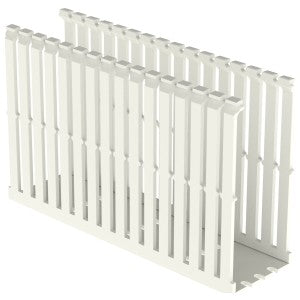

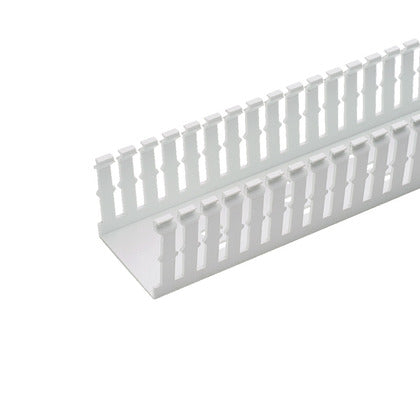

Panduit F2X5WH6 Narrow Slotted Wiring Duct 2 x 5 x 6ft

Product Description

The PANDUIT F2X5WH6 is a lead-free PVC narrow slot wiring duct featuring a design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. It has a UL 94 flame class of V-0 and includes mounting holes.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Upper and lower scorelines allow for easy finger/sidewall section removal
• UL 94 flame class of V-0

Product Highlights

Lead-free PVC narrow slot wiring duct with high-density component spacing, scorelines for easy removal, and UL 94 V-0 flame class.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F2X5WH6
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UPC: 07498337564
• UNSPSC: 39131712
• Brand: Panduct
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Connection Type: Standard Mounting Holes
• Material: PVC
• Type: Narrow Slot Wiring Duct
• Color: White
• Flammability Rating: UL94V-0
• Color Family: White
• Height: 5.1 in.
• Width: 2.25 in.
• Size: 2.00 x 5.00
• Slot Size: 5 mm
• Mounting Type: Standard
• TC Connection: Standard
• Sub Brand: Panduct
• 12-Digit UPC: 074983375646
• GTiN: 00074983375646
• Product UPC: 07498337564
• Depth: 2.25 in
• Length: 72 in
• Overall Length: 6 ft
• Thickness: 0.12 IN
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• Applications: Indoor
