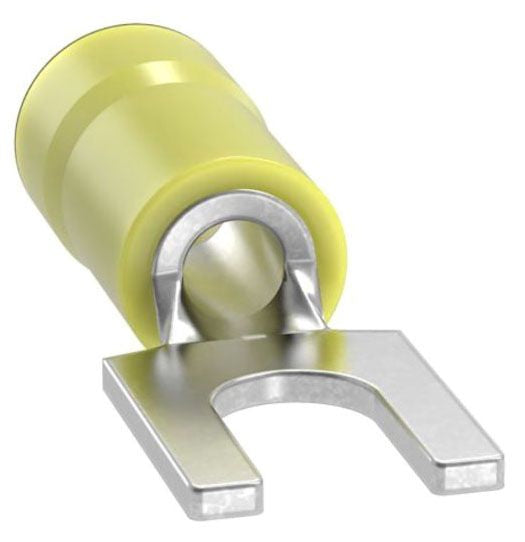

Panduit EV10-8FB-Q Insulated Vinyl Fork Terminal

Product Description

The PANDUIT EV10-8FB-Q is an insulated vinyl fork terminal connector used to terminate electrical conductors with a secure, spade-style mechanical connection. This type of terminal is a standard component in control panel wiring, equipment hookups, and general electrical termination work where a screw or stud connection point is required. The vinyl insulation sleeve provides a protective barrier over the barrel crimp, helping to prevent accidental contact and reducing the chance of short circuits in tight wiring spaces. It is installed by licensed electricians and qualified electrical tradespeople in both commercial and industrial applications.

Fork terminals of this style are commonly used in control panels, motor connections, appliance wiring, and field termination tasks where the conductor must be attached to a screw terminal block or binding post without fully removing the fastener. The insulated design makes this terminal well suited for environments where conductors are routed in close proximity and physical insulation of each termination point is required by code or good wiring practice.

Key Features

• Insulated vinyl sleeve protects the crimp barrel and reduces short-circuit risk
• Fork or spade tongue style allows installation and removal without fully removing the mounting fastener
• Designed for crimp termination using standard hand or ratchet crimping tools
• Suitable for control panel wiring, equipment connections, and general electrical termination

Compatibility

Designed as an OEM-style insulated fork terminal for use in standard electrical termination applications requiring a spade-style crimp connector.

Installation Notes

Installation should be performed by a licensed electrician or qualified electrical technician. De-energize and lock out the circuit before terminating any conductors in accordance with NFPA 70 (NEC) and applicable LOTO procedures. Use a calibrated crimp tool rated for the conductor gauge and terminal series to ensure a proper mechanical and electrical connection. Inspect the vinyl insulation sleeve after crimping to confirm it is intact and fully seated over the barrel.

Technical Specifications

• Terminal Type: Insulated Vinyl Fork (Spade)
• UPC: 07498328019

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: EV10-8FB-Q
