Panduit D-250A-C Pan-Term Disconnect Adapter (Pack of 100)

Product Description

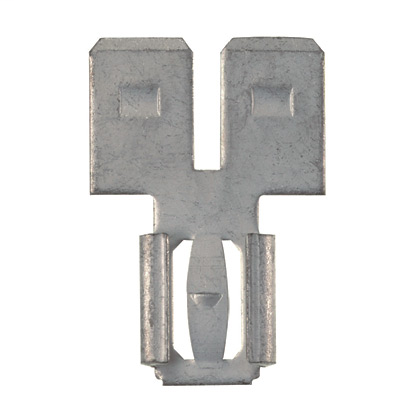

The PANDUIT D-250A-C Pan-Term disconnect adapter couples two female tabs to one male disconnect, all 0.250 x 0.032. Multiple connection points allow additional circuits to be added to existing equipment without expensive rework. The disconnect can be inserted and removed from the male tab without tools.

• Couples two female disconnects to one male disconnect (all 0.250 x 0.032)
• Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost

Product Highlights

Vibration-resistant adapter with a compact design and durable construction ensures secure and reliable connections for various electrical applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: D-250A-C
• Country of Origin: United States of America

Technical Specifications

• Disconnect Type: Disconnect Adapter
• Insulation Material: Non-Insulated
• Wire Strip Length (In.): 9/32
• Wire Strip Length (mm): 7.1
• Tab Size (In.): 0.250 x 0.032
• Tab Size (mm): 6.3 x 0.8
• Maximum Voltage (V): 2000
• Base Material: Brass
• Finish/Coating: Tin-Plated
• Maximum Operating Temperature ( C): 130
• Maximum Operating Temperature ( F): 266
• Sub Brand: Pan-Term
• Overall Length (In.): 0.82
• Overall Length (mm): 20.8
• Overall Width (In.): 0.57
• Overall Width (mm): 14.5
• Tongue Angle: Straight
• Product Type: Disconnect
• Maximum Voltage (kV): 2
• Manufacturer: Panduit Corp
• Manufacturer Part Number: Panduit D-250A-C
• Material: Brass
• Finish: Tinned
• Barrel Type: None
• Tab Size: .25 in, 6.3 mm
• SKU: PAND-250A-C
• Product Range: D-A Series
• Terminal Type: Quick Disconnect Adapter
• Tab Size - Metric: 6.35mm x 0.81mm
• Tab Size - Imperial: 0.25" x 0.032"
• Insulator Material: Uninsulated
• Terminal Material: Brass
• Category: Connectors, Interconnects
• Terminals: Terminal Adapters
• Insulation: Non-Insulated
• Features: Side by Side Male Terminals
• Contact Material: Brass
• Contact Finish: Tin
• Convert From (Adapter End): 0.25" (6.35mm) 1/4" Quick Connect, Male (2)
• Base Product Number: D-250
• Convert To (Adapter End): 0.25" (6.35mm) 1/4" Quick Connect, Female
• Max Operating Temperature: 130 degrees C
• Temperature Rating: 266 F
• Type: Disconnect
• Voltage: 2,000 Volt
• Wire Size: AWG
• Color Coding: Metallic
• Overall Length: 0.82 in
• Width: 0.57 in
• Height: 0.32 Inch
• Buy American Compliant: Y
