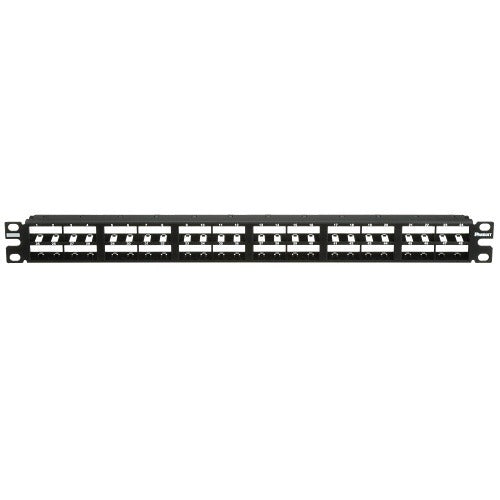

Panduit CPP48HDWBLY Modular Patch Panel 48 Port

Product Description

The PANDUIT CPP48HDWBLY is a 48-port modular patch panel designed for structured cabling installations in commercial and industrial network environments. It provides a central termination and management point for horizontal copper cabling runs, allowing technicians to organize, label, and cross-connect network drops with standard patch cords. The modular design accepts field-installable keystone jacks, giving installers flexibility to configure port types to match the cabling system in use. This panel is suited for installation in standard 19-inch equipment racks and enclosures by licensed low-voltage cabling contractors or network infrastructure technicians.

This patch panel is used in structured cabling systems supporting data, voice, and other network services in commercial office builds, data closets, and equipment rooms. The 48-port capacity allows high-density termination in a single rack unit or multi-unit configuration, reducing the number of panels required in medium to large installations. It is a common component in horizontal cabling systems that follow TIA-568 structured cabling standards.

Key Features

• 48 modular ports accommodate field-installable keystone jacks for flexible configuration
• High-density design supports up to 48 individual copper cabling terminations per panel
• Compatible with standard 19-inch equipment racks and telecommunications enclosures
• Modular port construction allows mixed media or category configurations within a single panel
• Designed for use in structured cabling systems serving data and voice applications

Compatibility

Designed as an OEM-style modular patch panel for use in standard 19-inch rack-mount structured cabling installations supporting field-installable keystone jack modules.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with TIA-568 structured cabling standards. De-energize or disconnect active patch cords and network equipment before servicing the panel or inserting and removing keystone modules. Secure the panel to the rack using appropriate rack screws and cage nuts before terminating cabling runs. Follow local building codes and manufacturer guidelines for cable management and bend radius requirements.
