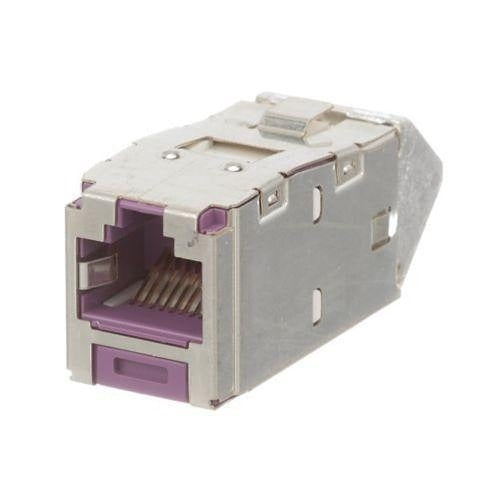

Panduit CJSUD6X88TGVLY Cat 6a Up Down Jack

Product Description

The PANDUIT CJSUD6X88TGVLY is a Mini-Com Cat 6a up/down jack designed for structured cabling installations in commercial and industrial environments. This low-profile keystone-style jack supports Category 6a performance standards, making it suitable for high-speed data networks operating at frequencies up to 500 MHz. Licensed low-voltage technicians and network infrastructure installers typically handle this component during patch panel builds, wall plate assemblies, and modular furniture wiring projects. Its up/down orientation provides flexibility when routing cable in tight or directionally constrained mounting locations.

This jack is intended for use in structured cabling systems where Cat 6a performance is required, such as data centers, office networks, and campus installations. It fits into PANDUIT Mini-Com modular faceplates, patch panels, and surface-mount boxes that accept standard Mini-Com module inserts. The up/down termination angle helps manage cable bend radius in installations where horizontal or vertical cable entry must be controlled. Installers working in high-density environments will find the directional entry useful for maintaining organized cable pathways.

Key Features

• Cat 6a performance supporting high-speed network infrastructure
• Up/down jack orientation for flexible cable routing in constrained spaces
• Mini-Com modular format compatible with PANDUIT Mini-Com faceplates and panels
• Single-unit packaging for precise inventory and project quantity control
• Suited for both horizontal and vertical structured cabling runs

Compatibility

Designed as an OEM-style replacement and standard install component for PANDUIT Mini-Com modular faceplate systems and patch panels that accept Mini-Com module inserts.

Installation Notes

Installation should be performed by a qualified low-voltage technician familiar with TIA-568 structured cabling standards. De-energize any adjacent active equipment and follow proper ESD precautions before handling the jack. Use a punch-down tool appropriate for the jack termination type and confirm cable jacket and conductor preparation meet Cat 6a bend radius and untwist requirements. Verify the Mini-Com host faceplate or panel is securely mounted before seating the module.
