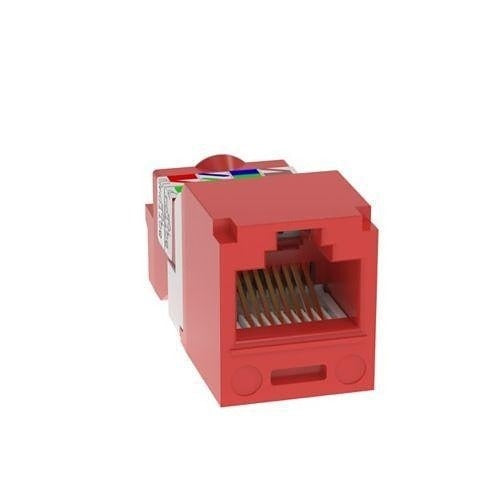

Panduit CJ5E88TRD Mini-com Module Cat 5e Utp

Product Description

The PANDUIT CJ5E88TRD is a Mini-Com keystone jack module rated for Category 5e UTP (unshielded twisted pair) structured cabling. It is designed to terminate horizontal cable runs at the work area outlet, patch panel, or surface-mount housing. This module snaps into any standard Mini-Com faceplate, surface box, or patch panel that accepts Mini-Com inserts. Network technicians and low-voltage installers use this jack to build or extend structured cabling systems in commercial and residential environments where Cat 5e performance is required.

This module is suited for horizontal cabling runs in office, commercial, or light industrial environments. Typical installations include workstation drops, conference room data outlets, and patch panel builds. It supports standard 10/100/1000 Ethernet applications within a Cat 5e infrastructure. The Mini-Com form factor allows installers to mix and match jacks, inserts, and blank inserts within the same faceplate system, providing flexibility during new construction and retrofit projects.

Key Features

• Category 5e rated for data and voice structured cabling applications
• UTP (unshielded twisted pair) termination for standard horizontal cabling
• Mini-Com form factor snaps into compatible PANDUIT faceplates, surface boxes, and patch panels
• Sold individually, allowing precise quantity ordering for any project size
• Compact keystone design suitable for high-density installations

Compatibility

Designed as an OEM-style replacement and standard-fit insert for structured cabling assemblies using the PANDUIT Mini-Com system platform, compatible with Mini-Com faceplates, patch panels, and surface-mount housings that accept Mini-Com keystone modules.

Installation Notes

Installation should be performed by a licensed low-voltage technician or qualified network cabling installer following TIA-568 cabling standards. De-energize any active patch panel ports before handling adjacent jacks. Use a 110-style punch-down tool to terminate the horizontal cable conductors to the IDC contacts on the jack. Avoid untwisting cable pairs more than 0.5 inches at the termination point to maintain Cat 5e performance.
