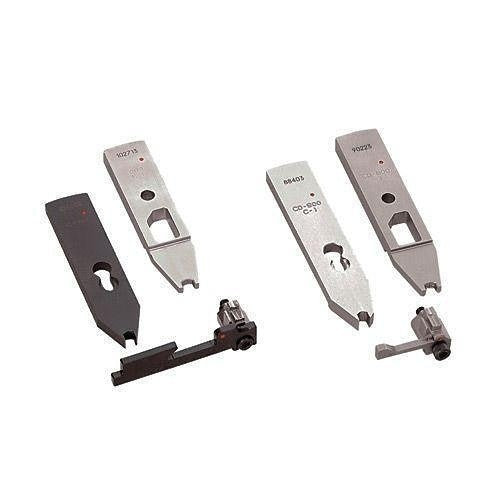

Panduit CD9-16A Die Insert for CA9 Crimping Tool

Product Description

The PANDUIT CD9-16A is a die insert designed for use with the CA9 crimping tool. Die inserts are precision-machined components that fit into the head of a compatible crimping tool to form the correct crimp geometry for a specific conductor size or terminal type. This insert allows the CA9 tool to produce consistent, repeatable crimps on the appropriate wire range. Electricians and wire harness technicians working on termination and connector installations typically install and swap die inserts as part of routine tool maintenance and setup.

The CD9-16A is suited for electrical termination work in commercial and industrial environments where the CA9 crimping tool is in service. It is sold as a single unit and is intended as either an original replacement die or an additional insert to expand the crimping capability of the CA9 platform. Proper die selection is critical to achieving the mechanical and electrical integrity required by applicable wiring standards.

Key Features

• Designed specifically for use with the PANDUIT CA9 crimping tool
• Provides consistent crimp geometry for reliable electrical terminations
• Sold as a single unit (EA) for straightforward replacement or stock
• Manufactured to OEM specifications for the CA9 tool platform

Compatibility

Designed for use with the PANDUIT CA9 crimping tool as stated by the manufacturer.

Installation Notes

Die insert installation and removal should be performed by a qualified electrician or trained technician familiar with the CA9 tool. Ensure the crimping tool is not under load and is clear of any conductors before swapping die inserts. Consult the CA9 tool documentation for the correct procedure to seat and lock the insert securely before use. Verify that the die insert is fully engaged prior to performing any crimp operation.
