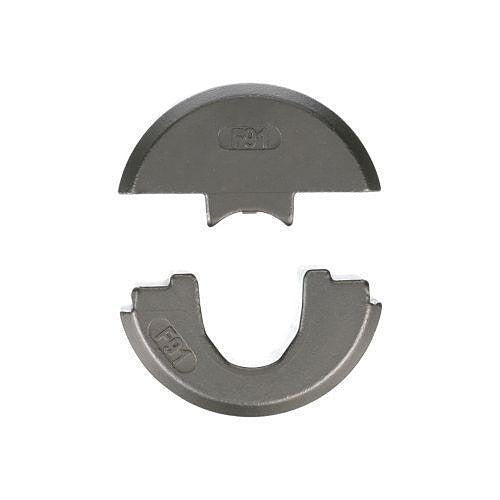

Panduit CD-920-F92 Large Ferrule Die Insert 920

Product Description

The PANDUIT CD-920-F92 is a large ferrule die insert designed for use with compatible 920 series crimping tools. Die inserts allow technicians to swap crimp profiles quickly without replacing the entire tool head, making them a standard part of high-volume wire termination work. This insert is built for large ferrule applications, which typically involve larger-gauge conductors requiring precise, consistent crimp geometry. Electricians and panel wiring technicians working on control cabinets, terminal blocks, and industrial wiring assemblies rely on properly sized die inserts to ensure secure, code-compliant terminations.

This die insert is suited for commercial and industrial electrical work where ferrule-terminated wire ends are required by specification or installation standard. Typical applications include DIN rail control panels, PLC wiring, and multi-conductor cable terminations where stripped wire ends must be protected and mechanically secured before insertion into terminal blocks. The CD-920-F92 is sold as a single unit and is intended for use by licensed electricians and experienced industrial wiring technicians.

Key Features

• Designed for large ferrule crimping applications requiring precise die geometry
• Compatible with 920 series PANDUIT crimping tool platforms
• Interchangeable die insert design allows quick swap between ferrule sizes
• Supports consistent, repeatable crimp results for high-volume termination work
• Sold as a single insert unit for targeted replacement or fleet expansion

Compatibility

Designed as an OEM-style die insert for use with PANDUIT 920 series crimping tools. Consult the tool manufacturer documentation to confirm fitment before ordering.

Installation Notes

Die insert replacement should be performed with the crimping tool unloaded and away from energized conductors. Follow the tool manufacturer instructions for insert seating and locking to ensure the die is fully engaged before crimping. Installation and use should comply with applicable NEC requirements for ferrule-terminated conductors. Only trained electricians or qualified technicians should perform wire termination operations in energized panel environments.
