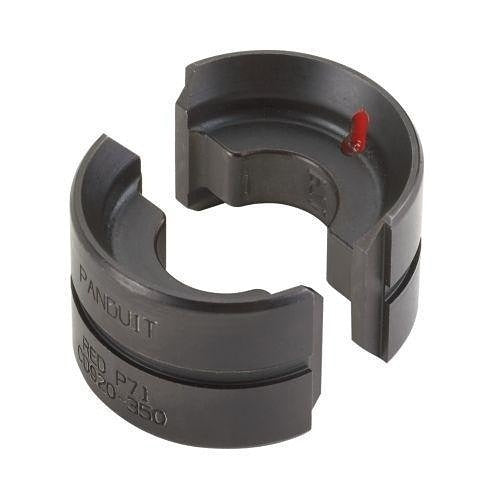

Panduit CD-920-4 Crimp Die CT-920 CT-930 Size 4

Product Description

The PANDUIT CD-920-4 is a replacement crimp die designed for use with Panduit CT-920 and CT-930 crimping tools. It provides the sized crimping geometry required to produce consistent, reliable terminations on connectors and terminals at size 4. Crimp dies are precision-machined inserts that mount directly into the tool head, defining the final crimp profile applied to the terminal. Electrical contractors and wire harness technicians rely on properly matched dies to meet manufacturer crimp specifications and ensure conductivity and pull-force performance at each termination point.

The CD-920-4 is suited for electrical and low-voltage wiring applications where the CT-920 or CT-930 tool is already in service. Typical install scenarios include panel wiring, control cabinet terminations, and field connector assembly in commercial and industrial electrical work. The size 4 designation matches this die to the specific connector or terminal series it is engineered to crimp, making it a direct service replacement when an existing die wears or is lost.

Key Features

• Engineered for direct compatibility with Panduit CT-920 and CT-930 crimping tools
• Size 4 crimp geometry for consistent, repeatable terminal forming
• Sold individually as a single replacement unit
• Designed for professional electrical and low-voltage termination work

Compatibility

Designed for use with the Panduit CT-920 and CT-930 crimping tools at size 4. Confirm tool model and required die size before ordering to ensure proper fitment.

Installation Notes

Installation of crimp dies is performed by licensed electricians or qualified wire termination technicians. De-energize all circuits and disconnect power to any associated equipment before performing terminations. Follow the CT-920 or CT-930 tool manufacturer instructions for die installation and removal, as improper seating can affect crimp quality. Verify die size matches the connector or terminal series being crimped before use.
