Product Description

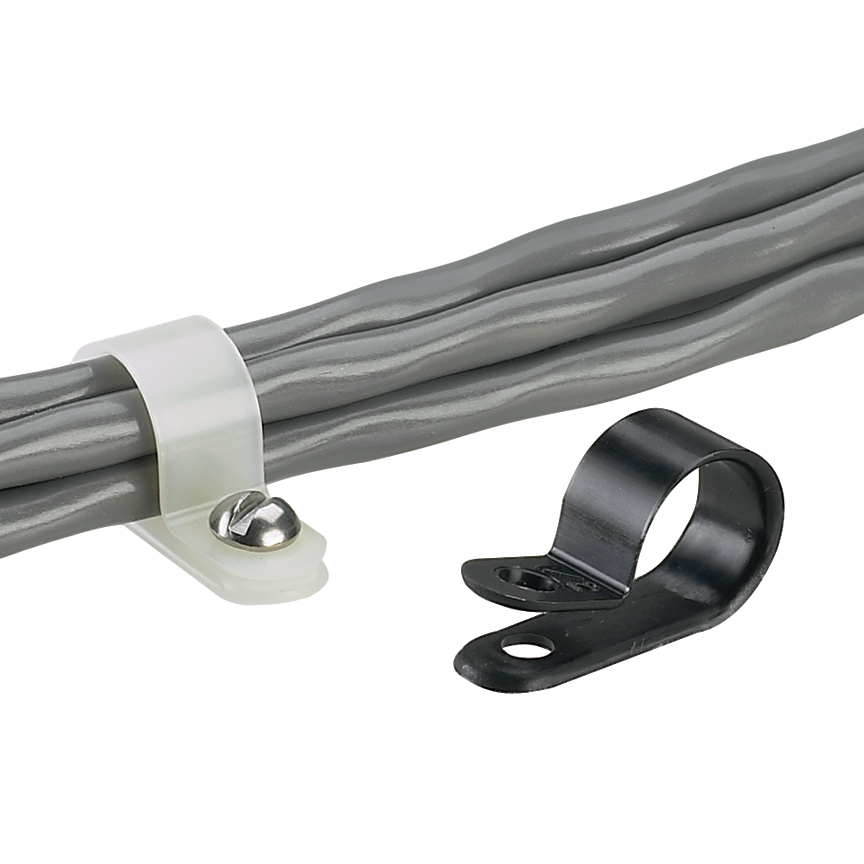

The PANDUIT CCS31-S8-C is a cable clip, P-Type natural fastener with an opening size of 0.310" (7.87mm). This cable clamp is designed for securing wires and cables via fixed diameter clamping. Made of nylon 6.6, it is suitable for indoor environments. UL Recognized E136577 standards.
- Easy Hand Installation With Low Insertion Force and Economical Assembly For a Wide Variety of Applications
- One-Piece Design Significantly Reduces Installation Time and Provides the Lowest Installed Cost
- Prevents Rotation of Wire Bundles and Ensures Secure Grip on Hoses With Integrated Ribs
Product Highlights
The PANDUIT CCS31-S8-C cable clip is easy to install and provides a secure grip for cable management in various environments.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: CCS31-S8-C
-
Country of Origin: US - United States
Technical Specifications
-
Category: Cables, Wires - Management, Cable Supports and Fasteners
-
Color: Natural
-
Manufacturer: Panduit Corp
-
Width: 0.370" (9.40mm)
-
Packaging: 100
-
Panel Hole Size: 0.167" (4.24mm)
-
Part Status: Active
-
Material Thickness: 0.050" (1.27mm)
-
Type: Clip, P-Type
-
Material Flammability Rating: UL94 V-2
-
Opening Size: 0.310" (7.87mm)
-
Screw Size: #8 (M4)
-
Mounting Type: Screw
-
Bundle Center to Mounting Center: 0.490" (12.45mm)
-
Material: Nylon 6.6
-
Base Product Number: CCS31
-
UNSPSC Code: 26120000
-
Application: For securing wires and cables via fixed diameter clamping
-
Brand: PANDUIT
-
Bundle Diameter: 0.31 in.
-
Dimensions: 0.31 in H X 0.49 in L
-
Inner Diameter: 0.31 in
-
Manufacturer Part Number: CCS31-S8-C
-
Maximum Operating Temperature: 185 °F
-
Primary Type: Cable Clamp
-
Product Type: Cable Clamps & Cable Clips
-
Series: CCS Series
-
Cable Clamp / Clip Type: Screw Mount Cable Clamp
-
Internal Diameter: 7.9mm
-
Cable Clamp / Clip Material: Nylon 6.6 (Polyamide 6.6)
-
Cable Clamp / Clip Colour: Natural
-
External Width: 9.4mm
-
Product Range: None
-
SVHC: No SVHC (04-Feb-2026)
-
External Length: None
-
Height: 0.41"
-
Length: 0.695 in.
-
Standard: UL Recognized E136577, RoHS Compliant
-
ECCN: EAR99
-
Color Family: Natural
-
Flange Thickness: 1/8 in.
-
Max. Temperature Rating: 185
