Panduit CB70-14-CY Mechanical Cable Lug Copper

Product Description

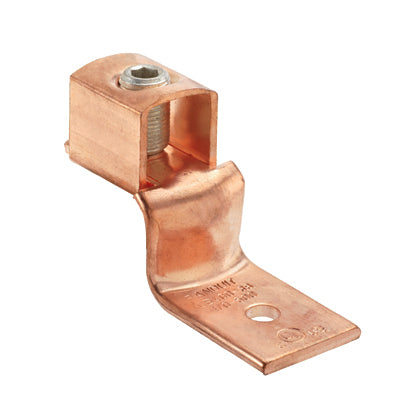

Panduit offers the CB70-14-CY, a mechanical cable lug designed for stranded copper conductors. This product is made from high strength electrolytic copper. It caters to a wire range from #12 to #2 with a single bolt hole size of one-quarter inch. This lug features a one-hole, offset tongue design that helps maintain a secure connection.

• Wide wire range minimizes inventory needs.
• Inspection window ensures full conductor insertion.
• Durable plated steel set screw provides lasting electrical contact.

Product Highlights

This mechanical lug is UL Listed and CSA Certified for applications up to six hundred volts. The pressure bar and V-collar design promote uniform clamping force for optimal connectivity.

Product Information

Standard Information

• Manufacturer: Panduit
• Item Type: Mechanical Lug

Technical Specifications

• Conductor Size: #12 - #2
• Material: Copper
• Bolt Hole: 1/4 inch
• Temperature Rating: 90°C
• Voltage Rating: 600 VAC
• Specifications: cULus Listed, RoHS Compliant
