Product Description

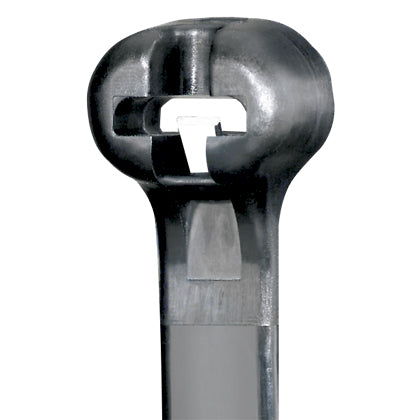

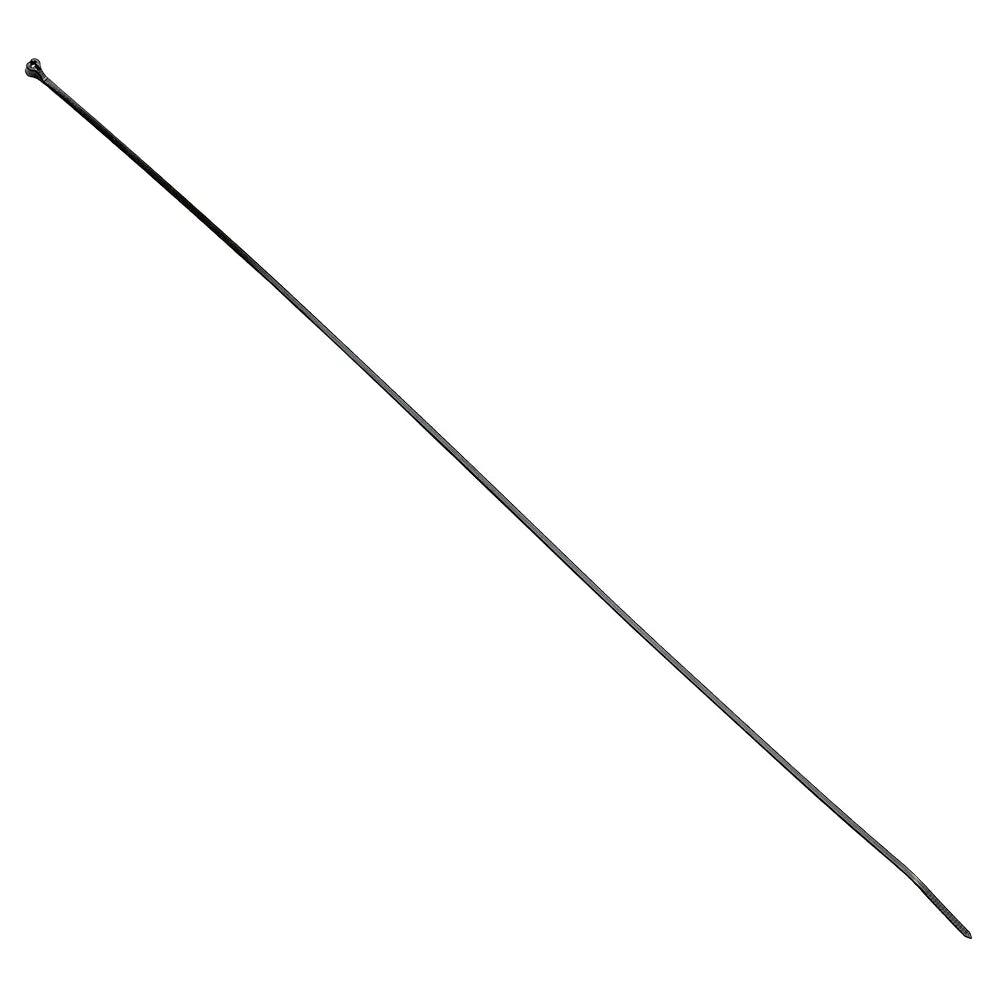

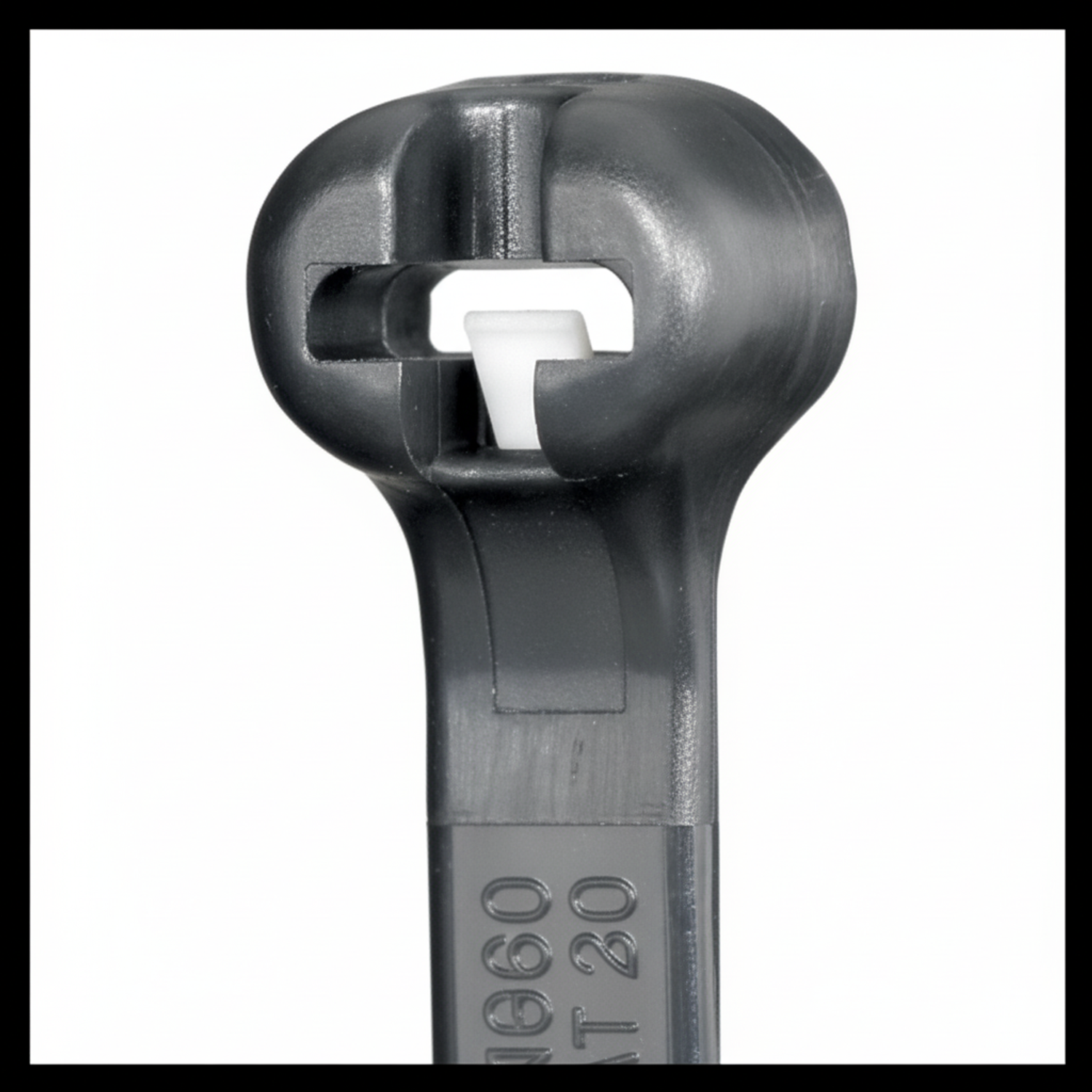

The Panduit BT4M-M0 Dome-Top® barb ty cable tie features a miniature cross section and is 14.2 inches (361mm) in length. Constructed of weather-resistant nylon 6.6, it is black and comes in a bulk package. These cable ties are suitable for various cable management applications.
- Miniature cross section
- Weather resistant nylon 6.6
- Continuous use temperature range: -76°F (-60°C) - 185°F (85°C)
- UL Listed (File #E56854)
Product Highlights
The Panduit BT4M-M0 cable tie is durable and weather resistant, ideal for securing cables in a range of environments.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: BT4M-M0
-
Country of Origin: Costa Rica
Technical Specifications
-
Minimum Loop Tensile Strength: 18 lbs
-
Thickness: 0.05"
-
Width: 0.09"
-
Bundle Diameter Min: 0.06"
-
Bundle Diameter Max: 4"
-
Color: Black
-
Qty/Bag: 1000
-
Material: Nylon 6.6
-
CE Compliant: Yes
-
CSA Certified: Yes
-
UL 62275 Compliant (Type 2, 21): Yes
-
UL Listed (File #E56854): Yes
-
UL Recognized (File #E56854): No
-
Continuous Use Temperature Range: -76°F (-60°C) - 185°F (85°C)
-
Max. Continuous Use Temperature: 185°F (85°C)
-
Length - Actual: 1.183' (360.68mm)
-
Manufacturer: Panduit Corp
-
Mounting Type: Free Hanging (In-Line)
-
Series: DOME-TOP AE BARB-TY AE BT
-
Tensile Strength: 18 lbs (8.16 kg)
-
Packaging: Bulk
-
Features: Weather Resistant
-
Part Status: Active
-
Wire/Cable Tie Type: Standard, Locking
-
Length - Approximate: 14.25"
-
Bundle Diameter: 4.00" (101.60mm)
-
Base Product Number: BT4M
-
RoHS Status: ROHS3 Compliant
-
ECCN: EAR99
-
Moisture Sensitivity Level (MSL): Not Applicable
-
REACH Status: REACH Unaffected
-
Standard: UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant
-
Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
-
Nominal Length: 14.2 in.
-
Max. Temperature Rating: 185°F
-
Type: Cable Ties
-
MPN: BT4M-M0
-
UPC: 074983602773
-
Country of Origin: United States
