PANDUIT Panduit BT1M-M Cable Tie 4 inches
PANDUIT Panduit BT1M-M Cable Tie 4 inches

Panduit BT1M-M Cable Tie 4 inches

Brand: PANDUIT
SKU: BT1M-M
Availability: In Stock

Ships same day if ordered by 12 pm

$59.92
$59.92
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

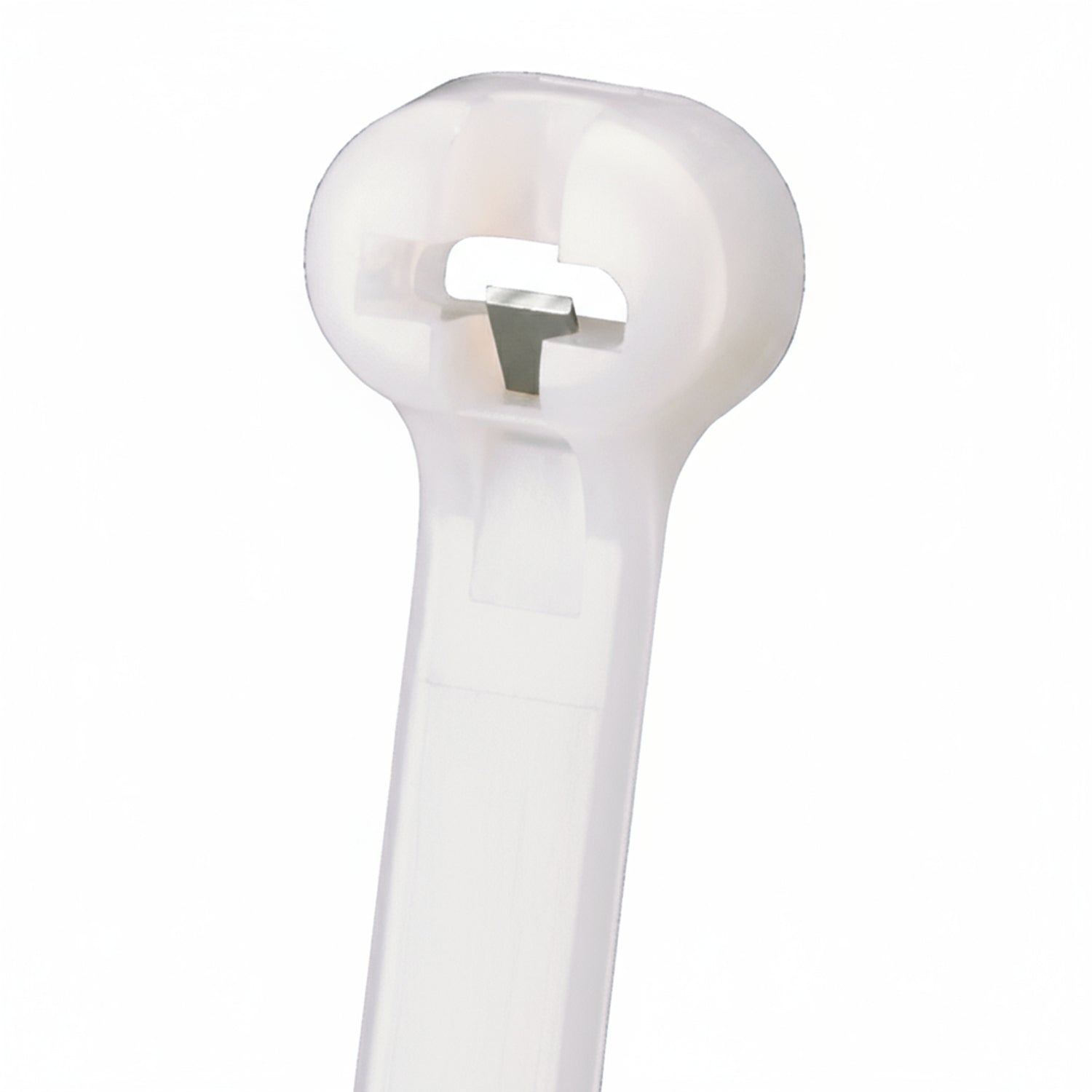

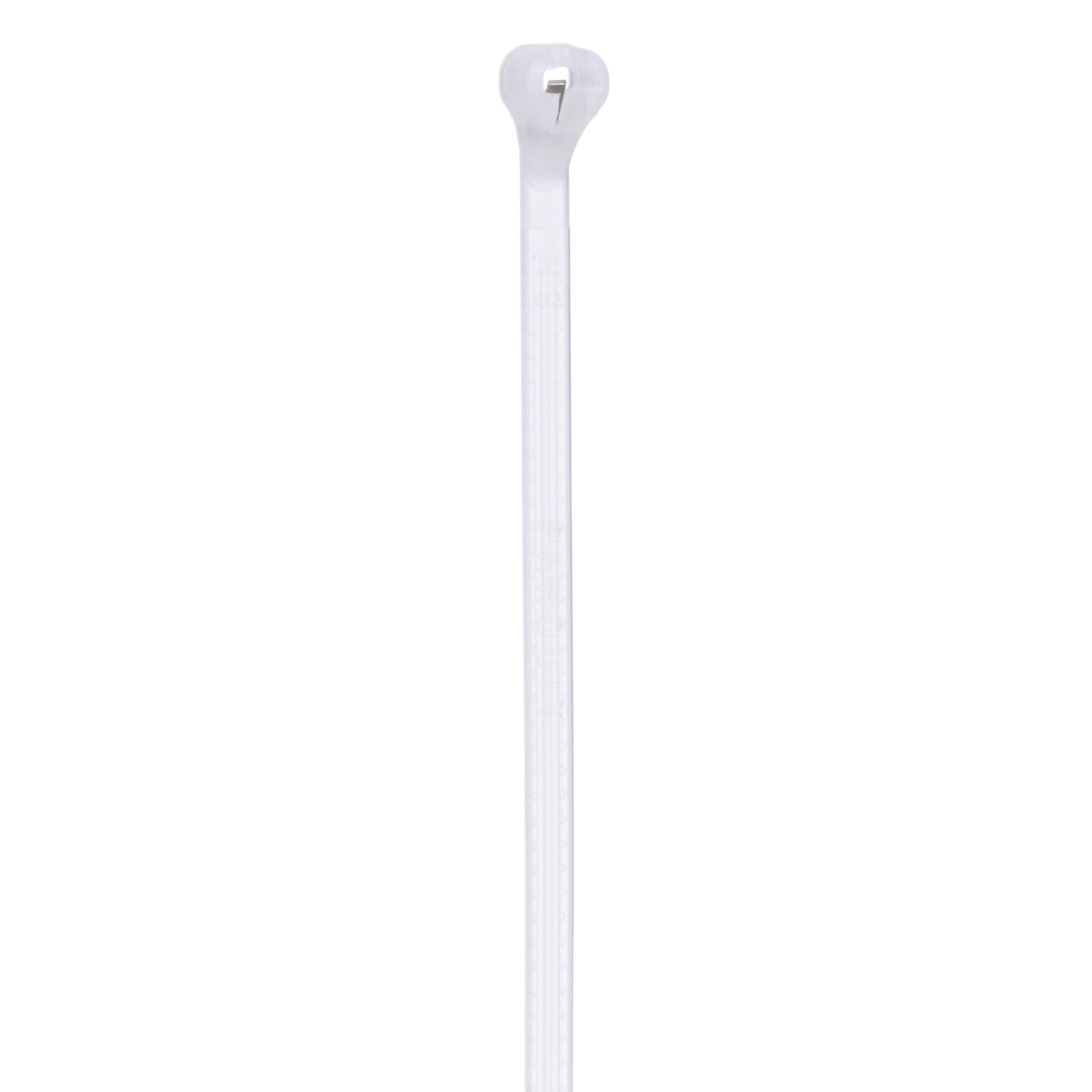

The PANDUIT BT1M-M cable tie is designed for securing cables with ease. Measuring 4.0 inches (102mm) in length, this durable tie is crafted from natural nylon 6.6 for reliable performance. It has a tensile strength of 18 lb (80.06 N) and can accommodate bundle diameters ranging from 0.06 inches (1.5 mm) to 0.9 inches (22.9 mm).

  • Standard, Locking
  • 4.0 (102mm) length
  • Nylon 6.6

Product Highlights

This essential wire and cable management product is ideal for various applications.

Product Information

Standard Information

  • Brand: PANDUIT
  • Manufacturer Part Number: BT1M-M
  • Country of Origin: Costa Rica
Technical Specifications
Category
Cables, Wires - Management, Cable Ties and Zip Ties
Length - Actual
0.333' (101.60mm, 4.00")
Manufacturer
Panduit Corp
Mounting Type
Free Hanging (In-Line)
Series
DOME-TOP BARB-TY BT
Tensile Strength
18 lbs (8.16 kg)
Material
Polyamide (PA66), Nylon 6/6
Part Status
Active
Wire/Cable Tie Type
Standard, Locking
Length - Approximate
4"
Bundle Diameter
0.90" (22.86mm)
Base Product Number
BT1M
Width
0.095" (2.41mm)
Length
4" (102 mm)
Max. Bundle Diam
0.9" (23 mm)
Product Category
Cable Ties & Cable Tie Mounts
Cable Ties
Cable Ties
Manufacturer Part Number
Panduit BT1M-M
Maximum Operating Temperature
185 . 185 degrees F
Min Operating Temperature
-60 degrees C
Standard
CSA,E2186,UL
Temperature Rating
-60 to 185 degrees F
Type
Standard Cross Section, Internal Toothing, Locking
Sub Brand
Dome-Top
Environment Application
Plenum
Environment
Indoor
Environmental Conditions
Indoor
Applications
For Indoor Application
Standards Met
UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
Prop 65
No
Body Thickness
0.036 in
Body Width
0.095 in
