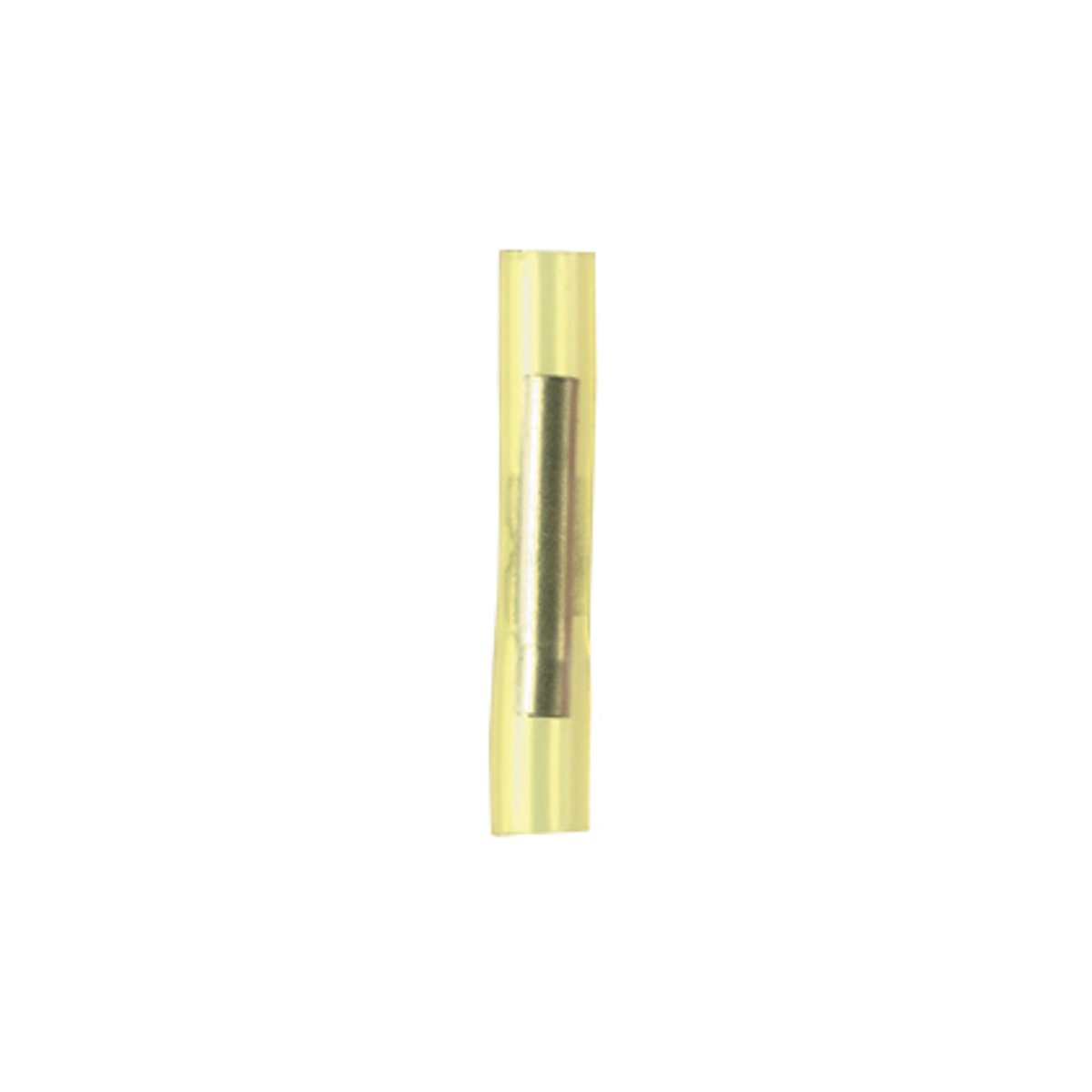

Panduit BSN22-C Pan-Term Butt Splice 22-26 AWG

Product Description

The Panduit BSN22-C is a nylon insulated butt splice designed for fast assembly and reliable performance. This Pan-Term splice is suitable for splicing solid or stranded wires together to repair or lengthen wires. It is tin plated to inhibit corrosion and features an internally beveled wire entry for easy installation.

• Tin plated to inhibit corrosion
• Product information marked on connector for selection and installation
• Internally beveled wire entry for fast and easy installation

Product Highlights

The Panduit BSN22-C butt splice ensures proper insertion length for a quality connection with its internal wire stop.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BSN22-C
• Country of Origin: Japan

Technical Specifications

• Catalog Number: BSN22-C
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Japan
• Made in USA: No
• Color: Yellow
• Connection: Standard
• Finish: Tin-Plated
• Insulation: Nylon
• Material: Copper/Nylon
• Item Type: Butt Splice
• Temperature Rating: 221 Degrees Fahrenheit (105 Degrees Celsius)
• Voltage Rating: 600
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 2
• Termination: Crimp
• Series: BSN
• Wire Gauge: 22-26 AWG
• Packaging: Bulk
• Part Status: Obsolete
• Terminal Type: Butt Splice, Inline, Individual Openings
• Length: 0.79
• Application: For limited space applications
• Barrel Type: Brazed Seam/Standard
• Conductor Size: 26 to 22
• Type: Loose Piece Standard
• Conductor Type: Solid/Stranded
• Specifications: 1/4 in L Wire Strip, 0.08 in Dia Maximum Nylon Insulation
• Allowable Gauge Range: 26 - 22
• MPN: BSN22-C
