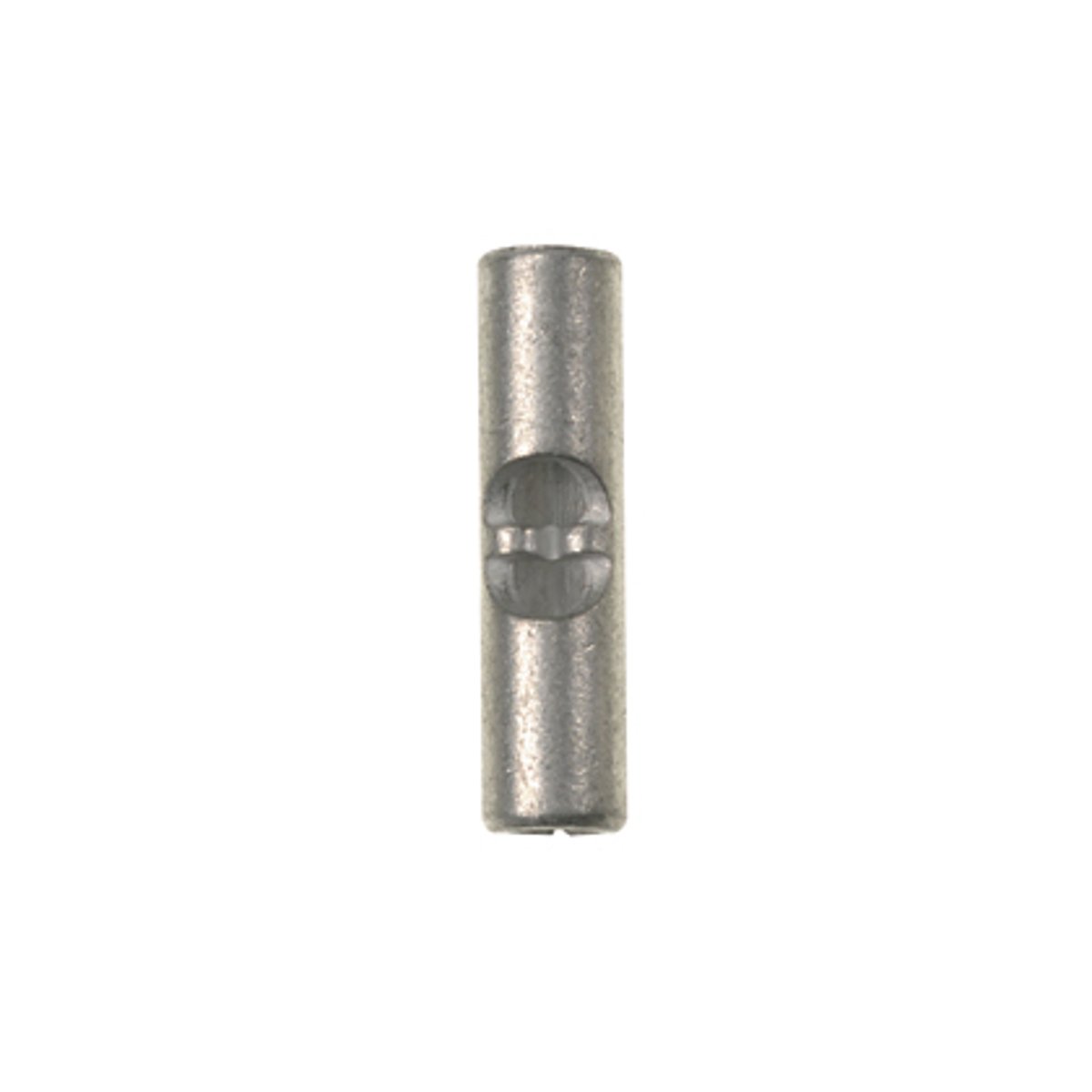

Panduit BS18-C Pan-Term Butt Splice

Product Description

The Panduit BS18-C is a non-insulated butt splice designed for inline connections. This Pan-Term series connector features a brazed seam and serrated mating area. It is suitable for crimp termination of 22 AWG to 18 AWG wires in standard packages.

• Brazed Seam
• Serrated Mating Area
• Compatible with 22-18 AWG wire

Product Highlights

The Panduit BS18-C butt splice ensures secure wire connections with its durable construction and easy installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BS18-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BS18-C
• Manufacturer: Panduit Corp
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Color: Copper
• Conductor Range: 22 AWG - 18 AWG AWG
• Connection: Standard
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• Standard: C22.2 No 65
• UPC: 074983832002
• GTIN: 00074983832002
• Item Type: Butt Splice
• Size: 22 - 18
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 2
• Termination: Crimp
• Series: Pan-Term
• Wire Gauge: 18-22 AWG
• Packaging: Bulk
• Part Status: Active
• Features: Brazed Seam, Serrated Mating Area
• Terminal Type: Butt Splice, Inline, Individual Openings
• Base Product Number: BS18
• Compatible Wire Gauge (AWG): 18-22 AWG
• MPN: BS18-C
• Contact Material: Copper
• Wire Connector Type: Butt Splice
• Number of Positions: 1
• Current Rating: 13 A
• Connector Type: Butt Splice Connector
• Packaged Quantity: 100
• Product Model: BS18-C
• Product Name: Butt Splice
• Product Type: Wire Splice
• Environmentally Friendly: Yes
