Panduit BS14-M Pan-Term Butt Splice 16-14

Product Description

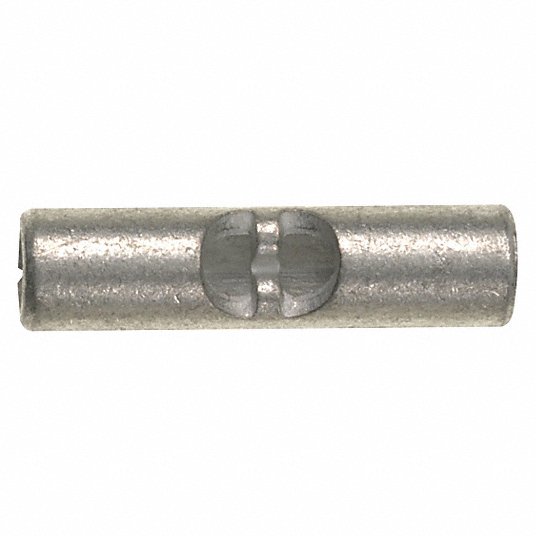

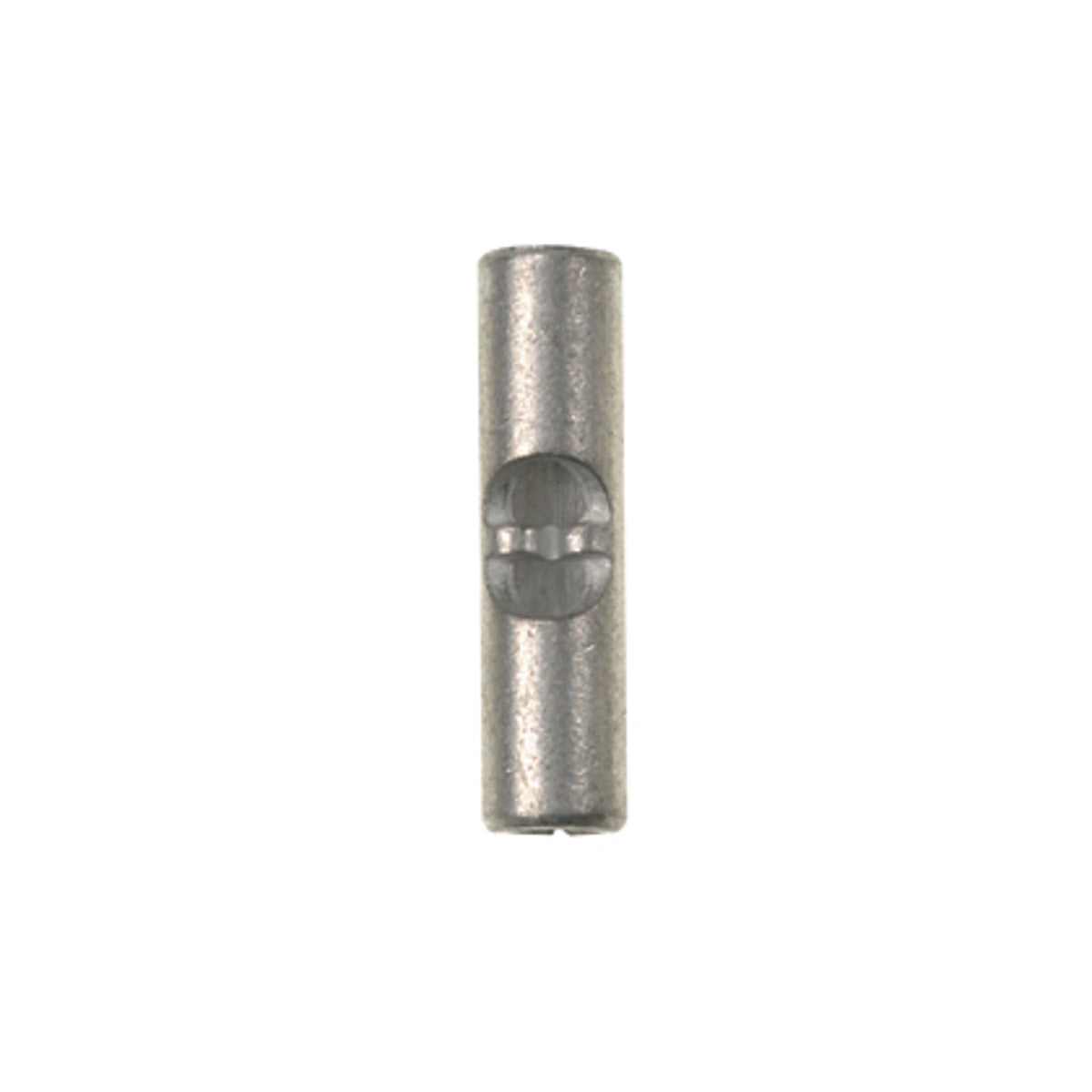

The Panduit BS14-M is a non-insulated butt splice designed to splice solid or stranded wires together to repair or lengthen wires. These Pan-Term butt splices feature a butted configuration that provides a low profile for limited space applications. The internal wire stop assures proper length of insertion into the terminal barrel.

• Designed to splice two solid or stranded wires together to repair or lengthen wires
• Butted configuration provides low profile for limited space applications
• Internal wire stop assures proper length of insertion into terminal barrel

Product Highlights

The BS14-M butt splice provides an economical termination for wire splicing and repair, especially in space-constrained environments.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BS14-M
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BS14-M
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Conductor Range: 16 AWG - 14 AWG AWG
• Connection: Standard
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• Standard: C22.2 No 65
• UPC: 074983832033
• GTIN: 00074983832033
• Item Type: Butt Splice
• Size: 16 - 14
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Voltage Rating: 2
• Wire Gauge: 16-14 AWG
• Terminal Type: Butt Splice, Inline
• Number of Wire Entries: 2
• Packaging: Bulk
• Part Status: Active
• Product Range: BS Series
• Also Known As: GTIN UPC EAN: 07498383203
• Insulator Material: Uninsulated
• SVHC: No SVHC (04-Feb-2026)
• Wire Size AWG Min: 16AWG
• Wire Size AWG Max: 14AWG
• Conductor Area CSA: 2.5mm²
• Barrel ID: 0.096 in
• Barrel OD: 0.16 in
• Body Finish: Tin Plated
• Body Material: Copper
• Contact Finish: Tin
• Contact Material: Copper
• Package Qty: 1,000
• Display Sell UOM: PK
• For Wire Type: Stranded
• Insulation Color: Bare
• Maximum Operating Temperature: 302 °F
• Maximum Voltage: 2,000 V
• Number of Splices: 2
• Overall Length: 0.62 in
• Overall Width: 0.16 in
• Seam Style: Brazed
• Standards: CSA C22.2 No. 65; UL 486C
• Strip Length: 1/4 in
• Termination Style: Crimp
