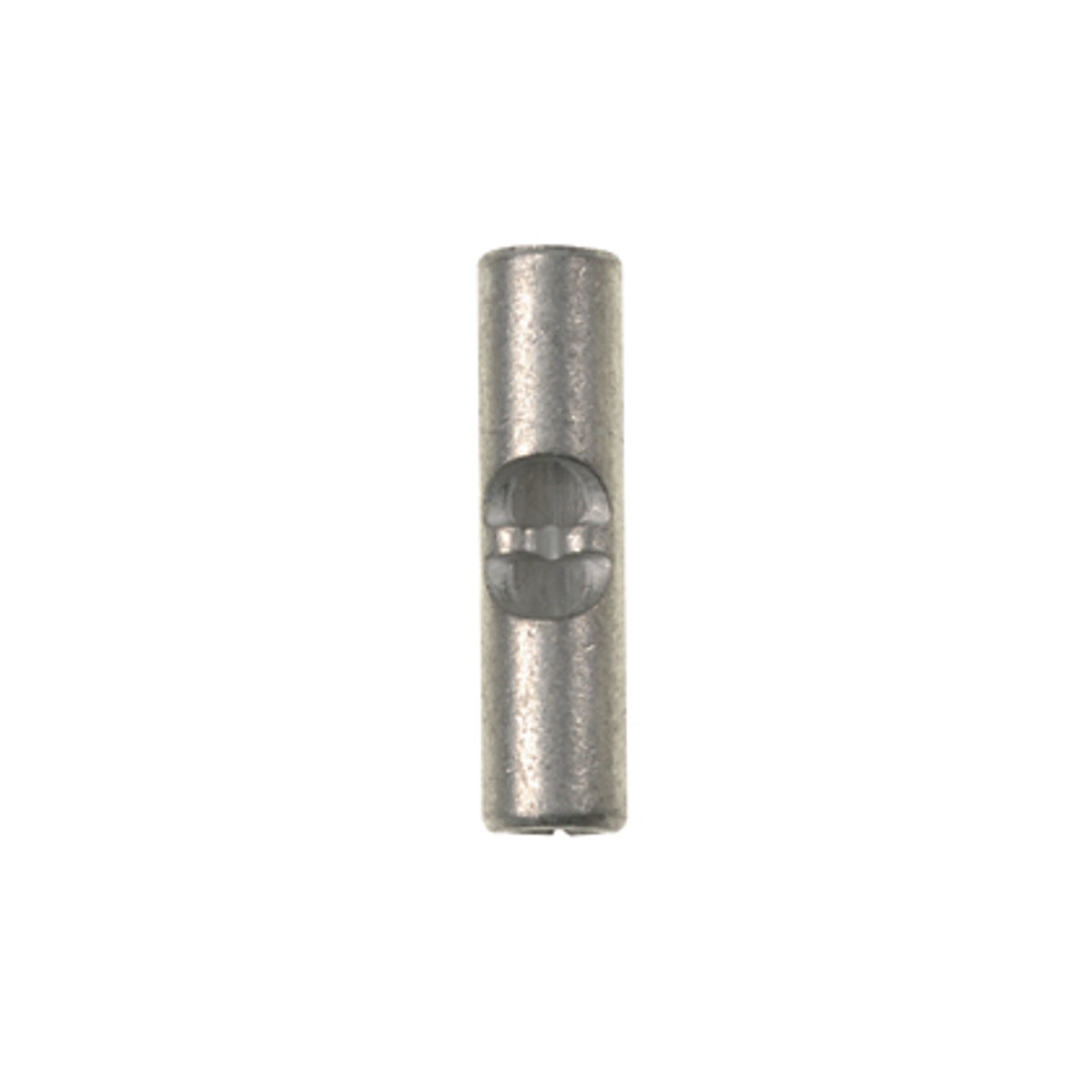

Panduit BS14-C Pan-Term Butt Splice

Product Description

The Panduit BS14-C Pan-Term Butt Splice is a non-insulated butt splice designed for solid or stranded conductors. Constructed from copper with a tin-plated finish to inhibit corrosion. This butt splice is suitable for limited space applications. Accommodates wire sizes from 16 to 14 AWG.

• Tin plated to inhibit corrosion
• Product information marked on connector for selection and installation
• Internally beveled wire entry for fast and easy installation

Product Highlights

The BS14-C butt splice features a brazed seam and internal wire stops to ensure proper insertion length.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: BS14-C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BS14-C
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Mexico
• Made in USA: No
• Conductor Range: 16 AWG - 14 AWG AWG
• Connection: Standard
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• Standard: C22.2 No 65
• UPC: 074983832026
• GTIN: 00074983832026
• Item Type: Butt Splice
• Size: 16 - 14
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Voltage Rating: 2000 VAC
• Application: For limited space applications
• Barrel Size: 0.16 in OD
• Conductor Size: 16 to 14 AWG
• Conductor Type: Solid/Stranded
• Length: 0.62 in
• Series: BS Series
• Standards/Approvals: ARRA Compliant|CSA C22.2 File No. 65 File No. LR31212|RoHS Compliant|UL 486C|UL 587H File No. E52164|Buy American Act Compliant
• Type: Metallic Loose Piece Non-Insulated
• Category: Connectors, Interconnects
• Terminals: Wire Splice Connectors
• Number of Wire Entries: 2
• Termination: Crimp
• Wire Gauge: 14-16 AWG
• Packaging: Bulk
• Part Status: Active
• Features: Brazed Seam, Serrated Mating Area
• Terminal Type: Butt Splice, Inline, Individual Openings
• Base Product Number: BS14
• Color Family: Metallic
• Contact Material: Copper
• Contact Plating: Tin
• Insulation Material: Non-Insulated
• Insulation Type: Non-Insulated
• Overall Length: 0.62 in
• Overall Width: 0.16 in
• Package Quantity: 100
• Special Features: Brazed Seam
• Wire Size: 14-16 AWG
• Width: 0.16 in.
