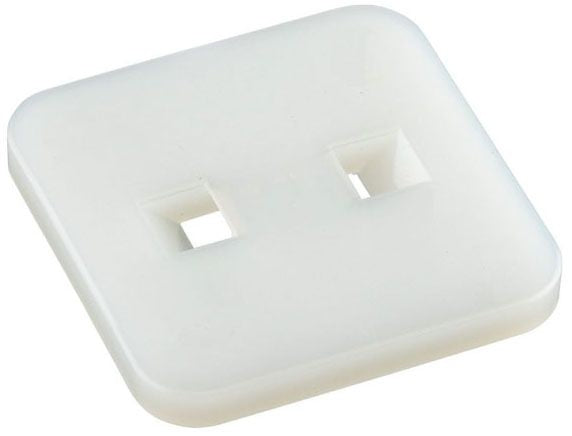

Panduit AM2-C Cable Tie Mount

Product Description

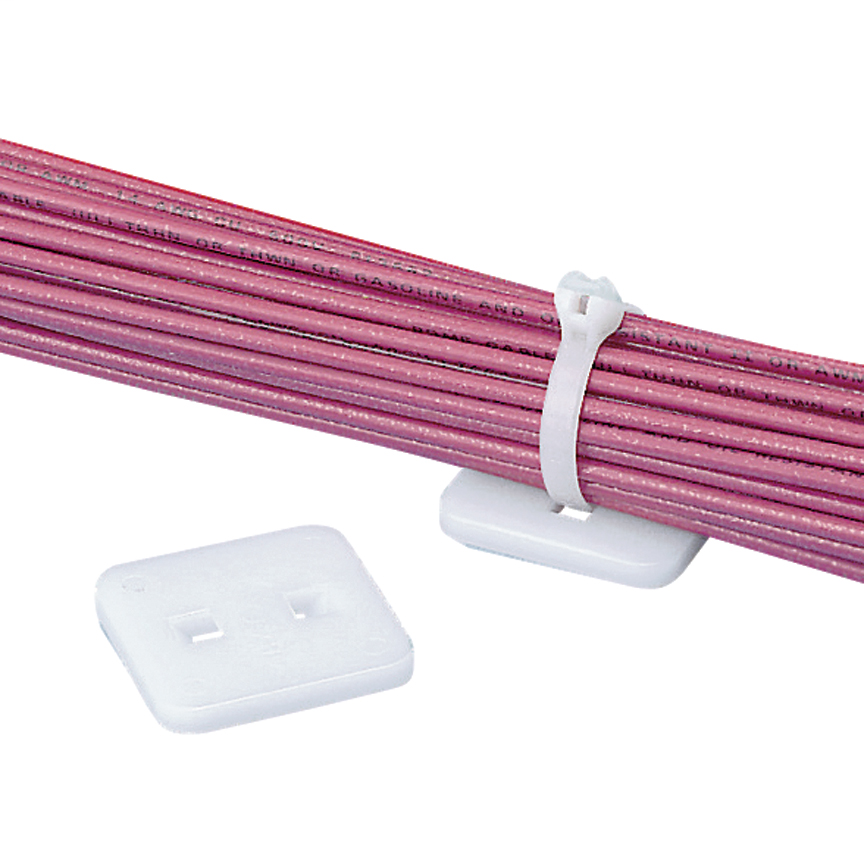

The PANDUIT AM2-C is a low profile cable tie mount designed to keep cable bundles close to the mounting surface where overhead space is limited. It is mounted with a user supplied adhesive. It is used with miniature, intermediate, and standard cable ties and designed for indoor environments.

• Low profile design keeps bundle close to mounting surface
• Polyamide insulation
• User supplied adhesive

Product Highlights

The AM2-C cable tie mount is made of nylon 6.6, increasing mechanical strength, heat and wear resistance, and stiffness.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: AM2-C
• Country of Origin: Unknown

Technical Specifications

• Application: For use with miniature, intermediate and standard cable ties and indoor applications
• Base Length: 1.22 in
• Base Width: 1.22 in
• Color: Natural
• Manufacturer Part Number: AM2-C
• Material: Nylon 6.6/Polyamide
• Maximum Tie Width: 0.19 in
• Mounting Type: Adhesive
• Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CE Marking|RoHS Compliant|UL Listed File No. E136577
• Type: Low Profile
• Size / Dimension: 1.23" L x 1.23" W x 0.12" H (31.2mm x 31.2mm x 3.18mm)
• Manufacturer: Panduit Corp
• For Use With/Related Products: M, I, S Ties
• Packaging: Bulk
• Part Status: Active
• Base Product Number: AM2
• Product Category: Products
• Maximum Operating Temperature: 85 °C
• Minimum Operating Temperature: -60 °C
• Overall Width: 1.12 in, 28.4 mm
• Overall Height: 3.2 mm
• Overall Length: 1.12 in, 28.4
• Width: 28.4 mm, 1.12 in
• Flammability Rating: UL94V-2
• Product: Cable Tie Mounts
• Product Type: Cable Tie Mount
• SKU: PANAM2-C
• Environmental Initiative: ROHS
• Compliant: Yes
• Date of this Information: Unknown
• Notes: Status: Compliant Since Inception
• Use With: Miniature, Intermediate and Standard Cable Ties
• Color Family: Natural
• Length: 1.22 in.
• Height: 0.125 in.
• Max. Temperature Rating: 185°F
• Series: AM2
• Mounting Style: Adhesive Mount
• Length - in: 1.228 in
• Length - mm: 31.2 mm
• Width - in: 1.228 in
• Width - mm: 31.2 mm
• Compliance: UL
• Subcategory: Wire & Cable Management
