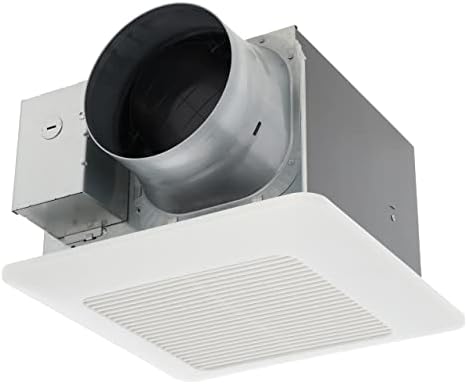

Panasonic FV1115VQ WhisperCeiling DC with Smartflow, 110-130-150 CFM

Product Description

The PANASONIC FV1115VQ WhisperCeiling DC Precision Spot Ventilation Fan features a built-in Pick-A-Flow speed selector switch, allowing airflow selection between 110-130-150 CFM. Equipped with an ECM Motor with SmartFlow technology and a Flex-Z Fast installation bracket, this fan complies with the latest codes and standards. Ideal for bathroom ventilation, it effectively removes moist, polluted air.

• Features revolutionary ECM motor with SmartFlow technology for optimum CFM output
• Offers Pick-A-Flow Speed Selector, enabling a choice of 110, 130, or 150 CFM
• Includes Flex-Z Fast bracket for flexible, fast, and trouble-free installation, even from below the ceiling

Product Highlights

This fan features an ECM Motor with SmartFlow technology and a Flex-Z Fast installation bracket. It can be used to comply with the latest codes and standards. This fan is perfect for bathroom ventilation.

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: FV1115VQ

Technical Specifications

• Model: FV-1115VQ1
• Air Volume (CFM): 110-130-150
• Blower Wheel Type: Sirocco
• California Title 24 Compliant: Yes
• Current (Amps): 0.12-0.31
• Duct Diameter: 6"
• Energy Efficiency (CFM/Watt): 7.6-16.4
• Grille Size (in sq.): 13"
• MAX. Current (Amps): 0.31
• Mfg in ISO 9001 Certified Facility: Yes
• Motor Type (AC/DC): DC
• Mounting Opening (in sq.): 10-1/2"
• Noise (Sones): <0.3-0.7
• Power Consumption (Watts): 6.8-20.2
• Power Rating (V/Hz): 120/60
• Product Family Name: WhisperCeiling DC
• Speed (RPM): 768-1480
• Static Pressure in inches w.g.: 0.1-0.25
• Thermal Fuse Protection: Yes
• Type of Motor Bearing: Ball
• UL Listed for Tub/Shower Enclosure when GFCI Protected: Yes
• UL tub/Shower Enclosure: Yes
• Washington VIAQ Code: Yes
• Brand: Panasonic
• Electric fan design: Exhaust Fan
• Power Source: Corded Electric
• Style: Modern
• Room Type: Bathroom, Garage, Living Room, Laundry Rooms
• Special Feature: Energy Efficient
• Recommended Uses For Product: Exhausting, Home, Ventilating
• Noise Level: 0.3 Sones
• Wattage: 11.8 watts
• Finish Type: Painted
• Air Flow Capacity: 150 Cubic Feet Per Minute
• Voltage: 120 Volts
• Switch Type: airflow selector switch
• Included Components: Ventilation Fan unit, grille, Flexi-Fast bracket, intallation manual, warranty sheet, self-drilling screws (4)
• Indoor/Outdoor Usage: Indoor
• Model Name: FV-1115VQ1
• Specification Met: Energy Star
• Efficiency: Energy Efficient
• Is Cordless?: No
• Number of Power Levels: 3
• Manufacturer: Panasonic
• Part Number: FV-1115VQ1
• Item model number: FV-1115VQ1
• Is Discontinued By Manufacturer: No
• Finish: Painted
• Item Package Quantity: 1
• Number Of Pieces: 1
• Special Features: Energy Efficient
• Batteries Included?: No
• Batteries Required?: No
• Warranty Description: 6 year warranty on motor
• Flow Rate: 110-150 CFM
• Voltage Rating: 120 V
• Frequency Rating: 60 Hz
• Grille Length: 13 Inch
• Grille Width: 13 Inch
• Humidity Sensing: No
• Motion Sensing: No
• Wattage Consumption: 15 Max W
• Type: Fan
• Series: WhisperCeiling DC
