Panasonic fv-wcd01-a Bath Countdown Hourly Timer 120V 15A

Product Description

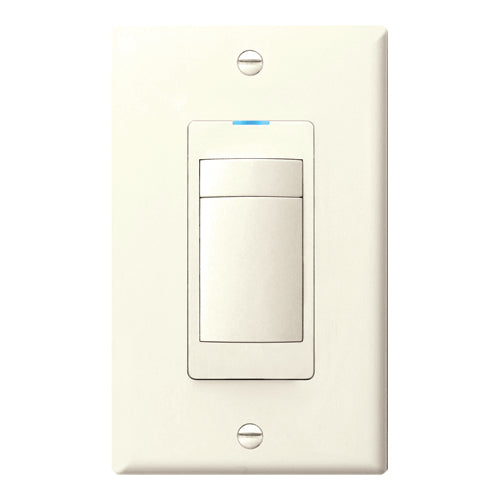

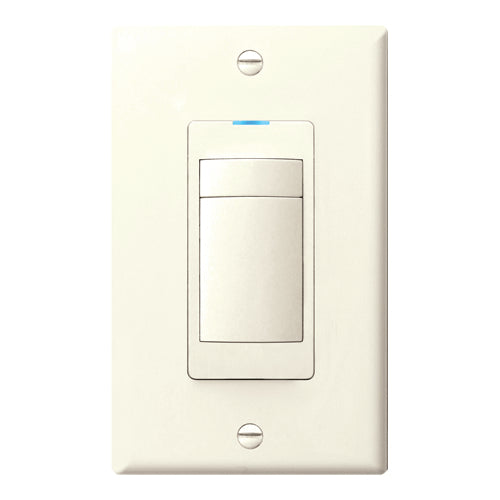

The PANASONIC fv-wcd01-a WhisperControl is a preset countdown and hourly timer wall control designed for residential bathroom ventilation fans. Operating at 120 VAC and rated for 15 amps, this switch gives installers and homeowners a straightforward way to program fan run time from 5 to 60 minutes using the countdown mode. Once the preset time elapses, the fan shuts off automatically. The unit also includes an adjustable Minutes Per Hour (MPH) timer function, allowing technicians to configure continuous periodic ventilation to support ASHRAE 62.2 compliance. A light almond wall plate is included. The fv-wcd01-a uses standard On/Off operational control and mounts directly to a single-gang wall box via a 6-inch lead terminal connection.

This timer control is suited for residential bathroom exhaust fan installations where occupant-initiated timed ventilation is required. The preset countdown function is well-matched for multi-tenant residential buildings, apartments, or family homes where automatic shutoff prevents unnecessary fan run time. The MPH hourly timer function supports whole-house ventilation strategies governed by ASHRAE 62.2, making this control appropriate for new construction and renovation projects subject to energy code requirements. It pairs with Panasonic WhisperControl-compatible exhaust fans but functions as a general bath fan wall controller in compatible low-voltage or line-voltage fan installations.

Key Features

• Preset countdown timer adjustable from 5 to 60 minutes with automatic fan shutoff
• Adjustable Minutes Per Hour (MPH) hourly timer supports ASHRAE 62.2 ventilation compliance
• Rated 120 VAC, 15 amps for compatibility with standard residential bath fan circuits
• On/Off operational mode for straightforward user control
• 6-inch lead terminal connection for wall-box installation
• Light almond finish with matching wall plate included

Compatibility

Designed as a wall-mount timer control for residential bathroom exhaust fan systems. Compatible with Panasonic WhisperControl-series ventilation fans as indicated by the manufacturer designation. Verify fan control input requirements before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for line-voltage wall controls. Power down the circuit at the breaker panel and verify zero voltage with a meter before making any wire connections. The 6-inch lead terminals connect at the wall box; confirm the existing wiring configuration supports a timer-style switch before replacing an existing control. Do not exceed the 15-amp circuit rating.

Technical Specifications

• Voltage: 120 VAC
• Amperage: 15 amps
• Operational Mode: On/Off
• Timer Range: 5 to 60 minutes (countdown mode)
• Hourly Timer: Adjustable Minutes Per Hour (MPH)
• Mounting Type: Wall mount
• Lead Terminal Length: 6 inches
• Color/Finish: Light Almond
• Compliance: ASHRAE 62.2 capable

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: fv-wcd01-a
