Product Description

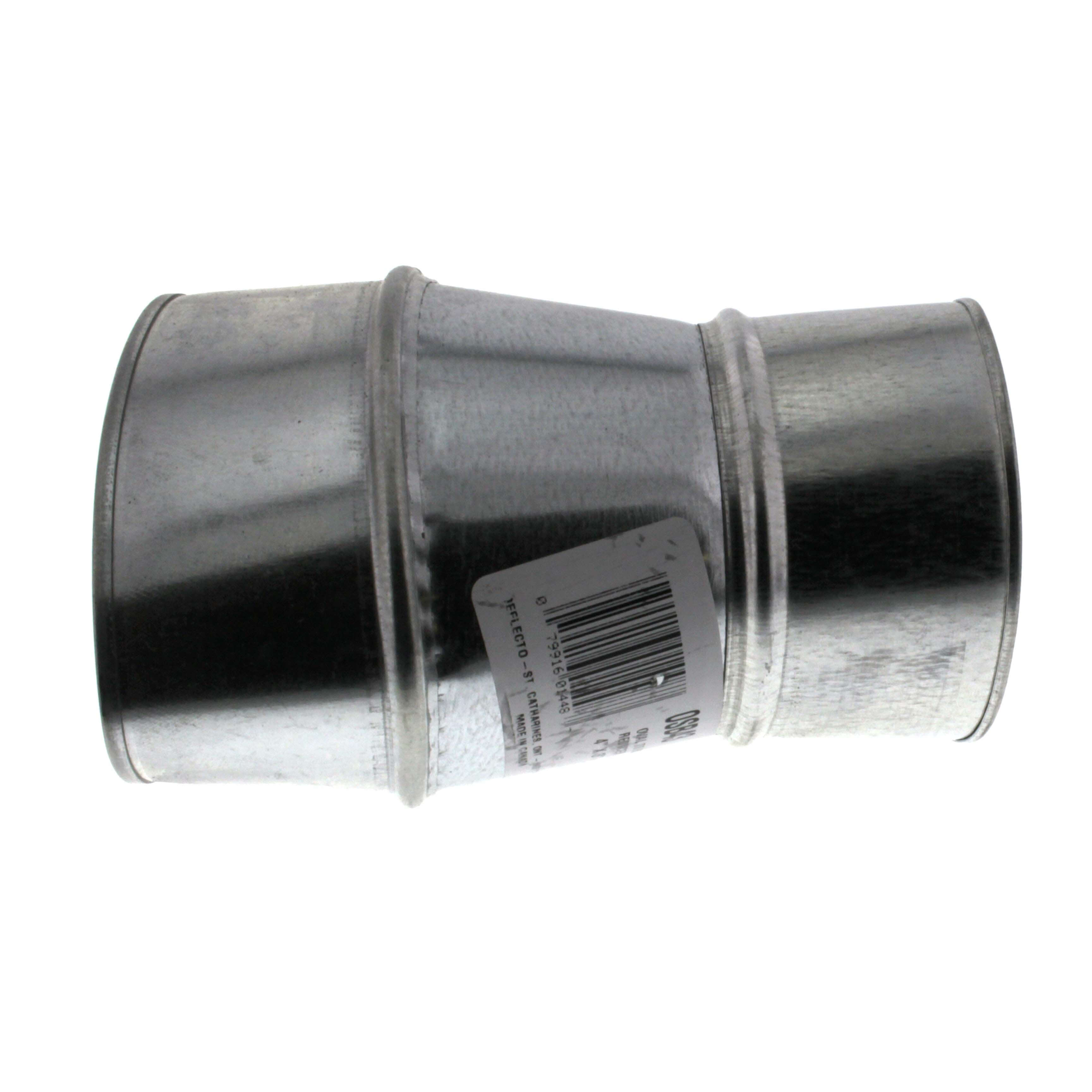

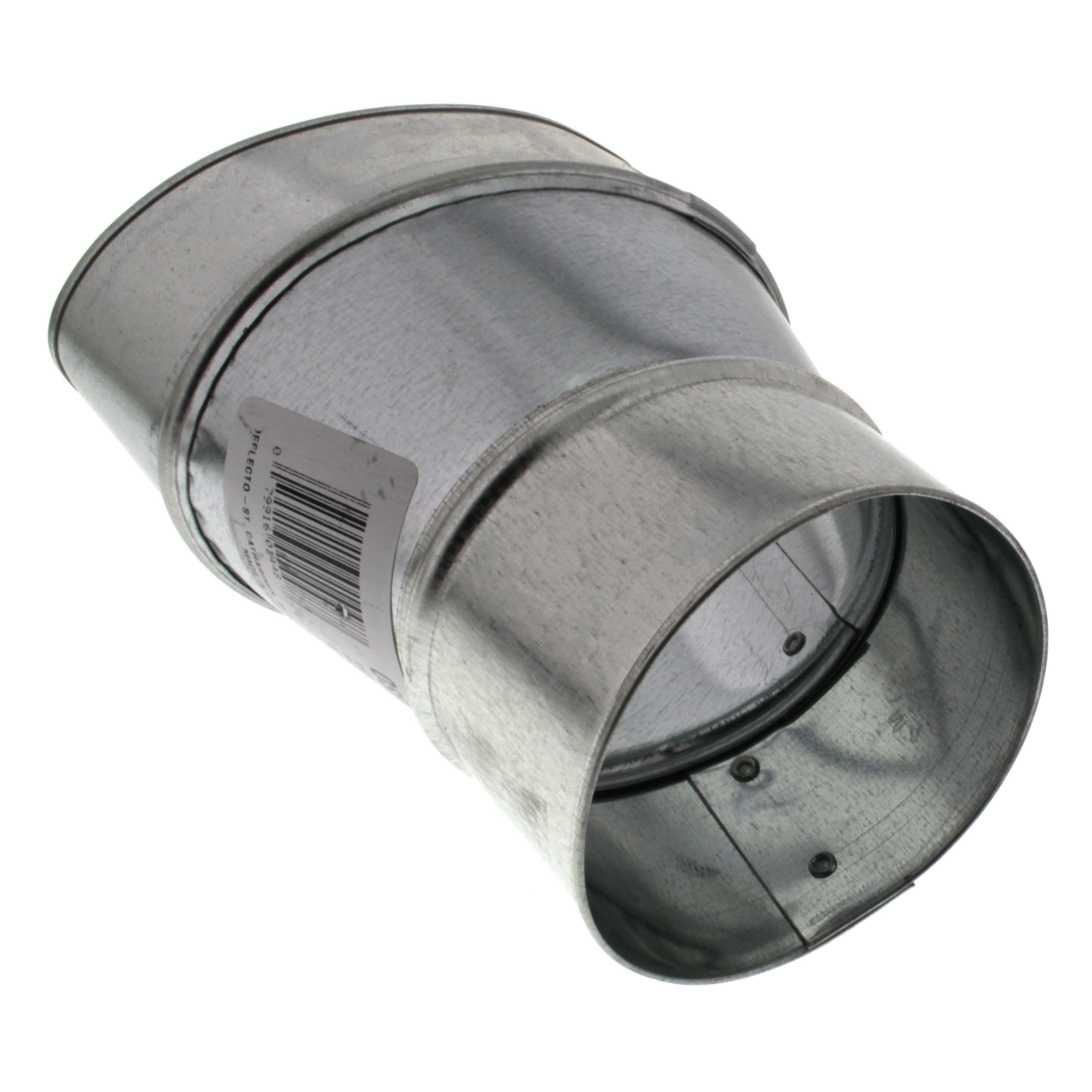

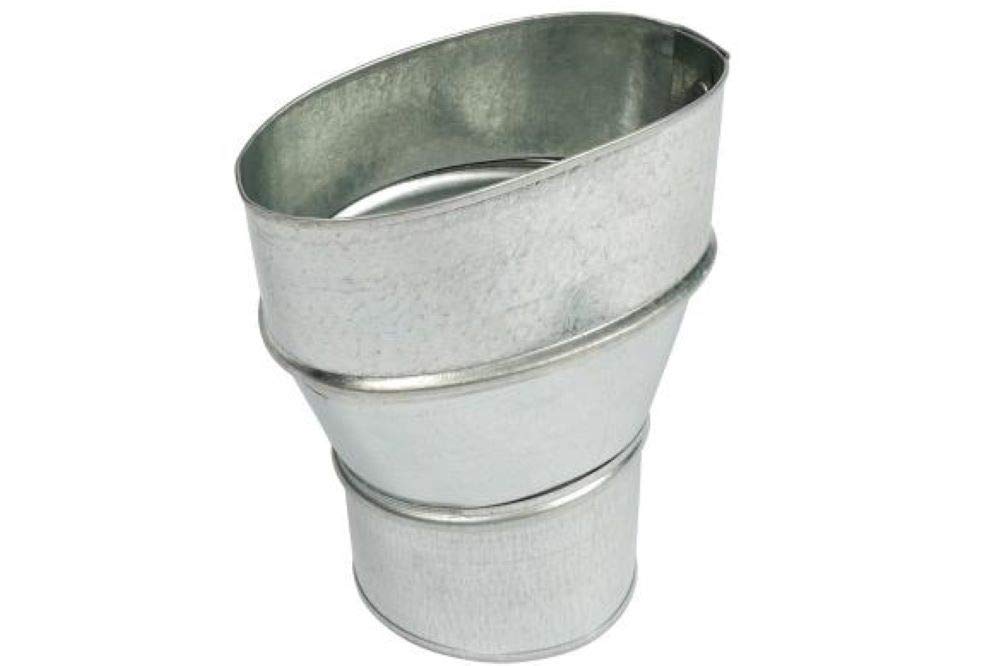

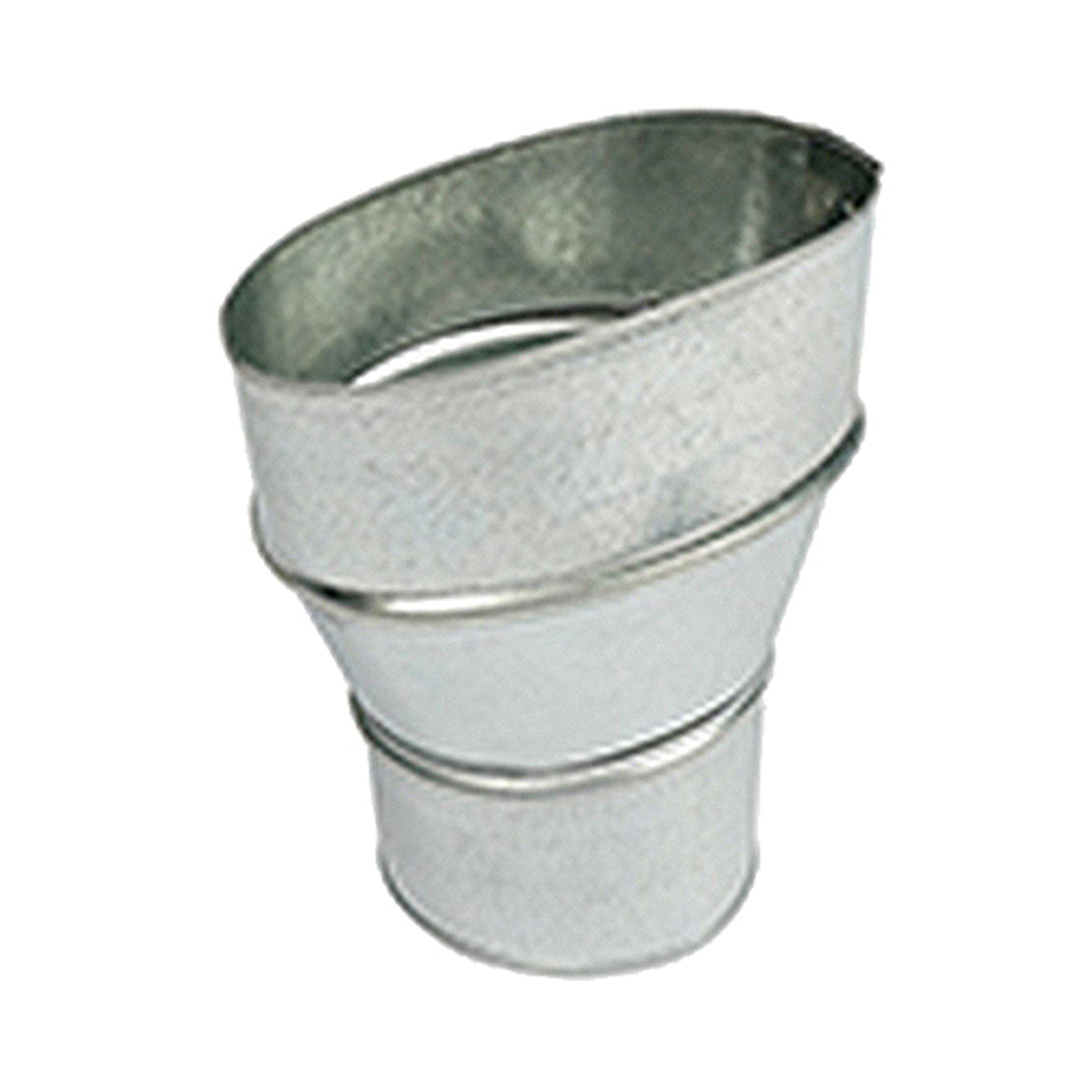

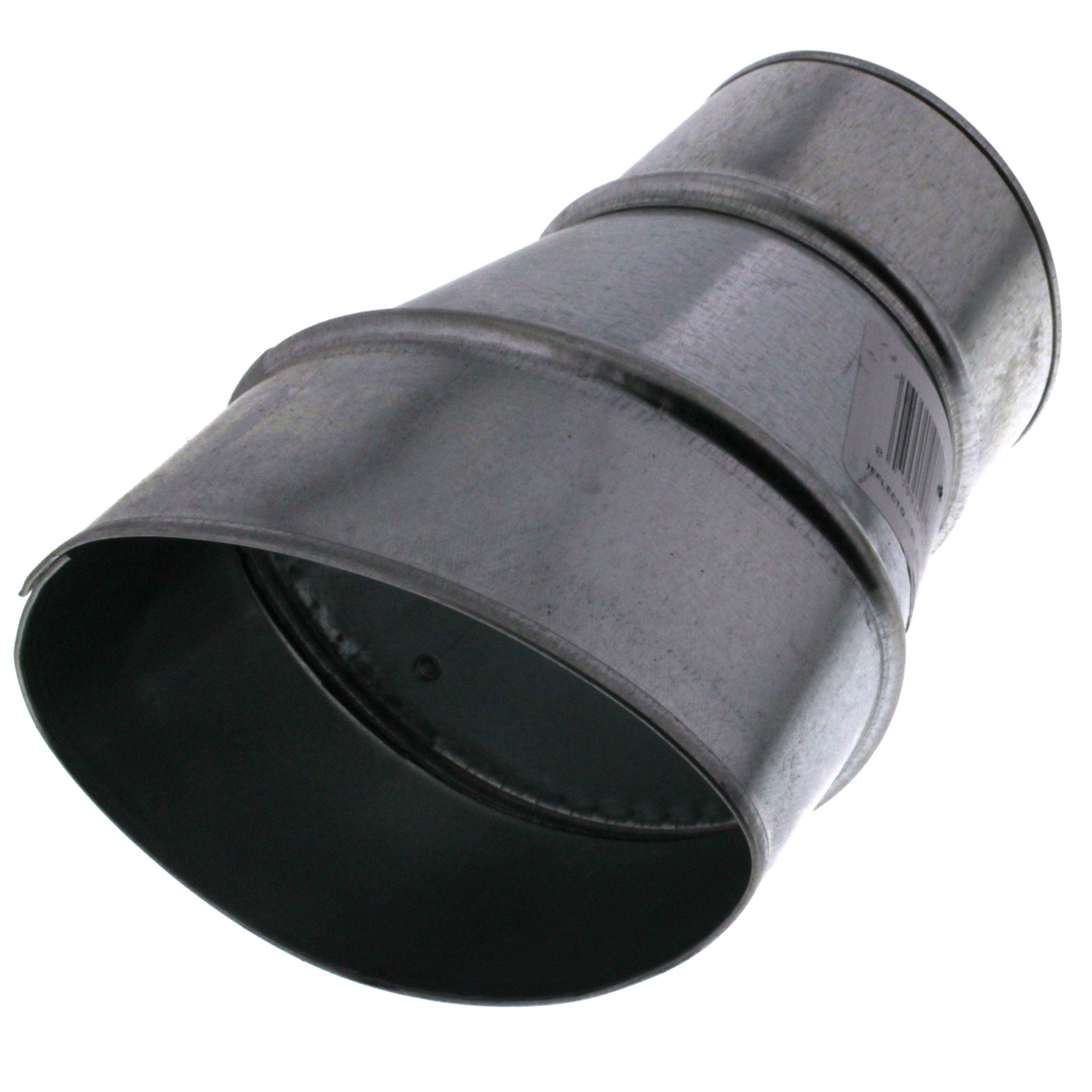

The PANASONIC FV-VS43R Whisper Value/Value Lite duct adapter is a 4 inch oval to 3 inch round duct adapter. Designed for 1-speed ceiling or wall mount fan/light ventilation, this adapter provides flexibility in duct layout and design. It is suitable for single-family, multi-family, hospitality, and renovation applications.
- Provides installation flexibility in duct layout and design
- Fire code rated
- 24 gauge steel
Product Highlights
The PANASONIC FV-VS43R duct adapter is for use with WhisperValue fan and fan/light combinations.
Product Information
Standard Information
-
Brand: PANASONIC
-
Manufacturer Part Number: FV-VS43R
-
Country of Origin: China
Technical Specifications
-
Brand Name: WhisperValue
-
Product Sub-Type: Ventilator General Accessories
-
Product Type: Signals - Timers - Heaters - Fans/Fans & Ventilators
-
Type: 1-Speed, Ceiling/Wall Mount, 4 Inch Oval to 3 Inch Round Duct Adapter
-
Used On: Fan/Light Ventilation
-
Brand: Panasonic
-
Product UPC: 88517013654
-
12-Digit UPC: 885170136540
-
Material: Steel
-
Mounting: Ceiling/Wall
-
Size: 4 - 3 Inch Oval to Round
-
Sub Brand: WhisperValue™
-
Standards: cULus Listed
-
Item Name: Round Duct Adapter
-
MPN: FV-VS43R
-
Suitable for: WhisperValue DC fan and fan/light combinations
-
Construction: Metal
-
Listing: cULus
-
Diameter: 4 in
-
Manufacturer: Panasonic
-
Part ID / MPN: FV-VS43R
-
Model / MPN: 1840-FV-VS43R
-
Catalog #: FV-VS43R
-
Manufacturer Name: Panasonic
-
Duct Size: 4" Oval to 3" Round
-
Configuration: Transfer Register Box
-
Sones: 0.4
-
Approved for Commercial Use: No
-
Collection: WhisperValue
-
Transition Fitting Type: Transition Fitting
-
Shape: Straight
-
End Type: Crimped
-
Function: For Connecting 4 in Oval to 3 in Round Duct
-
Duct Shape: Round
-
For Use With: FV-08VS3, FV-08VSL3, FV-10VS3, FV-10VSL3, Mfr. No. FV-05VS3
-
Overall Depth: 5 3/4 in
-
For Duct Shape: Oval, Round
-
Overall Length: 5 3/4 in
-
Connection Type: Press Fit
-
Duct Size (In.): 3
-
Outlet Diameter: 3 1/8 in
-
Overall Diameter: 4 7/8 in
-
Material Thickness: 24 ga
-
Compatible with Brand: WhisperValue
-
Gas Appliance Category: Not Applicable
-
Maximum Pressure Rating: Not Applicable
-
Minimum Pressure Rating: 10 in wc
-
For Nominal Duct Diameter: 3 in
-
Number of Holes on Flange: Not Applicable
-
Compatible with Manufacturer Model Number: FV-05VS3, FV-08VS3, FV-08VSL3, FV-10VS3, FV-10VSL3
-
Model: FV-VS43R
-
Advanced Features: Single Speed
-
Construction Type: Single Family/ Manufactured Housing. Multi-Family. Hospitality/Assisted Living/ Student Housing. Renovation/Remodeling
-
Ventilation Design Approach: Continuous Ventilation. Spot Ventilation
-
Duct Diameter: 3" and 4"
-
Fan Type: Fan only. Fan/Light CFL
-
Industry: Residential. Light Commercial
-
Installation: Ceiling and Wall Mount
-
Mounting Options: Ceiling Mount. Wall Mount(UL). Tub/Shower(UL)
-
Product Family Name: WhisperValue DC
