Panasonic BR2/3A BR-2/3A 3 V (2/3A)

Product Description

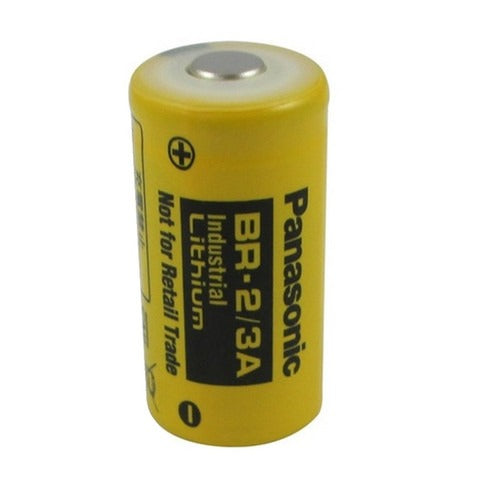

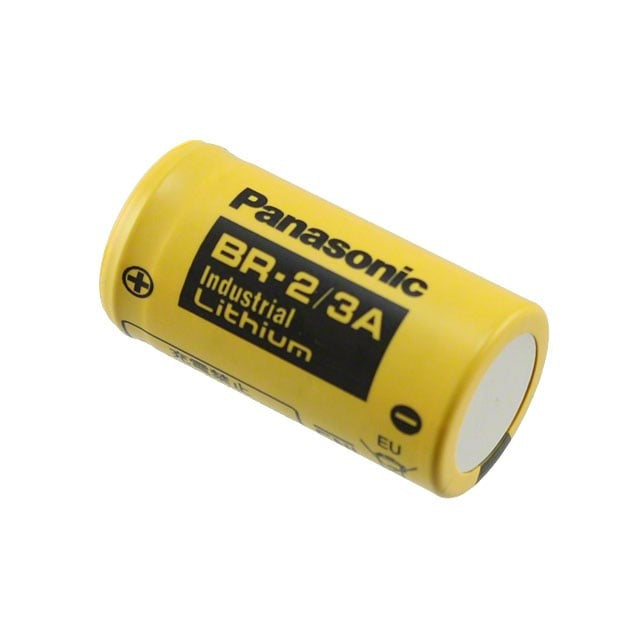

Panasonic BR2/3A is a primary lithium cylindrical battery with a nominal voltage of 3 V and nominal capacity of approximately 1200 mAh. The cell is intended for low to moderate continuous drain applications (standard continuous drain 2.5 mA) and measures 17.0 mm in diameter by 33.5 mm in height. It operates across a wide temperature range (-40 to 85 °C) and is certified to IEC 60086-4 and UL 1642 (MH12210).

• Nominal voltage 3 V and nominal capacity ~1200 mAh; standard continuous drain 2.5 mA for low-to-moderate drain devices.

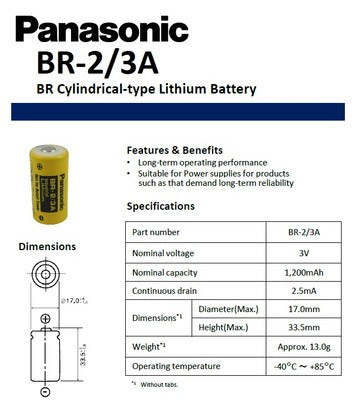

• Cylindrical 2/3A cell, 17.0 mm diameter x 33.5 mm height, approximate weight 13 g; button-top termination noted in manufacturer datasheets.
• Wide operating temperature range -40 to 85 °C; certified to IEC 60086-4 and UL 1642 (File No.: MH12210).

Product Highlights

Primary lithium cylindrical cell, 3 V, ~1200 mAh, 2/3A size, 17.0 mm x 33.5 mm, -40 to 85 °C, IEC 60086-4 and UL 1642 certified.

Product Information

Standard Information

• Brand: PANASONIC
• Manufacturer Part Number: BR2/3A
