Pamex DD0244OB Hinge Pin Door Stop Oil Rubbed Bronze

Product Description

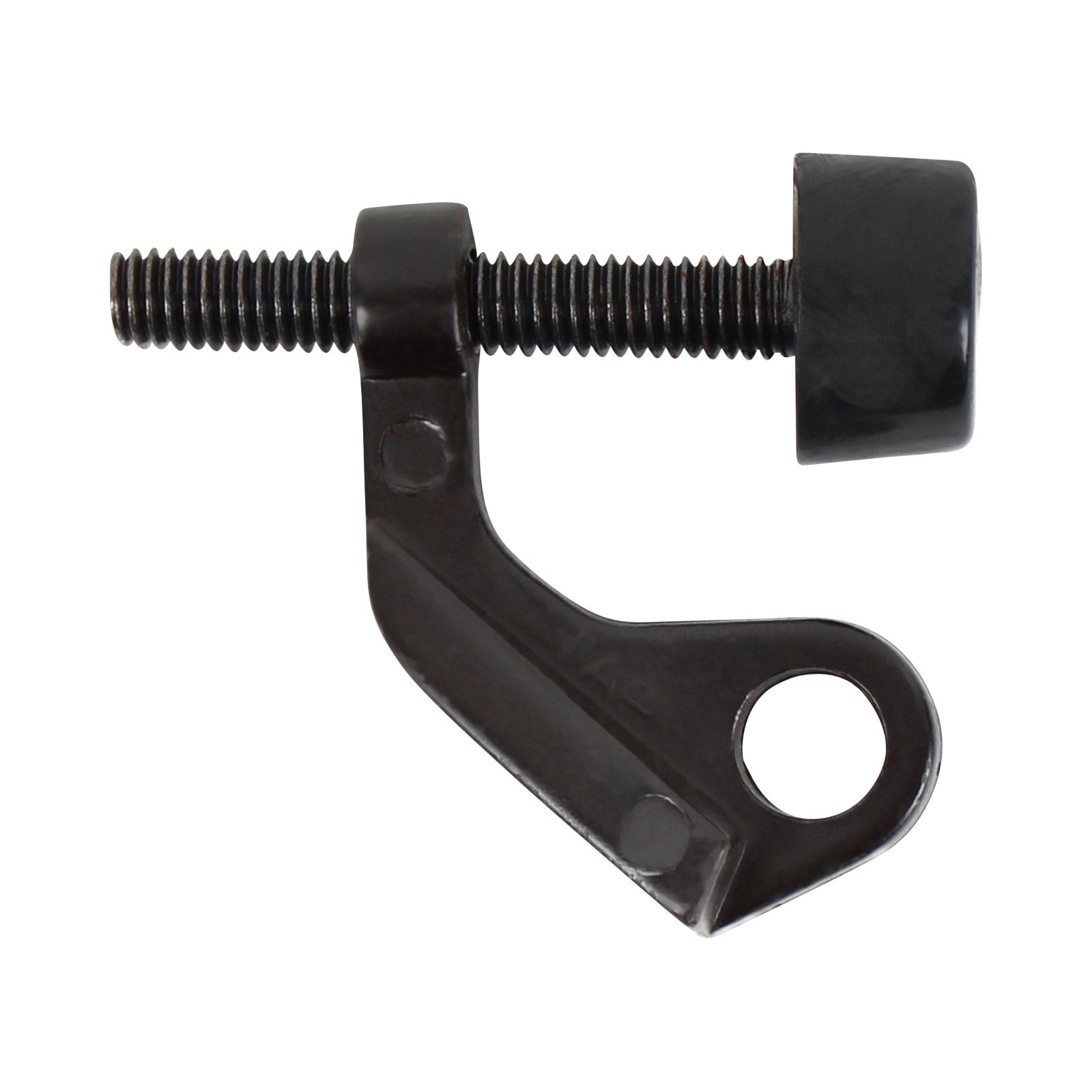

The PAMEX DD0244OB is a hinge pin door stop finished in oil rubbed bronze. It installs directly onto an existing door hinge pin to prevent a door from swinging open too far and striking the wall or trim behind it. The stop is compact, measuring 1.9 inches in length, 2.5 inches in width, and 0.6 inches in height, and weighs 0.05 pounds. The oil rubbed bronze finish is suited for doors where that hardware finish is already in use. This type of door stop is typically installed by finish carpenters, general contractors, or experienced DIYers during new construction or renovation work.

The DD0244OB is designed for residential and light commercial door applications where wall-mount or floor-mount door stops are not practical or desired. It works with standard door hinges and requires no drilling into walls or flooring. The hinge pin mount makes it a low-profile solution in entryways, hallways, and interior door openings where door control is needed without adding hardware to surrounding surfaces.

Key Features

• Installs on existing hinge pin — no wall or floor drilling required
• Oil rubbed bronze finish for consistent hardware matching
• Compact profile: 1.9 inches x 2.5 inches x 0.6 inches
• Lightweight at 0.05 pounds — minimal added load on hinge
• Sold individually (each unit)

Compatibility

Designed as an OEM-style replacement or upgrade for standard residential and light commercial door hinges that accept a removable hinge pin.

Installation Notes

Installation requires removing the existing hinge pin from the door hinge, threading the stop onto the pin, and reinserting the pin into the hinge barrel. No special tools are required beyond a nail set or punch to tap the hinge pin free. Ensure the door is fully supported before removing the hinge pin to prevent the door from shifting. Verify the stop orientation allows the door to open to the desired stop point before finalizing installation.
