Packless VAFS-4 Vib Eliminator 9 Inch Length

Product Description

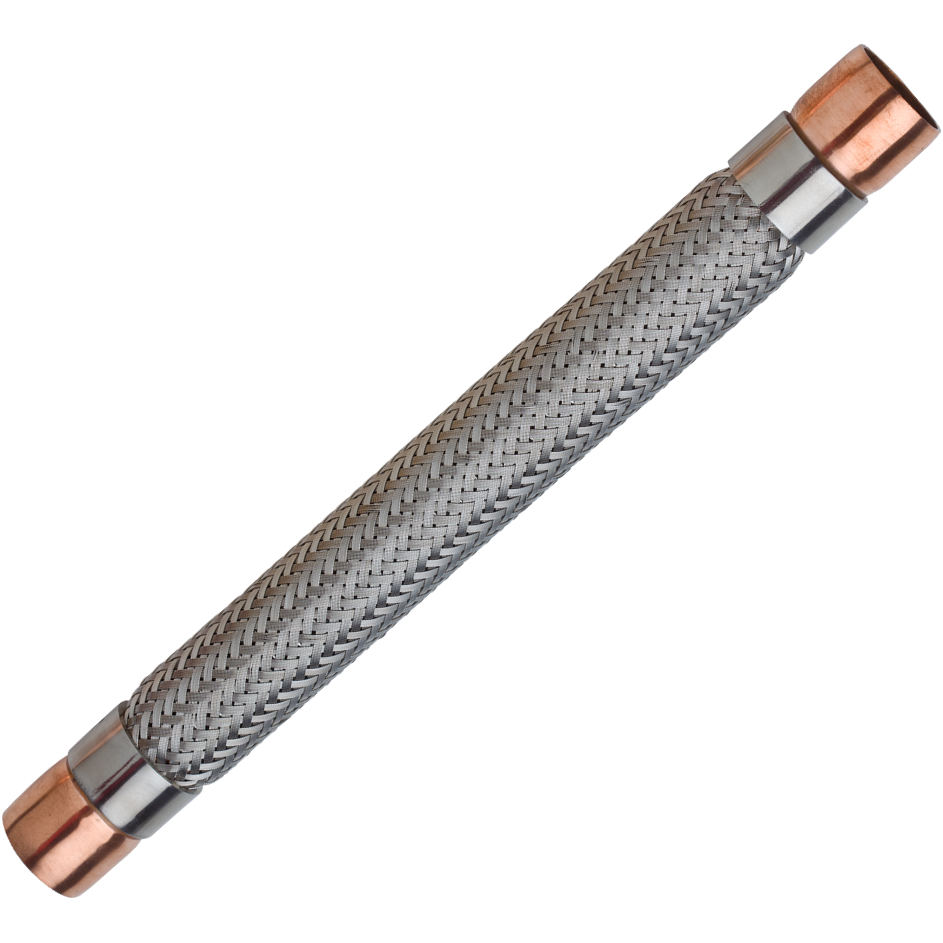

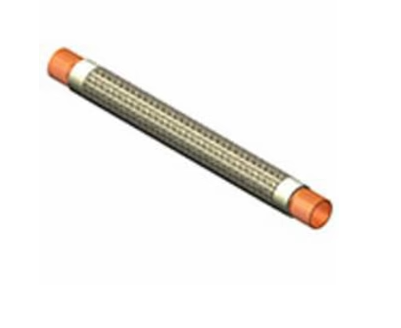

The PACKLESS VAFS-4 vibration absorber is designed for installation in the suction and discharge lines of air conditioning and refrigeration systems to dampen the transmission of compressor-induced vibration through system piping. It measures 9 inches in length and is constructed from stainless steel and copper.

• Made in USA
• Suitable for Air Conditioning, Heating, and Refrigeration Systems
• Complies with UL, CE, and ISO 9001 Standards

Product Highlights

This vibration absorber is pressure and vacuum tested, cleaned, dehydrated, and sealed in plastic film.

Product Information

Standard Information

• Brand: PACKLESS
• Manufacturer Part Number: VAFS-4
• Country of Origin: USA

Technical Specifications

• Applicable Standard: UL (Canada and US), CE, ISO 9001
• Item: Vibration Absorber
• Size: 9 Inch Length
• Material: Stainless Steel (Tube, Braid, Ferrule), Copper (Connection)
• Used On Item: Suction and Discharge Lines of Air Conditioning, Heating and Refrigeration System
• End Connection: 1/2 Inch Internal Diameter x 3/8 Inch Length
• Tube Material: Stainless Steel
• Braid Material: Stainless Steel
• Ferrule Material: Stainless Steel
• Connection Material: Copper
• Pressure Rating: 650 PSIG (Working), 3250 PSIG (Burst)
• Working Pressure: 650 psig 45 bar
• Burst Pressure: 3250 psig 224 bar
• Vendor: PACKLESS
• MfgNum: VAFS-4
• Main Category: Refrigeration
• Category: Refrigerant Handling
• SubCat: Vibration Eliminators
• ItemNum: VAFS-4
• Model: VAFS-4
• UL Recognized Number: VAFS-4
• Brand Name: Packless
• Brand: Packless Industries
• A - Connection Size (ID): 1⁄2 in 12.7 mm
• B - Connection Length: 3⁄8 in 9.5 mm
• C - Tube Length: 6 11⁄16 in 169.9 mm
• D - Total Length: 9 in 228.6 mm
• Flexible Tube Size (ID): 3⁄8 in 9.5 mm
