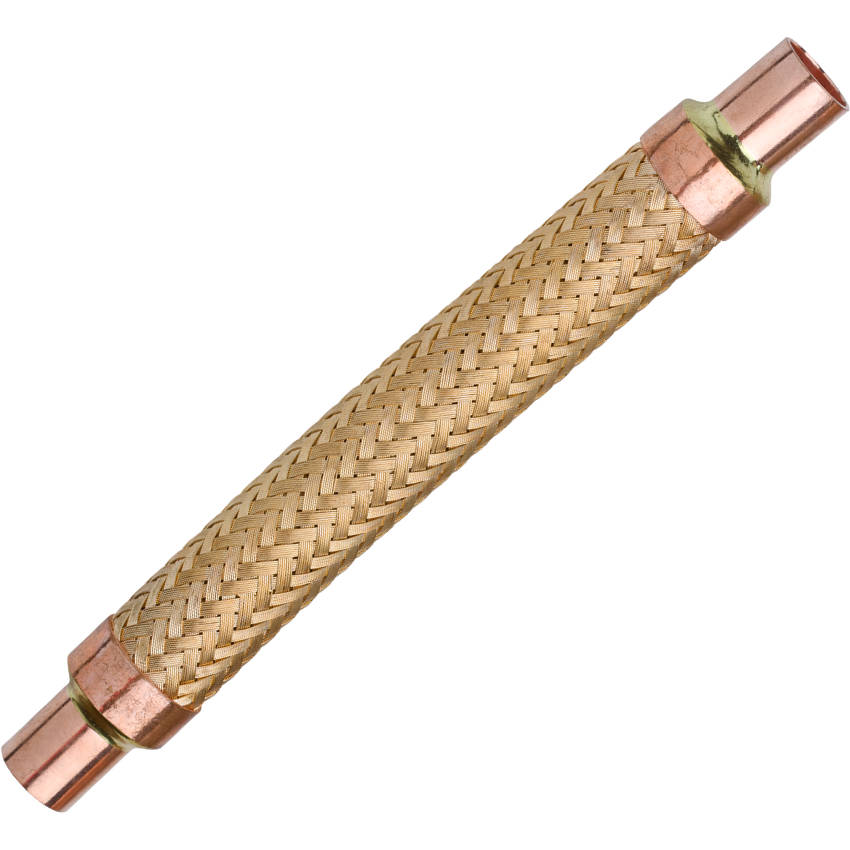

Packless Industries VAF-1 Vibration Absorber 1/4 in

Product Description

The Packless Industries VAF-1 vibration absorber is crucial for minimizing compressor vibration in refrigerant lines. This product has an outer diameter of one-fourth inch. Its design features corrugated tubing for enhanced flexibility and vibration control, reinforced by a high tensile wire braid for increased strength. It is suitable for use with several types of refrigerants including CO2, HC, HFO, HFC, HCFC, and CFC.

• Designed to reduce compressor induced vibration in systems
• UL recognized component
• Versatile compatibility with various refrigerants

Product Highlights

Product Information

Standard Information

• Model: VAF-1
• UL Recognized Number: P-1

Technical Specifications

• Tube Material: Red Brass
• Braid Material: Bronze
• Ferrule Material: Copper
• Connection Material: Copper
• A - Connection Size (ID): 1/4 in
• B - Connection Length: 1/2 in
• C - Tube Length: 6 in
• D - Total Length: 7 in
• Flexible Tube Size (ID): 1/4 in
• Working Pressure: 660 psig
• Burst Pressure: 3300 psig
