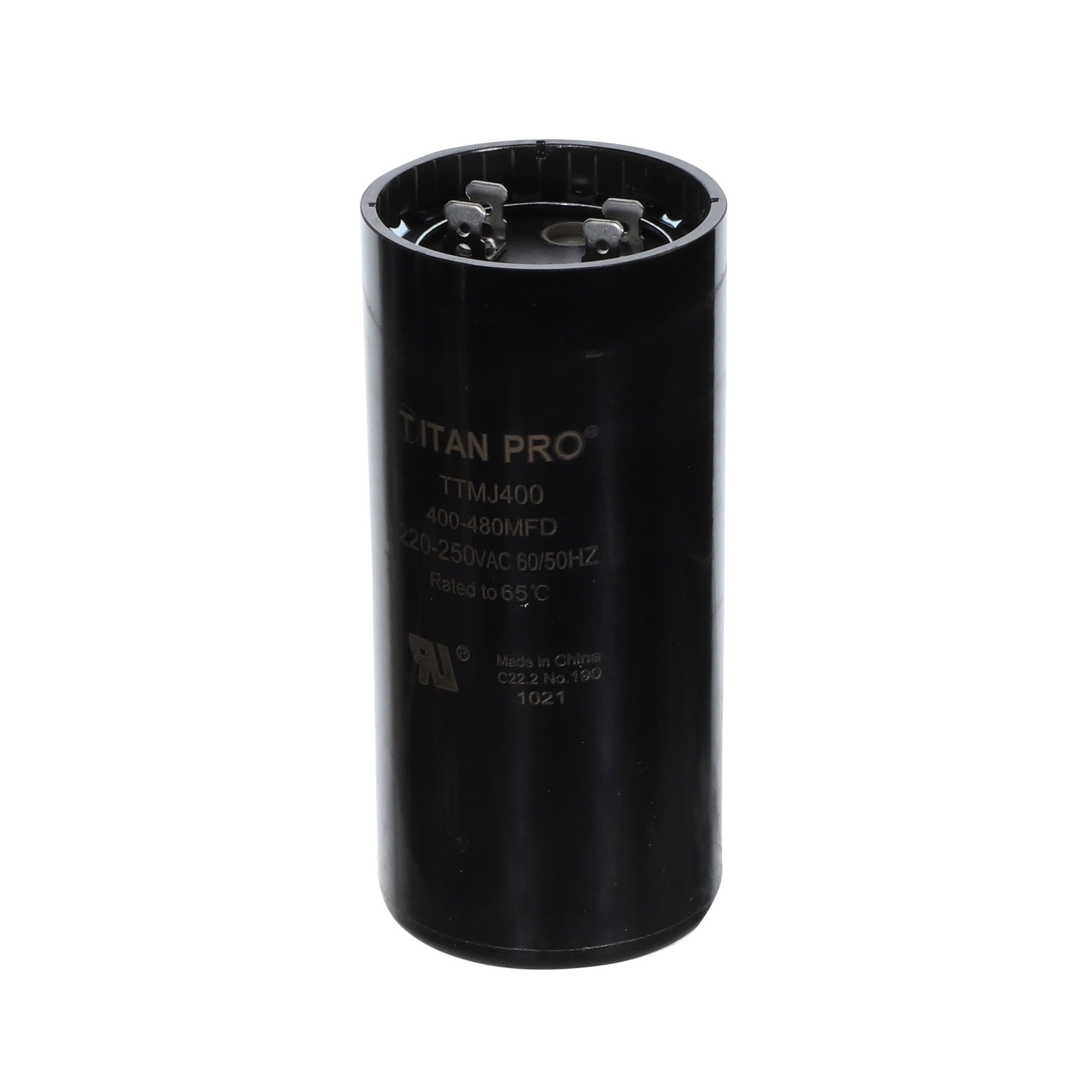

Packard TTMJ400 Titan Pro Start Capacitor 400-480 MFD (Each)

Product Description

Packard TTMJ400 is a Titan Pro motor start capacitor rated 400-480 MFD for 220-250 VAC motor starting circuits. The dry electrolytic, non-polarized unit uses a round moisture- and oil-resistant molded phenolic or plastic can with standard dual blade terminals and is suitable for ducted or ductless HVAC and refrigeration motor applications. It is rated for 3-second starts, up to 20 starts per hour, and 50/60 Hz operation.

• Capacitance 400-480 MFD, rated voltage 220-250 VAC, 50/60 Hz for motor starting
• Dry electrolytic non-polarized construction with moisture- and oil-resistant molded phenolic/plastic round case and dual blade terminals
• Rated 3-second start, up to 20 starts per hour; operating temperature -40 to 65°C; meets EIA RS-463 type 2

Product Highlights

Motor start capacitor, 400-480 MFD, 220-250 VAC, round can, dual blade terminals, 3-second start

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: TTMJ400
• Country of Origin: United States
