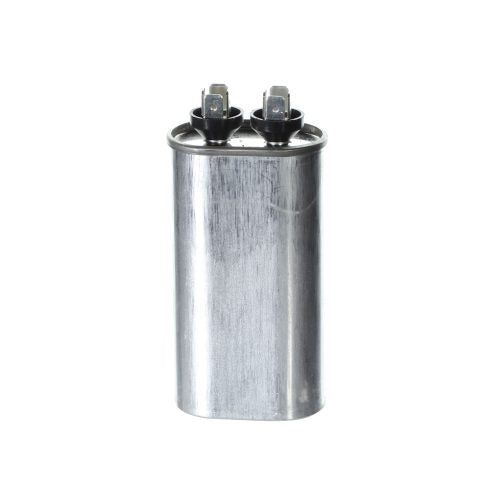

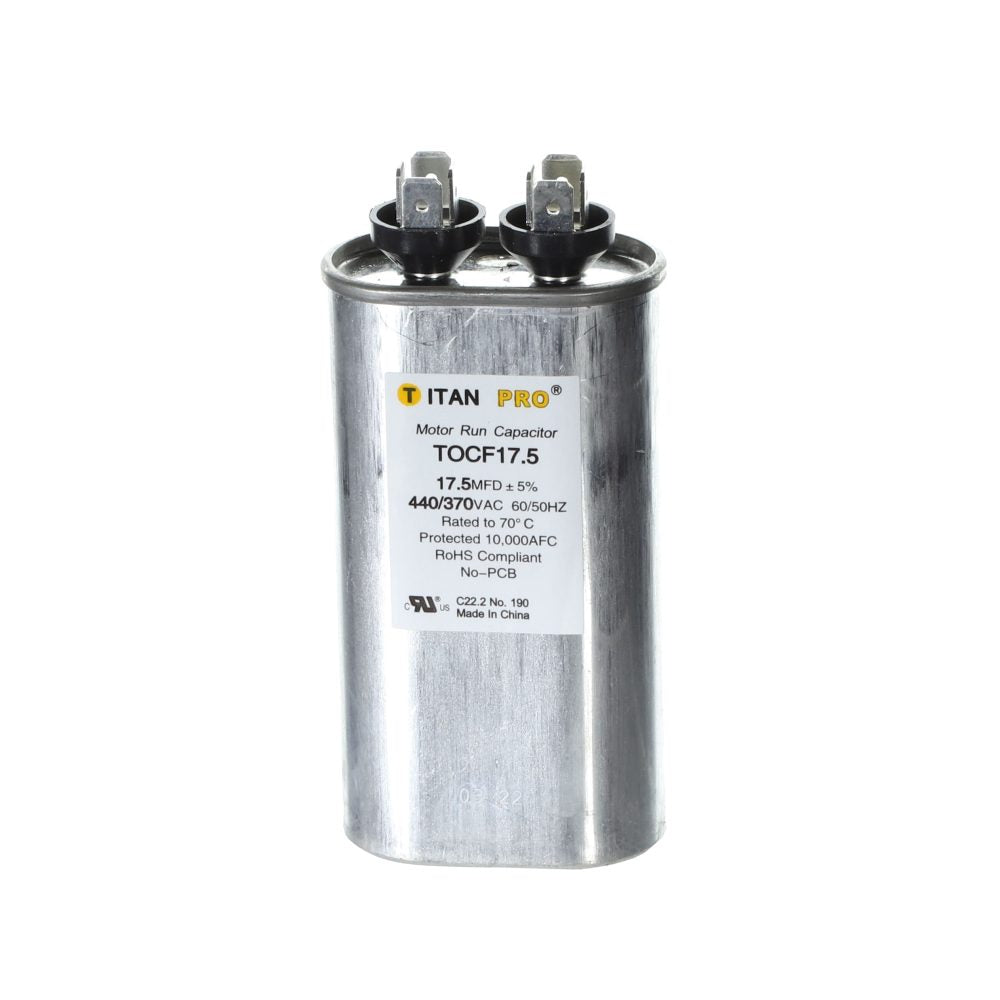

Packard TOCF17.5 Titan ProCap 440/370V (Oval) 12012/12036

Product Description

Packard TOCF17.5 is a Titan ProCap 17.5 MFD oval run capacitor rated 440/370V for HVAC motors and compressors. It employs a metalized polypropylene film dielectric that provides self-restoring capability and includes a UL-approved pressure-sensitive interrupter for safe end-of-life circuit removal. The unit is rated for 60,000 hours of operational life, supports 50/60 Hz operation, and is designed for residential and light-commercial compressor and fan motor applications.

• 17.5 MFD capacitance with dual-voltage 440/370 V for 50/60 Hz operation
• Metalized polypropylene film dielectric with self-restoring properties
• UL-approved pressure-sensitive interrupter and 60,000-hour rated operational life

Product Highlights

Oval single-run motor capacitor; aluminum case with steel cover; RoHS compliant and UL listed; direct replacement for industry numbers 12012/12036.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: TOCF17.5
• Country of Origin: China

Technical Specifications

• Brand: Packard
• Manufacturer Part Number: TOCF17.5
• Model Name: Titan ProCap
• Capacitance: 17.5 MFD
• Voltage Rating: 440/370 V
• Frequency: 50/60 Hz
• Type: Single run (motor run capacitor)
• Function: Run
• Shape: Oval
• Operating Life: 60,000 hours
• Dielectric: Metalized polypropylene film
• Case Material: Aluminum
• Cover Material: Steel
• Dimensions: 2.03 in W x 1.24 in D x 3.74 in H
• Weight: 0.48 lb
• Certifications: UL Listed; RoHS Compliant
• Compliance Standards: EIA-456-A; IEC 60252-1:2001
• Direct Replacement: Industry no 12012/12036
• UPC: 840899110554
• Country of Origin: CN
