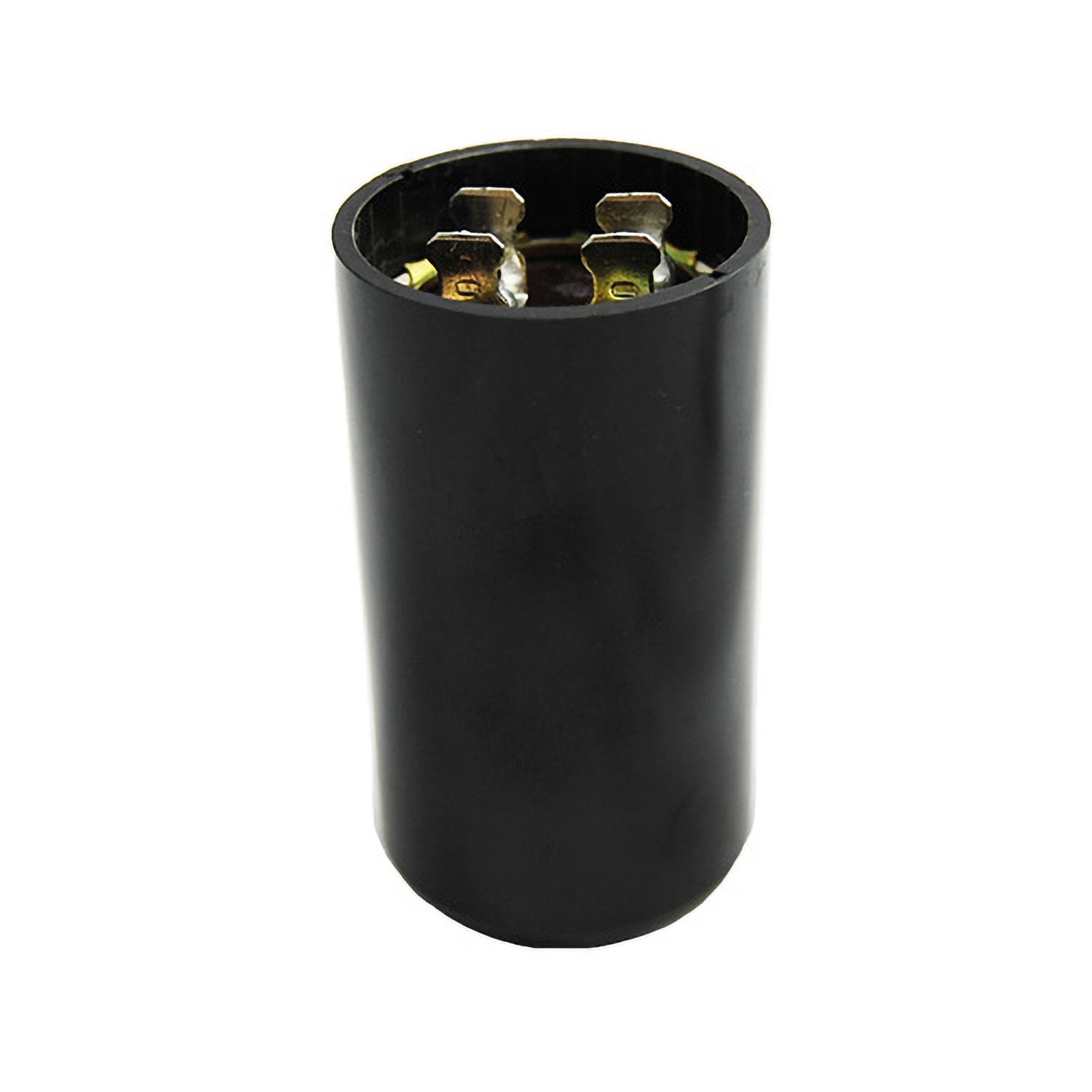

Packard TMJ540 Start Capacitor Round 110/125 VAC (Each) A800-172

Product Description

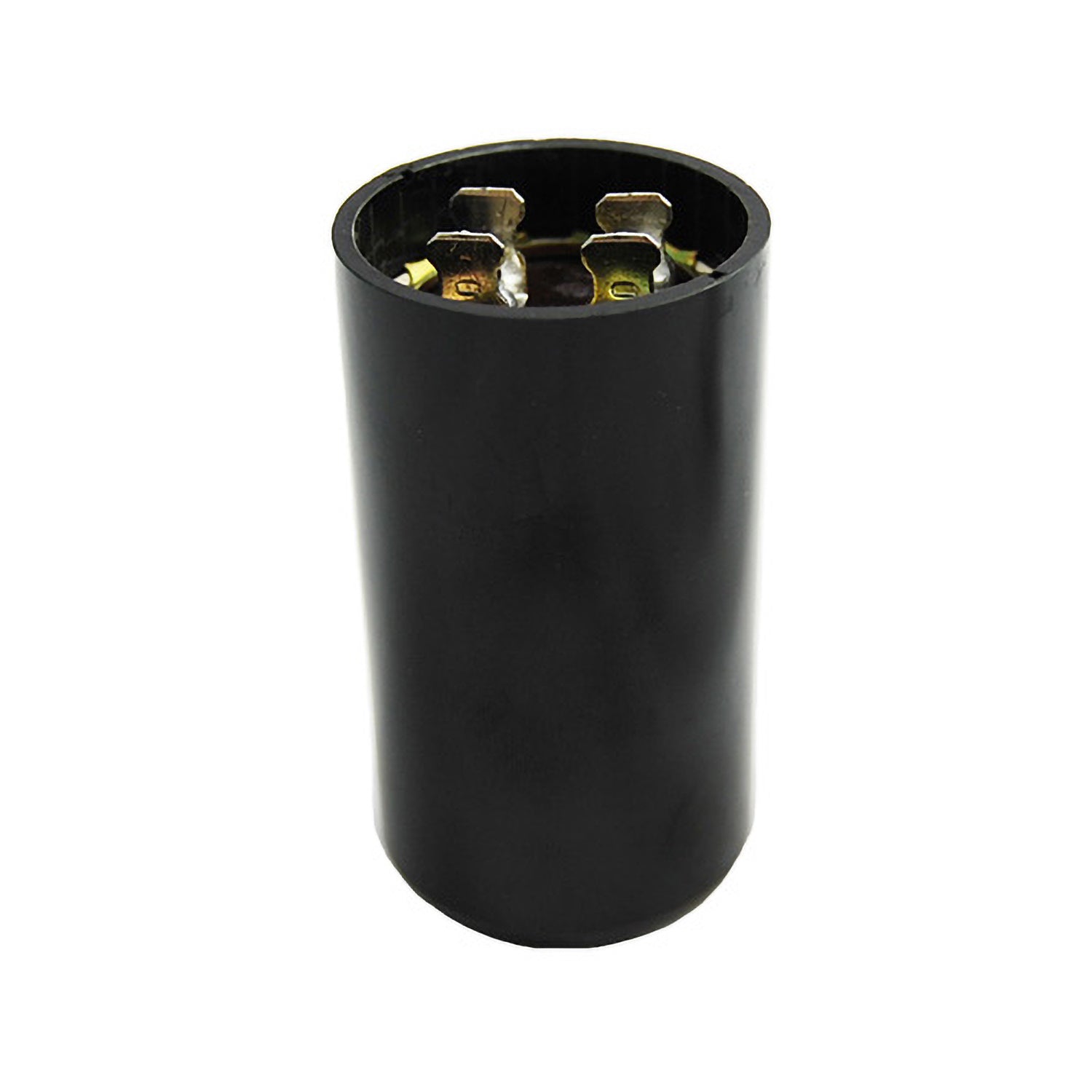

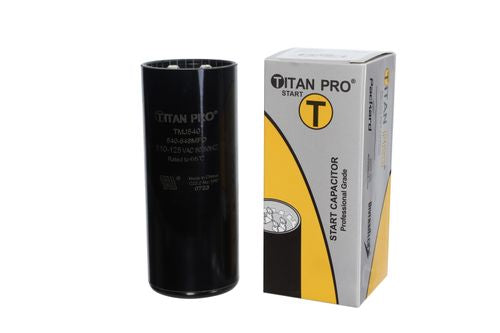

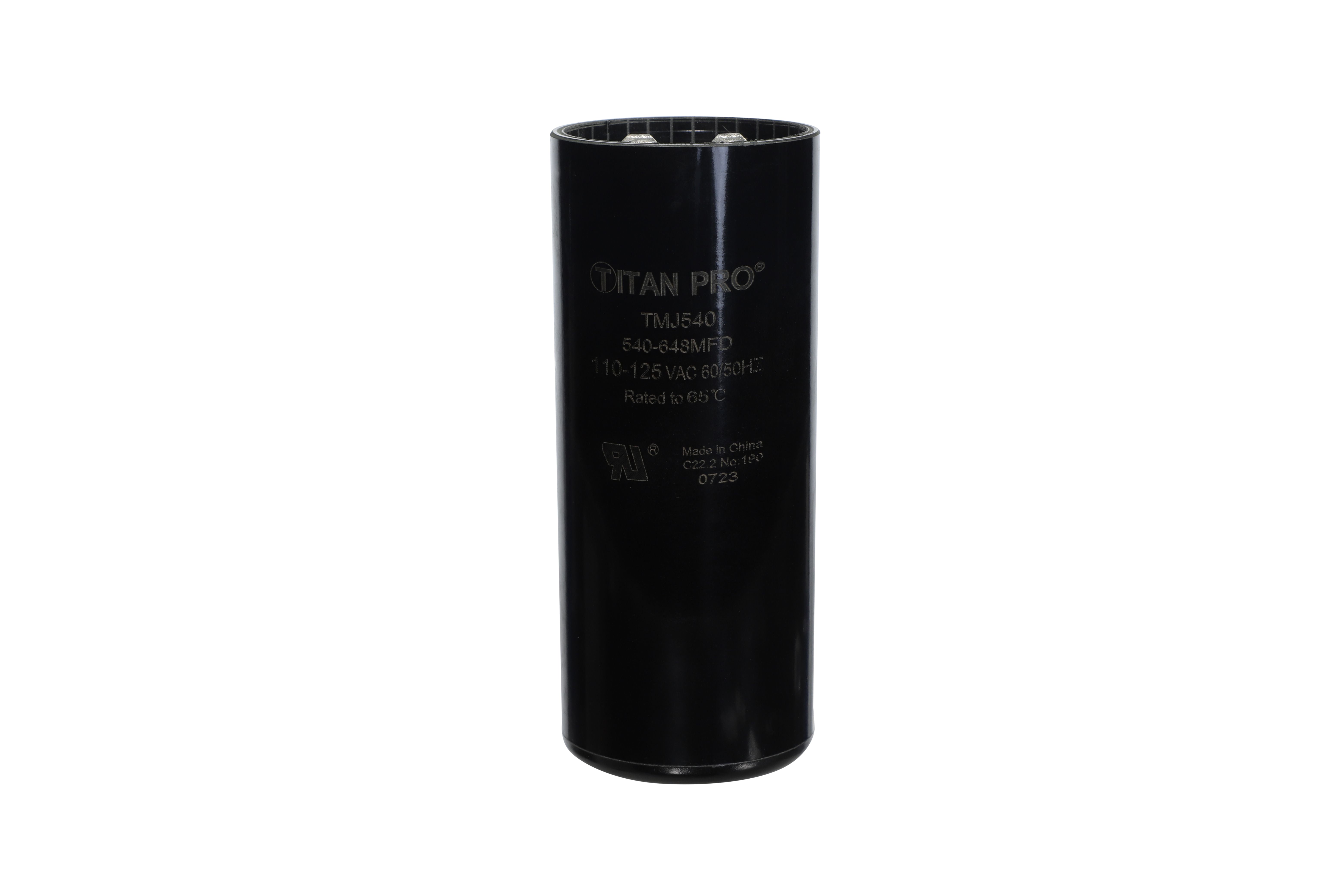

Packard TMJ540 is a motor start capacitor rated 540-648 MFD at 110/125 VAC for AC motor starting circuits. It uses a dry electrolytic, non-polarized construction and is intended for intermittent duty, providing a rated 3-second start. The round case is moisture- and oil-resistant molded phenolic resin or plastic and features standard dual blade terminals. It is suitable for single-phase motor start applications and compatible with potential or current relays.

• Capacitance 540-648 MFD and rated voltage 110/125 VAC for motor starting.
• Dry electrolytic, non-polarized design for intermittent start duty with a rated 3-second start.
• Round moisture- and oil-resistant molded phenolic/plastic case with standard dual blade terminals.

Product Highlights

Start capacitor 540-648 MFD, 110/125 VAC; round molded phenolic/plastic case; dual blade terminals.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: TMJ540
• Country of Origin: United States

Technical Specifications

• Brand: Packard
• MPN: TMJ540
• Product Type: Start capacitor
• Capacitance: 540-648 MFD
• Voltage: 110/125 VAC
• Capacitor Type: Dry electrolytic, non-polarized
• Duty: Intermittent (motor starting)
• Rated Start Time: 3-second start
• Terminals: Standard dual blade terminals
• Case Material: Moisture- and oil-resistant molded phenolic resin or plastic
• Shape: Round
• Phase: Single phase
• Function: Start
• Can/Case Size: 5
• Hertz: 50/60
• Starts Per Hour: 20
• Operating Temperature Range: -40 to 149 F (-40 to 65 C)
• Standard: EIA RS-463 type 2
• Dimensions (W x H x D, in): 1.81 x 4.37 x 1.81
• Weight (lbs): 2.39
• Inventory SKU: A800-172
• UPC: 840899129785
• Country of Origin: United States
