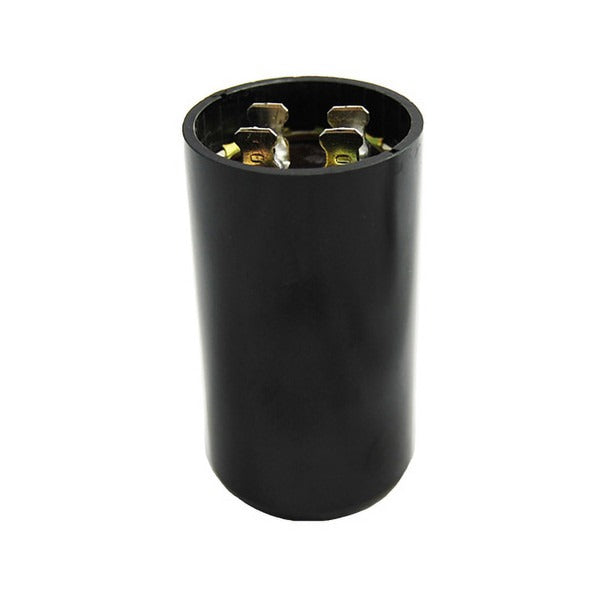

Packard PTMJ189 Start Capacitor 189-227 µF (Round) A801-166

Product Description

Packard PTMJ189 is a dry electrolytic, non-polarized motor start capacitor rated 189–227 µF at 220–250 VAC. It is designed for intermittent-duty AC motor starting circuits, rated for 3-second starts and up to 20 starts per hour. The round molded phenolic/plastic case measures 2-1/16 in diameter by 3-3/8 in height, includes standard dual blade terminals, and is specified for 50/60 Hz operation and -40 to 65 °C temperature range.

• Capacitance 189–227 µF, voltage rating 220–250 VAC, suitable for motor start applications
• Dry electrolytic, non-polarized design for intermittent duty; rated 3-second start and up to 20 starts per hour
• Round molded phenolic/plastic case (2-1/16 in Dia x 3-3/8 in H) with standard dual blade terminals, 50/60 Hz

Product Highlights

Motor start capacitor, 189–227 µF at 220–250 VAC, round phenolic/plastic case, standard dual blade terminals.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PTMJ189
• Country of Origin: China
