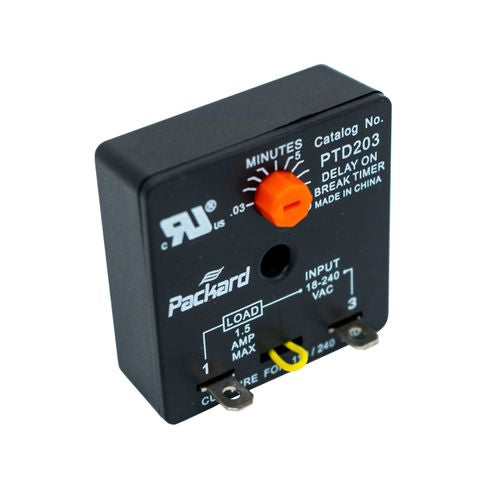

Packard PTD203 Adjustable Delay on Break Timer 6 Sec. to 10 Min.

Product Description

The Packard PTD203 is a delay on break timer that is adjustable from six seconds to ten minutes. This timer works with universal voltage, which makes it suitable for various applications. It has a maximum output rating of one point five amps, providing consistent performance for your devices. The timer connects using two quarter-inch male terminals for easy installation.

• Universal voltage compatibility
• Adjustable time delay from six seconds to ten minutes
• Delay on break functionality

Product Highlights

The Packard PTD203 is ideal for use in HVAC, lighting control, and other electrical installations where delay timing is essential.

Product Information

Standard Information

• Type: Delay on Break
• Input Voltage: Eighteen to two hundred forty VAC/VDC

Technical Specifications

• Frequency: Fifty/Sixty Hz
• Max Output Rating: One point five amps
• Min Output Rating: Forty mA
• Inrush Rating: Fifteen amps
• Time Delay Range: Zero point zero three to ten minutes
• Terminals: Two x one quarter inch male terminals
