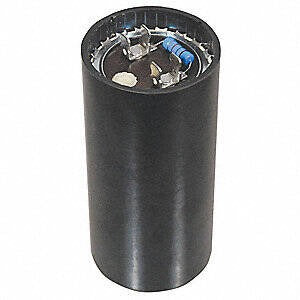

Packard PMJ708 Start Capacitor 708-850 uF (Case 5) 11028

Product Description

Packard PMJ708 is a start capacitor with a capacitance range of 708-850 uF and a voltage rating of 110-125 VAC for intermittent motor start duty. It uses a round phenolic resin/plastic case with standard dual blade terminals and operates at 50/60 Hz. The capacitor is rated for 3 second starts and up to 20 starts per hour, with an operating temperature range of -40 to 149 F and dimensions 1-13/16 in diameter x 4-3/8 in height.

• Capacitance 708-850 uF; voltage rating 110-125 VAC; frequency 50/60 Hz.
• Intermittent motor start duty: 3 second start; up to 20 starts per hour; suitable for air conditioning motor start applications.
• Round phenolic resin/plastic case; dimensions 1-13/16 in diameter x 4-3/8 in height; standard dual blade terminals.

Product Highlights

Start capacitor 708-850 uF for 110-125 VAC motors; rated 3 sec start and 20 starts/hour; replaces 11028, 11928, BC705, G22-963.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PMJ708
• Country of Origin: China
