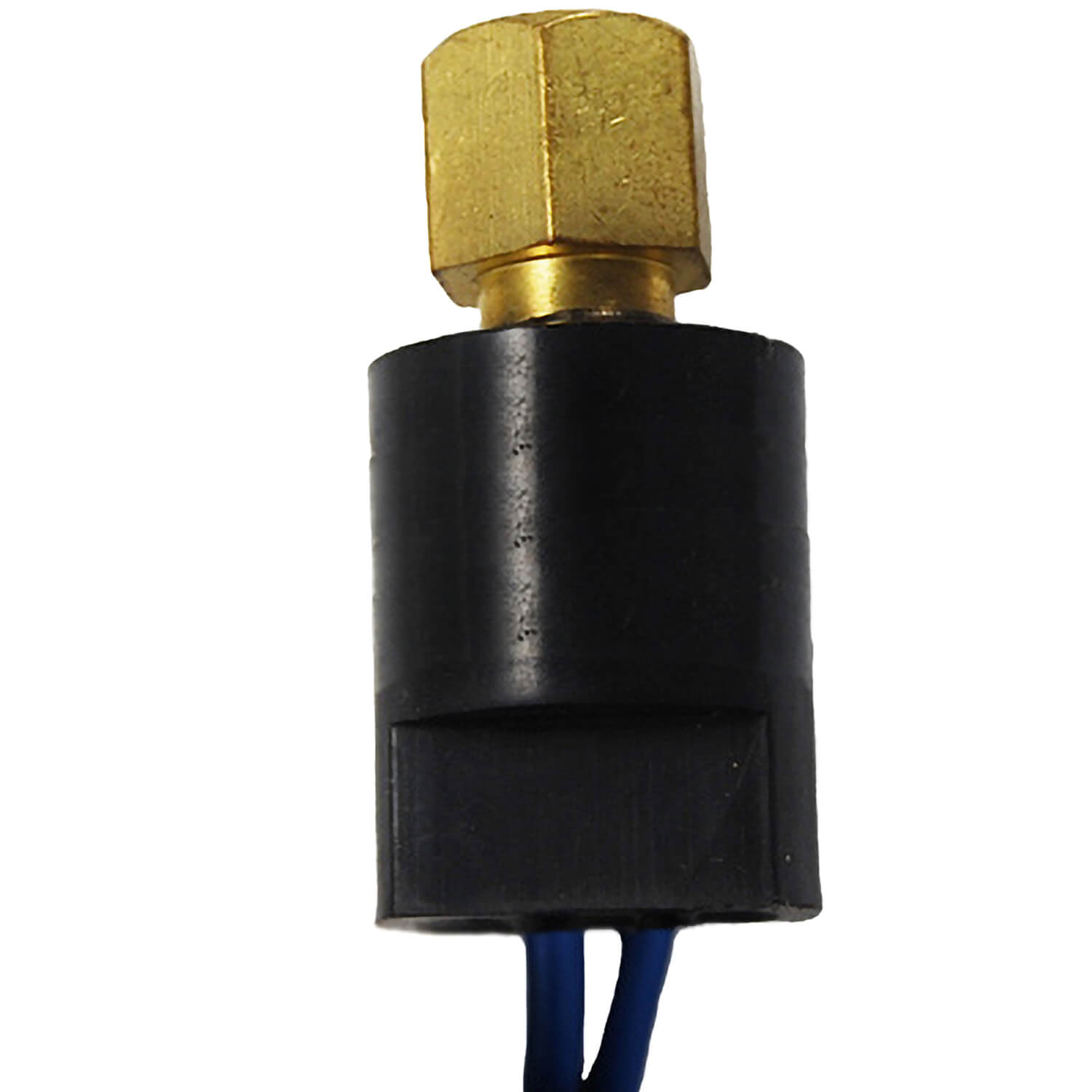

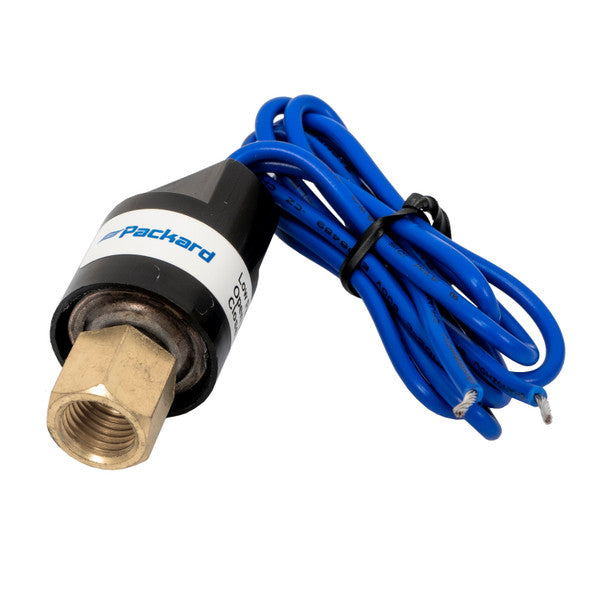

Packard PLP2580 Low Pressure Control 24-240V 6A (Each) MOTPLP2580

Product Description

Packard PLP2580 is a low pressure control for refrigeration and HVAC systems that opens at 25 PSI and closes at 80 PSI with a +/-15 PSI tolerance. The encapsulated, non-adjustable SPST switch uses a snap-acting stainless steel hermetically sealed sensor and mounts directly via a 1/4" SAE female flare fitting. Rated for 50/60 Hz at 24/120/240 V with long life at rated load.

• Open/close set points: opens at 25 PSI, closes at 80 PSI; tolerance +/-15 PSI; pressure range 0 to 650 PSI; burst pressure 5000 PSI
• Electrical: rated 50/60 Hz, 24/120/240 V; electrical rating approximately 6 A (6 RLA, 36 LRA); life at rated load 100,000 cycles
• Mechanical: 1/4" SAE female flare fitting with valve core depressor; snap-acting stainless steel hermetically sealed sensor; direct-mount, compact design; operating ambient -22F to 176F (-30C to 80C), fluid -58F to 248F (-50C to 120C)

Product Highlights

Low pressure SPST control that opens on pressure fall; 1/4" SAE flare fitting; hermetically sealed sensor; 0-650 PSI range

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PLP2580

Technical Specifications

• Brand: Packard
• Manufacturer Part Number: PLP2580
• Alternate Part Number: MOTPLP2580
• Product Type: Low Pressure Control
• Function: Low pressure SPST that opens on pressure fall
• Open Pressure (PSI): 25
• Close Pressure (PSI): 80
• Tolerance: +/-15 PSI
• Pressure Range: 0 to 650 PSI
• Burst Pressure: 5000 PSI
• Rated Voltage: 24 / 120 / 240 V AC
• Rated Frequency: 50/60 Hz
• Electrical Rating: 6 A (resistive); 6 RLA, 36 LRA (motor/inductive ratings as specified)
• Life at Rated Load: 100,000 cycles
• Connection Type: SAE female flare fitting with valve core depressor
• Connection Size: 1/4" SAE flare
• Sensor Type: Snap-acting stainless steel hermetically sealed sensor
• Mounting Type: Direct mount
• Operating Temperature (Ambient): -22F to 176F (-30C to 80C)
• Operating Temperature (Fluid): -58F to 248F (-50C to 120C)
• Weight: 0.15 lbs
• UPC: 840899121222
