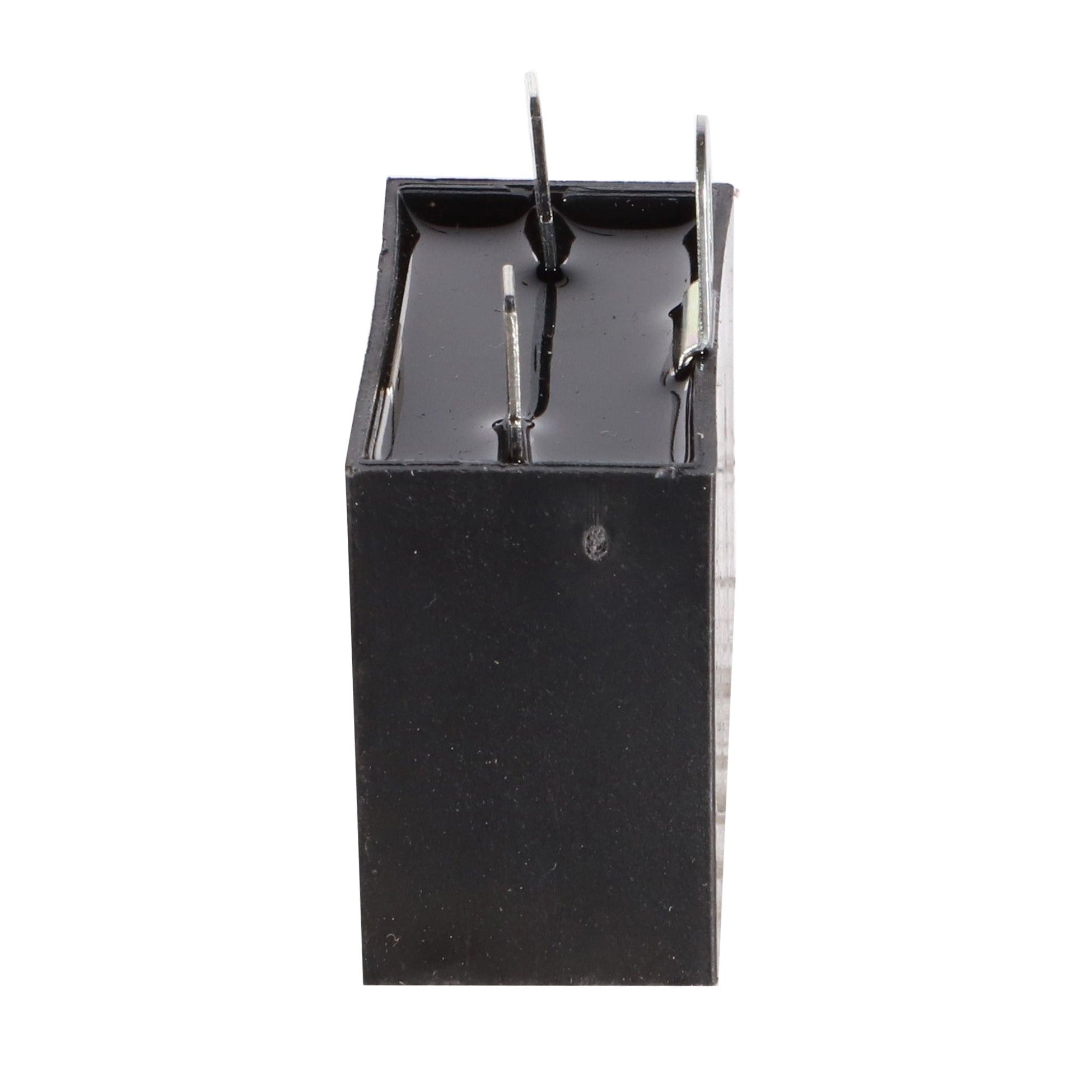

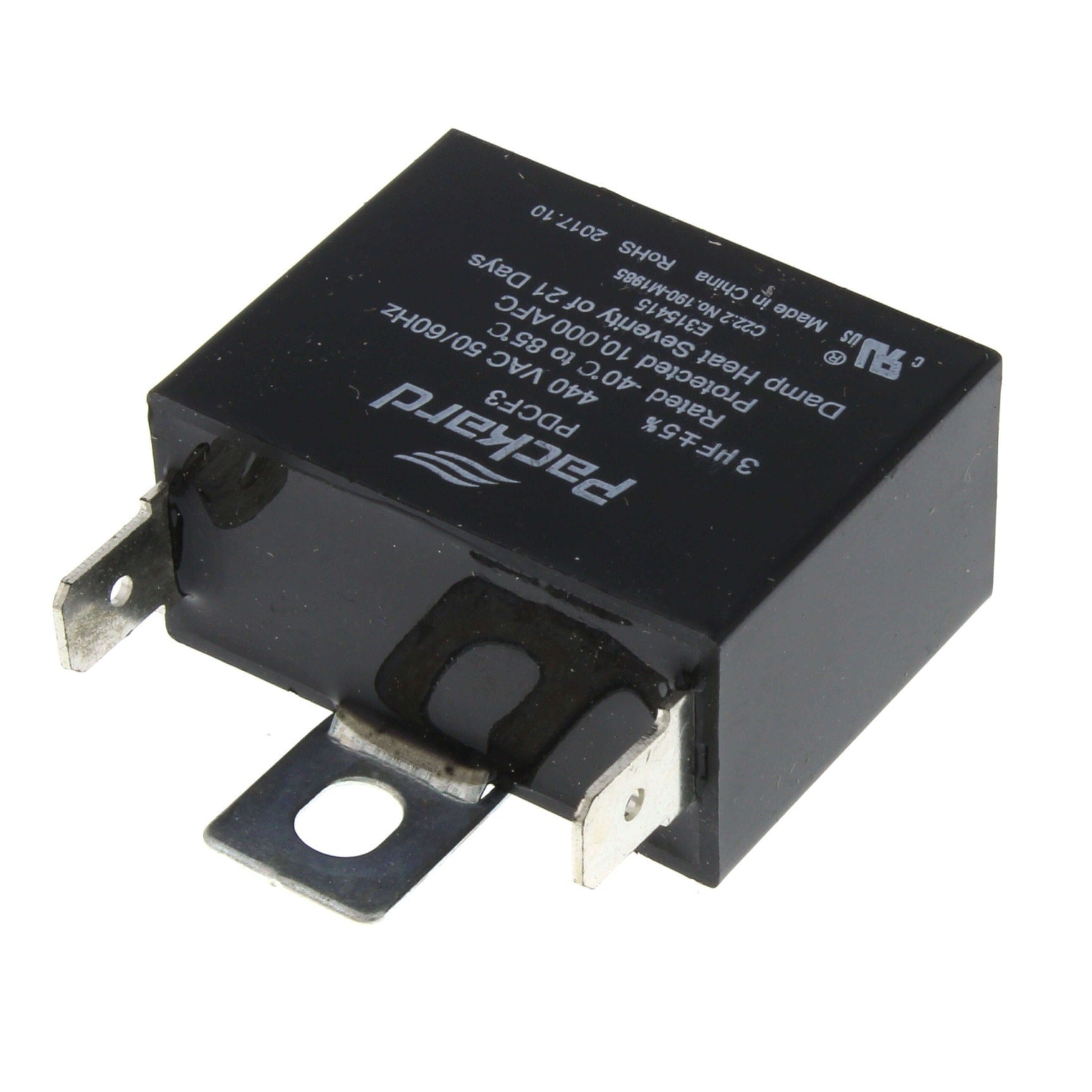

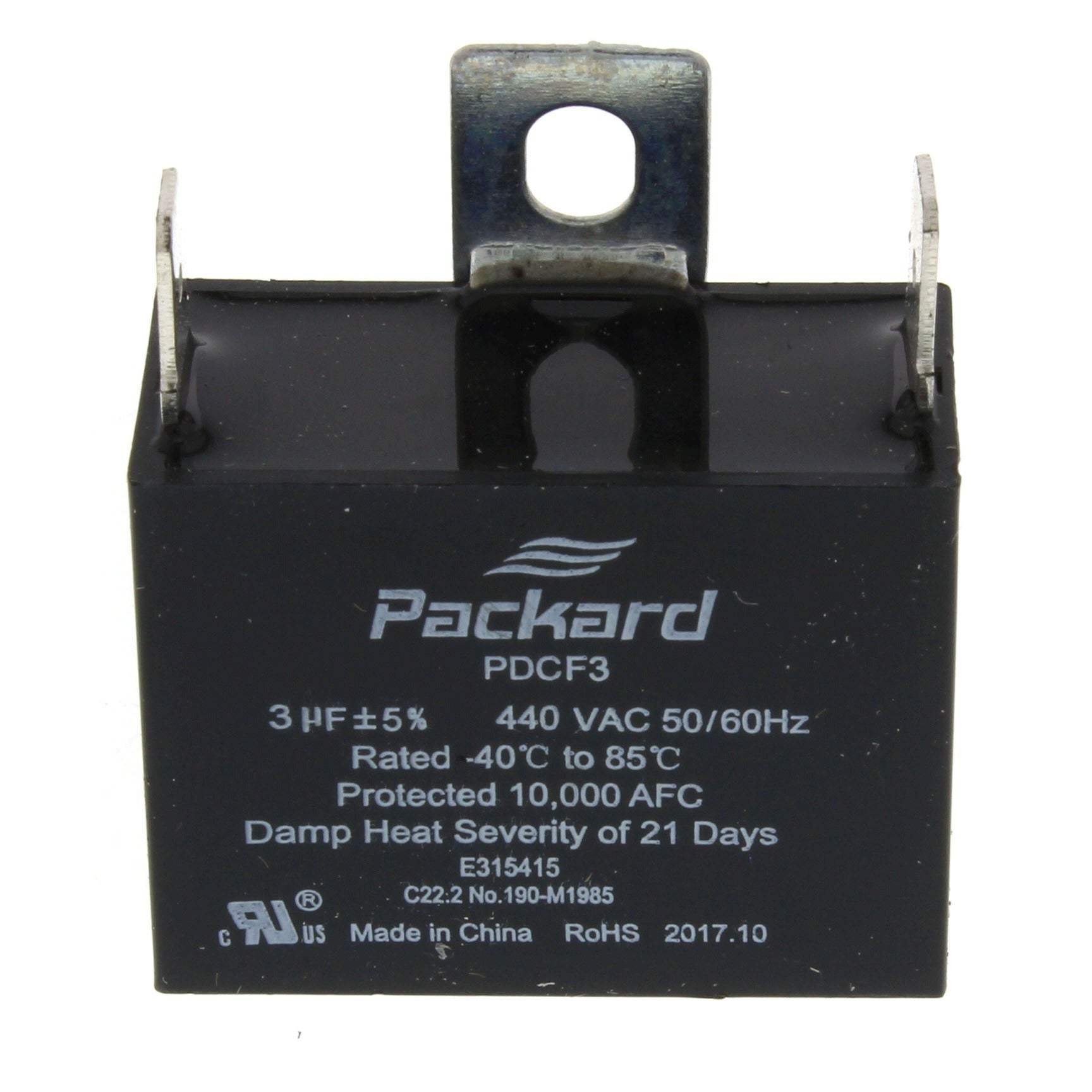

Packard PDCF3 Cap Run Dry Box Mfd 440V

Product Description

Packard PDCF3 is a dry AC motor run capacitor rated at 3 MFD and 440 V AC for 50/60 Hz applications. It uses a self-healing metalized polypropylene film dielectric in an ABS housing and is intended for use on electric motors in fans, pumps, blowers, and HVAC systems. The unit features 1/4 inch blade quick connect terminals, a metal tab mounting bracket, and protection to 10,000 AFC.

• Capacitance 3 MFD (3 µF) with ±5% tolerance; rated 440 V AC for 50/60 Hz
• Self-healing metalized polypropylene dielectric, plastic ABS case, two 1/4 in blade quick connect terminals
• Operating temperature -40°C to 85°C (-40°F to 185°F); protected to 10,000 AFC; UL recognized and RoHS compliant

Product Highlights

3 MFD, 440 V AC dry run capacitor with ±5% tolerance, ABS enclosure, quick-connect terminals, mounting bracket, UL recognized and RoHS compliant.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PDCF3
