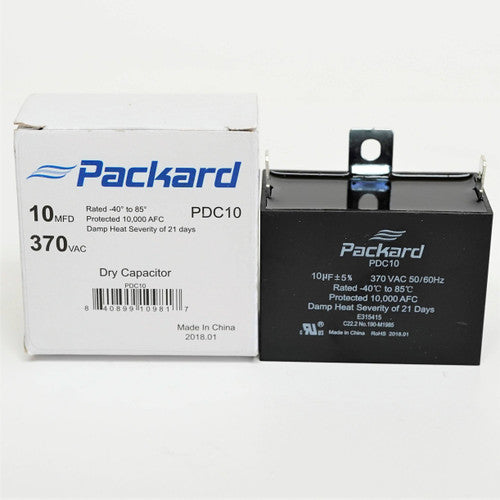

Packard PDC10 Motor Run Capacitor 370 VAC (10 MFD)

Product Description

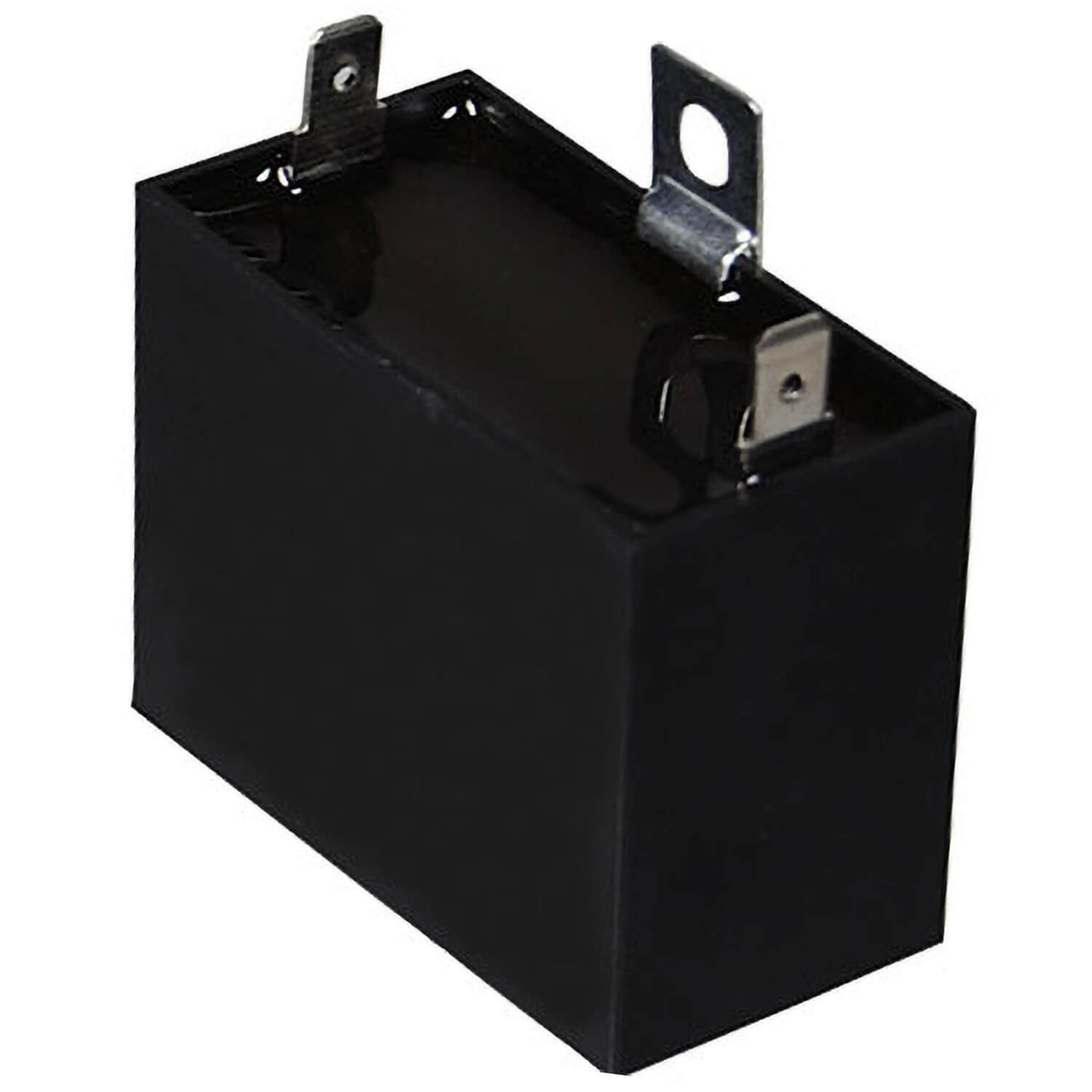

Packard PDC10 is a 10 µF ±5% motor run capacitor rated 370 VAC for 50/60 Hz motors. It uses a self-healing metallized polypropylene dielectric housed in a rectangular plastic ABS case, with 1/4 inch blade quick connect terminals and a metal tab mounting bracket. The capacitor is protected to 10,000 AFC, rated for operation from -40°C to 85°C (‑40°F to 185°F), and carries UL recognition and RoHS compliance.

• 10 µF ±5% capacitance, 370 VAC rating for 50/60 Hz motor applications
• Self-healing metallized polypropylene dielectric in an ABS rectangular case with 1/4 inch blade quick connect terminals and mounting bracket
• Operating temperature -40°C to 85°C; protected to 10,000 AFC; UL recognized and RoHS compliant

Product Highlights

10 µF ±5% 370 VAC motor run capacitor with metallized polypropylene self-healing dielectric, 1/4 inch quick connect terminals, metal tab mount, 10,000 AFC protection, UL recognized, RoHS compliant.

Product Information

Standard Information

• Brand: PACKARD
• Manufacturer Part Number: PDC10
• Country of Origin: United States

Technical Specifications

• Brand: Packard
• MPN: PDC10
• Product Type: Motor run capacitor
• Capacitance: 10 µF ±5%
• Frequency: 50/60 Hz
• Rated Voltage: 370 VAC
• Dielectric / Construction: Metallized polypropylene (self-healing)
• Case Material: Plastic ABS
• Terminals: 1/4 inch (6.35 mm) blade quick connect
• Mounting: Metal tab mounting bracket (includes mounting bracket)
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• AFC Protection: Protected to 10,000 AFC
• Certifications / Approvals: UL recognized; E315415; C22.2 No:190-M1985(3); RoHS 2012.05 compliant
• Shape: Rectangular
• Dimensions (stated): Length 1.25 in x Width 2.36 in x Height 2.44 in (add 0.5 in to height for terminal length)
• Weight (stated): 0.25 lb
• Typical Applications: Electric motors in fans, pumps, blowers, HVAC systems
