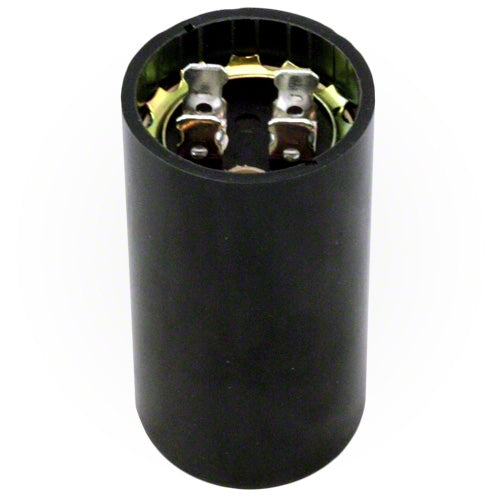

PACKARD BC216-330 Start Capacitor

Product Description

The PACKARD BC216-330 is a motor start capacitor that enhances the starting power of electric motors. With a capacitance range of two hundred sixteen to two hundred fifty-nine microfarads, it operates effectively at one hundred ten to one hundred twenty-five volts. This capacitor is ideal for intermittent use, allowing for a start time of three seconds and a maximum of twenty starts per hour. It meets the Electronic Industries Association (EIA) Standard RS-463 type 2 requirements.

• Capacitance range: 216-259 MFD
• Voltage rating: 110-125 volts
• Maximum starts per hour: 20

Product Highlights

Product Information

Standard Information

• Capacitance: 216-259 MFD
• Voltage: 110-125 volts

Technical Specifications

• Diameter: 1-7/16 inches
• Height: 2-3/4 inches
• Start Time: 3 seconds
• Starts per Hour: 20
• Operating Temperature: -40 to 65 degrees Celsius
• Standard: Meets or exceeds EIA Standard RS-463 type 2
• Frequency: 50/60 Hz
• UL Approval: UL recognized and CUL approved
