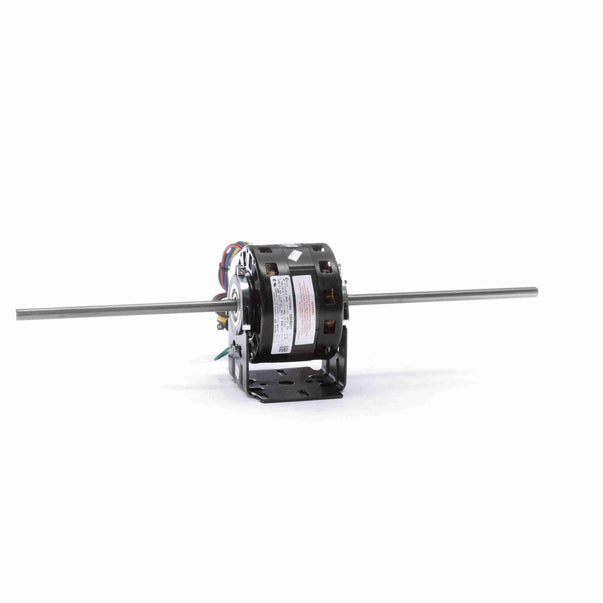

Packard 70483 Motor

Product Description

The Packard 70483 is an electric motor designed for general-purpose use. This motor is often used in HVAC fan coil and room air conditioning applications. It is recognized as a Permanent Split Capacitor (PSC) type motor that operates on single-phase power. The design includes a robust 42-frame size with an Open Air Over (OAO) enclosure, making it suitable for various industrial and HVAC systems.

• General-purpose electric motor applicable in HVAC systems.
• Permanent Split Capacitor (PSC) motor with a 42-frame and Open Air Over (OAO) enclosure.
• Built from rolled steel with sleeve bearings for durability.

Product Highlights

This motor is ideal for applications that require consistent performance, making it suitable for continuous duty operations.

Product Information

Standard Information

• UPC:
• Country of Origin:

Technical Specifications

• Product Type: PSC (Permanent Split Capacitor)
• Horsepower (HP): 1/20, 1/15, 1/10
• RPM: 1075
• Voltage: 208-230V
• Amps: 0.81
• Frequency (Hz): 60
• Phase: 1
• Frame: 42
• Enclosure Type: OAO (Open Air Over)
• Mounting: Cradle
• Material: Rolled Steel
• Motor Diameter: 5 inches
• Shaft Diameter: 1/2 inches
• Shaft Length: 10-11/16 inches
• Rotation: Double Shafted
• Number of Speeds: 3
• Service Factor (SF): 1.00
• Bearings: Sleeve
• Thermal Protection: Automatic
• Maximum Ambient Temperature: 40 °C
• Insulation Class: A
• Duty Cycle: Continuous
• Capacitor: 5MFD @ 370VAC Required
