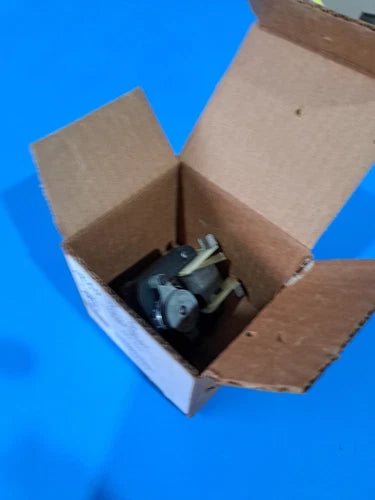

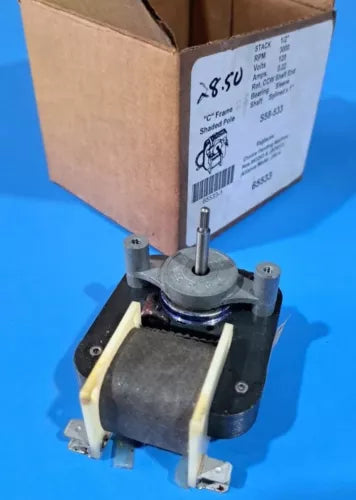

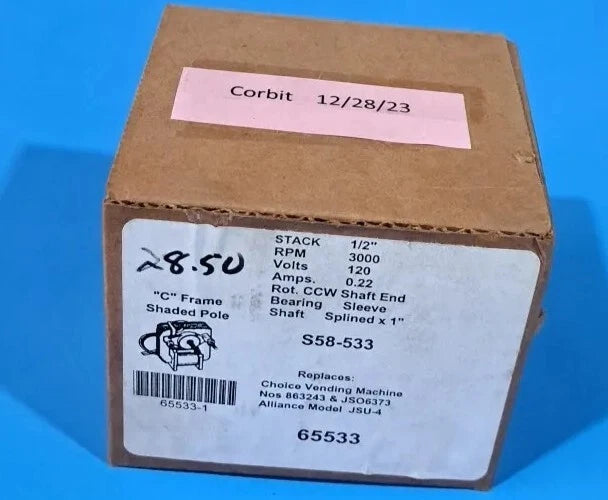

Packard 65533 C-Frame Motor - 1/2 Stack, 120V, 3000 RPM

Product Description

The Packard 65533 C-Frame Motor is a reliable motor designed for specific applications, including Choice Vending Machines and Alliance equipment. It operates at 120 volts and provides a speed of 3000 RPM. The motor has a shaded pole design with a 1-inch splined shaft, crucial for transferring mechanical power efficiently. Constructed with a combination of metal, plastic, and copper materials, this motor is built for durability.

• Operates at 120V and 3000 RPM for compatible equipment.
• Features a 1-inch splined shaft for mechanical power transmission.
• Equipped with sleeve bearings for enhanced support.

Product Highlights

This single-speed, single-phase electric motor is designed for optimal performance in designated applications.

Product Information

Standard Information

• Brand: Packard
• MPN: 65533

Technical Specifications

• Amps: 0.22
• Bearings: Sleeve
• Enclosure: Open
• Hertz: 60
• Motor Type: Shaded Pole
• NEMA Frame: C-Frame
• RPM: 3000
• Shaft Dimensions: Splined (3/16-inch Diameter)
• Speeds: 1
• Stack Size: 1/2
• Voltage: 120
• Power Source: Electric
• Item Length: 3 inches
• Item Width: 2 3/8 inches
• Item Weight: 1 lb
