Packard 50CW230 Refrigerator Refrigeration Motor

Product Description

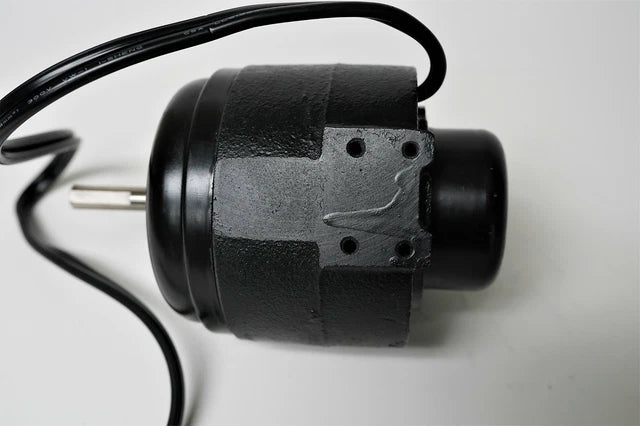

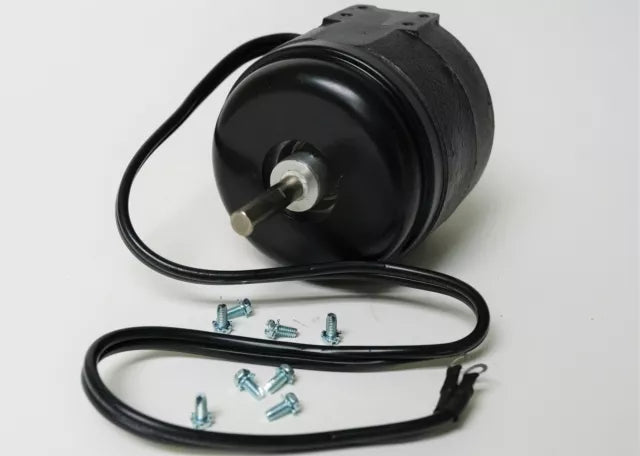

The Packard 50CW230 is a unit bearing motor designed for refrigeration applications. This motor operates at two hundred thirty volts and consumes fifty watts of power. It features clockwise rotation when viewed from the opposite side of the shaft end. The design includes three evenly spaced mounting holes and a double foot mount suitable for installation.

• Clockwise rotation from opposite shaft end
• Double foot mount for stability
• Ideal for refrigeration use

Product Highlights

Reliable performance in refrigeration systems with efficient power consumption.

Product Information

Standard Information

• Brand: Packard
• MPN: 50CW230

Technical Specifications

• Wattage: 50 watts
• Rotation: Clockwise from opposite shaft end
• Output Current: 0.85 amps
• Input Voltage: 230 volts
• RPM: 1500 RPM
• Oil Type: Low temperature oil

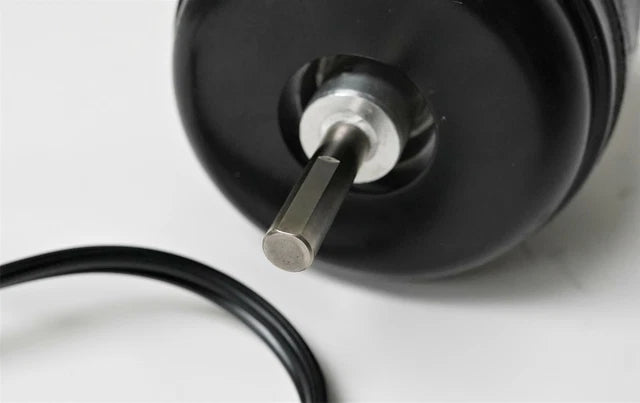

• Shaft Dimensions: 3/8 x 1 1/2 inches
• Mounting Type: Double foot mount
• Mounting Holes: 3 evenly spaced holes
