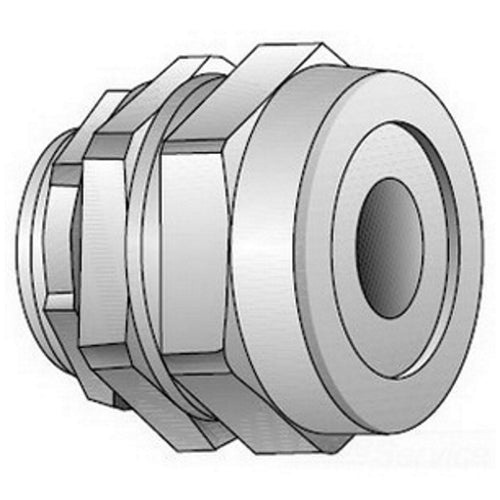

Oz Gedney SR-503 Cord Connector 1/2 Inch .2-.3

Product Description

The OZ GEDNEY SR-503 cord connector is a straight male type with a 1/2 inch thread size. Constructed with a zinc plated malleable iron body and PVC grommet, it accommodates cord sizes from 0.2 to 0.3 inches. It is suitable for oiltight, watertight, strain relief, and hazardous location applications.

• Straight Male Type
• Zinc Plated Malleable Iron Body, PVC Grommet Material
• UL, CSA Approval

Product Highlights

This cord connector features a 90 Deg C temperature rating and is UL and CSA approved.

Product Information

Standard Information

• Brand: OZ GEDNEY
• Manufacturer Part Number: SR-503
• Country of Origin: MX

Technical Specifications

• Type: Straight Male
• Thread Size: 1/2 Inch
• Material: Zinc Plated Malleable Iron Body, PVC Grommet
• Cord Size: 0.2 to 0.3 Inch
• Approval: UL, CSA
• Application: Oiltight, Watertight, Strain Relief, Hazardous Location
• Throat Inner Diameter: 0.52 Inch
• Temperature Rating: 90 Deg C
• Series: Gold Seal
• Standard & Approvals: UL E11857, UL 514B Listed, CSA 009795, CSA C22.2 No 18 Certified, Federal Specification A-505-52, RoHs Compliant
• Cable Openings: 0.2 to 0.3 in
• Connection Type: MNPT
• Finish: Zinc Plated
• ARRA Compliant: Y
• Buy American Compliant: N
• Catalog Number: SR-503
• Conductor Range: 0.2 - 0.3 IN
• Connection: MNPT
• Country of Origin: MX
• EU RoHS Indicator: Y
• Standards: ARRA CompliantRoHS CompliantCSA 009795 C22.2 No. 18Federal Specification A-505-52UL File No. E11857
• UNSPSC: 39121431
• UPC 12: 783126507256
• Brand: O-Z/Gedney
• Manufacturer: O-Z/Gedney
• Trade Size: 1/2 in
