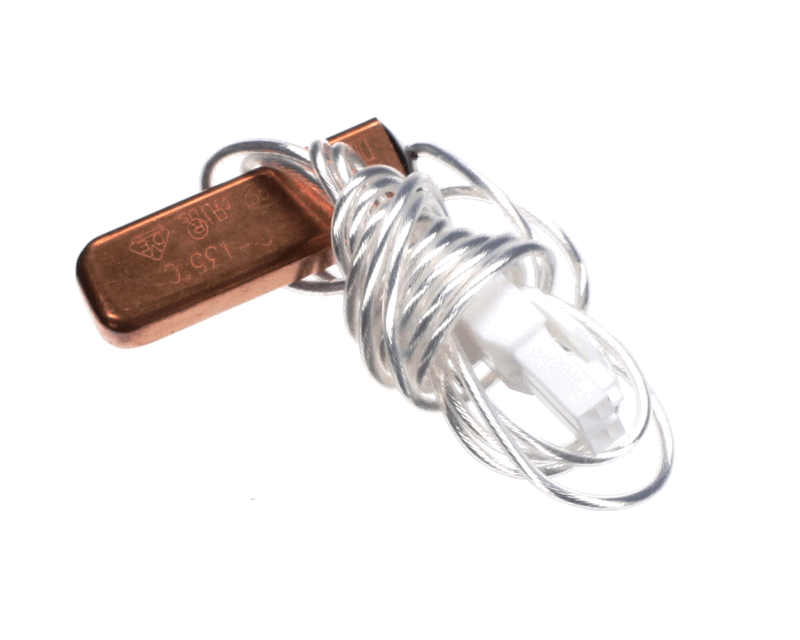

Oxbox sen02525 Discharge Temperature Sensor

Product Description

The OXBOX sen02525 is a discharge temperature sensor designed for use in residential and light commercial HVAC systems. This sensor monitors refrigerant or air discharge temperatures and feeds that data to the system control board, enabling the unit to respond to abnormal temperature conditions, protect compressor components, and maintain operating efficiency. At 0.119 pounds and compact dimensions of 3.5 x 2.5 x 2.5 inches, it is a direct OEM-style replacement that licensed HVAC technicians install during routine maintenance or component failure diagnostics.

This discharge temperature sensor is suited for split-system air conditioners and heat pumps where discharge temp monitoring is a required control input. It is typically installed at the compressor discharge line or within the refrigerant circuit to detect overheating conditions before they cause system damage. Technicians replacing a failed sensor as part of a compressor or refrigerant system diagnosis will find this a straightforward swap. Reference part 484346 is associated with this sensor.

Key Features

• Monitors discharge temperatures to protect compressor and refrigerant circuit components
• Compact form factor: 3.5 x 2.5 x 2.5 inches for easy installation in tight spaces
• Lightweight at 0.119 pounds, minimizing stress on mounting points
• OEM-style replacement for reliable, like-for-like performance
• Associated reference part number: 484346

Compatibility

Designed as an OEM-style replacement discharge temperature sensor for OXBOX residential and light commercial HVAC systems requiring a discharge temp sensing input to the control board.

Installation Notes

Installation should be performed by a licensed HVAC technician. Before replacing this sensor, shut off power to the unit at the disconnect and allow the refrigerant circuit to equalize pressure if the sensor contacts refrigerant. Follow local codes and manufacturer wiring diagrams when reconnecting sensor leads to the control board. Verify sensor operation with a multimeter or system diagnostic mode after installation.

Technical Specifications

• Length: 3.5 inches
• Width: 2.5 inches
• Height: 2.5 inches
• Weight: 0.119 pounds

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: sen02525
