Product Information

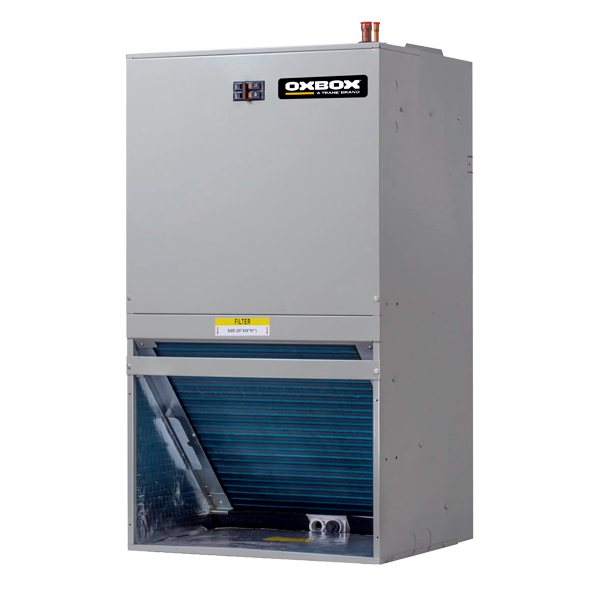

Box JMM5A0B36M31SAA 3 Ton Wall-Mount Air Handler
Description:
Standard Features:
Oxbox wall-mount air handlers are adaptable to 13, 14 and 16 SEER models
3 ton
All-aluminum coils
Painted metal cabinet with foil face insulation
Built in filter rack
Auxiliary heaters available in 5kw, 8kw and 10kw
Factory installed R-410A thermal expansion valve
ECM constant torque motor
Front and Bottom Return Applications Support Cooling and Heating
Specifications:
AC/WC : Air-Cooled
BTU: 36,000
CFM: 1,200
Handing: Multi-position
Voltage: 208/230-1-60
Mca (Ahu): 3.4
Mocp (Ahu): 15
Orientation: Vertical Front Return
Cooling Stages: 1
Motor Type: Ecm
Refrigerant Type: R-410a
Liquid Line Size (Od): 0.375
Suction Line Size (Od): 0.75
Net Weight Lbs: 97.00
Net Length/depth In: 19.00
Net Width In: 22.00
Net Height In: 39.50
