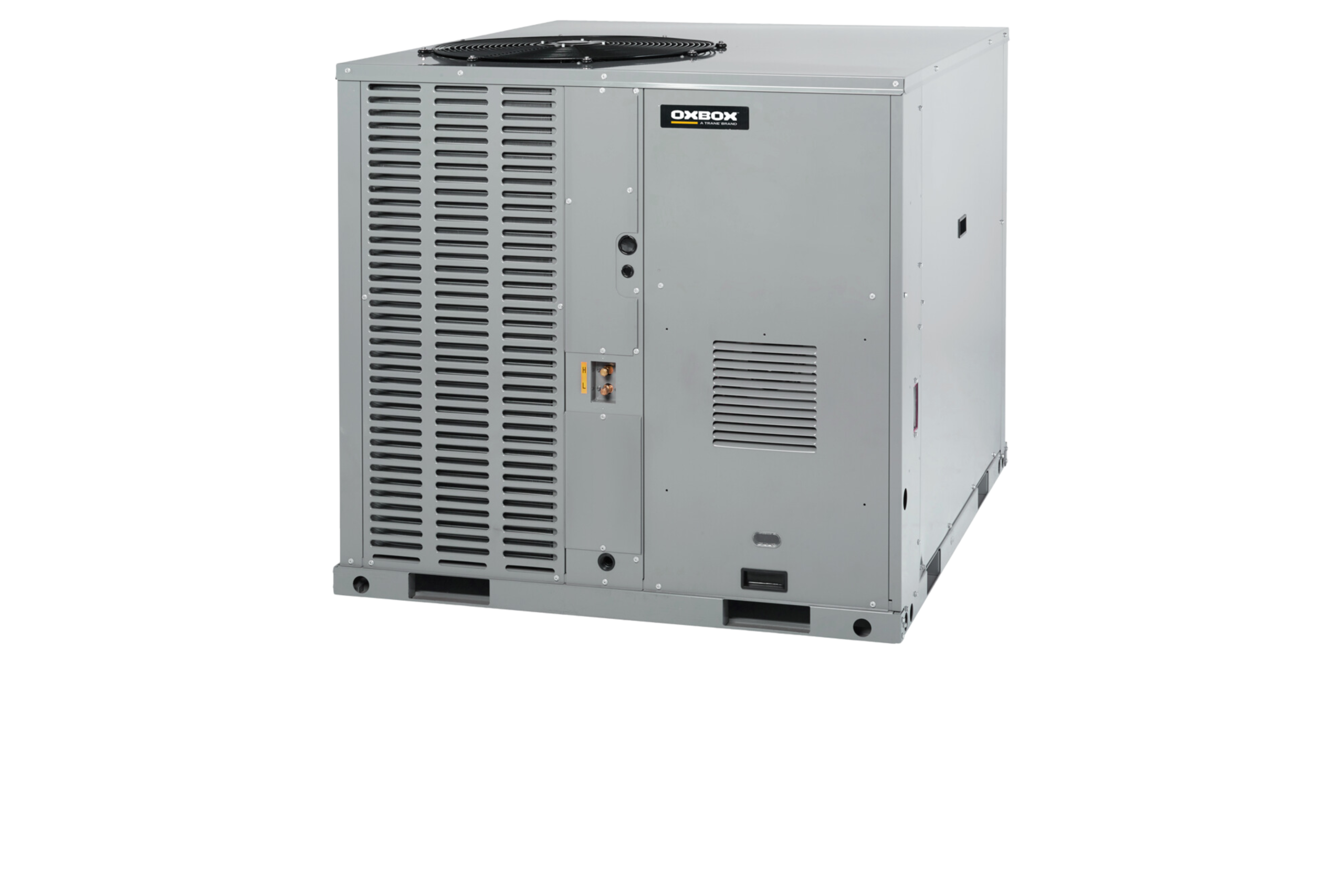

Oxbox J5PG4060A1090A Gas Electric Packaged Unit 5 Ton 90000 Btu 13.4 SEER2 Residential Light Commercial

Product Description

The Oxbox J5PG4060A1090A is a 5-ton gas/electric packaged HVAC unit designed for residential and light commercial applications requiring dependable year-round heating and cooling from a single outdoor cabinet. The system delivers approximately 60,000 BTU of cooling capacity at a 13.4 SEER2 efficiency rating and integrates a 90,000 BTU gas furnace section, eliminating the need for a separate indoor air handler or furnace. Air conditioning, gas heating, a blower assembly, and system controls are all housed in one weather-resistant steel cabinet. Licensed HVAC technicians install and commission this equipment.

The J5PG4060A1090A is suited for rooftop or ground-level installation in residential and light commercial settings where interior mechanical space is limited or where a single-cabinet solution simplifies the installation. The unit operates on single-phase 208/230-volt power and uses R-454B refrigerant, meeting current low-global-warming-potential refrigerant requirements. It is a practical replacement or new-installation choice wherever a self-contained gas/electric package unit is specified.

Key Features

• All-in-one cabinet combines air conditioning, gas furnace, blower, and controls — no separate indoor unit required
• 5-ton cooling capacity with approximately 60,000 BTU output and 13.4 SEER2 efficiency rating
• Integrated 90,000 BTU gas heating section for year-round operation
• R-454B refrigerant — low-GWP refrigerant compliant with current industry standards
• Single-phase 208/230-volt electrical supply reduces wiring complexity
• Weather-resistant steel cabinet construction suitable for outdoor installation

Compatibility

Designed as an OEM-style gas/electric packaged unit for residential and light commercial ducted HVAC systems requiring a 5-ton, single-phase package unit with an integrated gas furnace section.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes, the National Fuel Gas Code (NFPA 54), and the manufacturer's installation instructions. Shut off electrical power at the disconnect and close the gas supply valve before making any connections or performing service. R-454B refrigerant handling requires EPA Section 608 certification and appropriate recovery equipment rated for A2L refrigerants. Verify that the existing duct system, gas supply line sizing, and electrical service ampacity meet the unit's listed requirements before startup.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h (5 tons)
• Heating Capacity: 90,000 BTU/h
• SEER2 Rating: 13.4
• Refrigerant: R-454B
• Voltage: 208/230 volts, single phase
• Unit Type: Gas/Electric Packaged Unit
• Cabinet Material: Steel
• Weight: 350 pounds

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5PG4060A1090A
