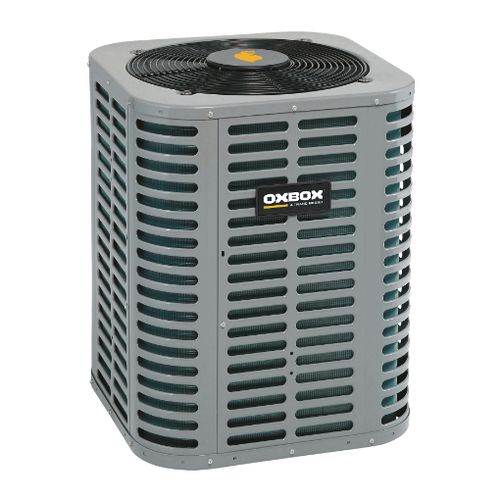

Oxbox J5HP5018A1000 Heat Pump Condenser 1.5 Ton 14.3 SEER2 R-454B Residential Split System

Product Description

The Oxbox J5HP5018A1000 is a 1.5-ton residential heat pump condenser unit rated at 14.3 SEER2 and designed to operate on R-454B refrigerant. It delivers both heating and cooling through a split-system configuration, pairing with a compatible air handler and TXV to form a complete system. Rated at 18,000 BTU/h, this unit suits smaller residential applications where efficiency and reliable year-round comfort are the primary requirements. The cabinet is constructed from painted galvanized steel for corrosion resistance. Licensed HVAC technicians install and commission this unit as the outdoor section of a residential split system.

This condenser is suited for residential split-system heat pump installations in smaller homes or zone applications where a 1.5-ton capacity is appropriate. Oxbox is a Trane brand, and this unit is designed to work within matched split-system configurations. The J5HP5018A1000 is part of the J5HP5 product family, which is available in a range of capacities. This unit has been listed in split-system and dual-fuel split-system configurations when paired with compatible air handlers and accessories.

Key Features

• 1.5-ton cooling and heating capacity at 18,000 BTU/h
• 14.3 SEER2 efficiency rating meets current federal minimum standards
• R-454B refrigerant — a lower global-warming-potential alternative to R-410A
• Painted galvanized steel cabinet resists rust and physical damage
• Single-stage operation at 208/230V, single-phase, 60 Hz
• Running load amps of 7.8 A with a locked rotor amp rating of 47.5 A

Compatibility

Designed for use in residential split-system heat pump configurations; documented pairings include compatible Oxbox air handlers and TXV accessories. Consult the manufacturer specification sheet to confirm matched-system combinations before ordering.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling refrigerants. Shut off all power at the disconnect before making electrical or refrigerant connections. Refrigerant line sizing, evacuation procedure, and system charging must follow the manufacturer specification sheet and applicable local mechanical codes. Do not operate the unit without verifying that the matched indoor section and TXV are correctly installed and that the refrigerant circuit has been properly evacuated and leak-checked.

Technical Specifications

• Capacity: 1.5 tons (18,000 BTU/h)
• SEER2 Rating: 14.3
• Refrigerant: R-454B
• Voltage: 208/230 volts, single-phase, 60 Hz
• Running Load Amps: 7.8 A
• Locked Rotor Amps: 47.5 A
• Stages: 1
• Cabinet Material: Painted galvanized steel
• Sound Power Level: 75 dB(A)

Standard Information

• Brand: Oxbox
• Manufacturer Part Number: J5HP5018A1000
