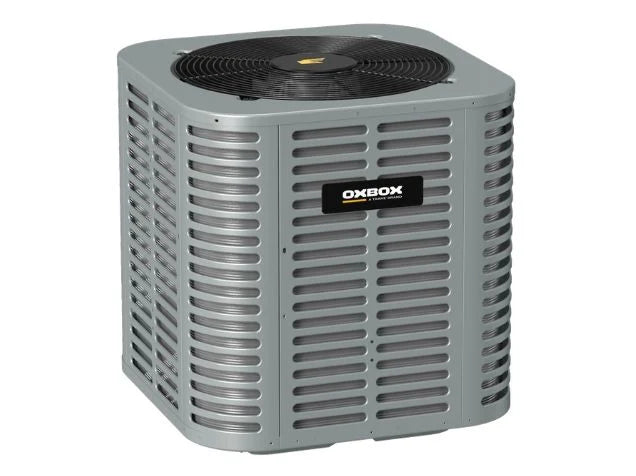

Oxbox J5AC3036A1000A 3 Ton 13.4 SEER2 R-454B Single-Stage Air Conditioner Condenser

Product Description

The Oxbox J5AC3036A1000A is a dependable 36,000 BTU (3.0-Ton) single-stage air conditioner condenser engineered to provide efficient and sustainable cooling for residential homes. As part of the modern J5 series, this unit is optimized for R-454B low-GWP refrigerant, ensuring compliance with the latest environmental standards while future-proofing your home's HVAC system. Designed with Trane Technologies' expertise, this condenser features a high-performance all-aluminum microchannel coil that offers superior heat transfer and exceptional resistance to corrosion, even in harsh outdoor environments.

• DOE 2023 compliant with a 13.4 SEER2 efficiency rating
• Utilizes R-454B low-GWP refrigerant for reduced environmental impact
• All-aluminum microchannel coil design for enhanced durability and lighter weight
• Compact 28-inch footprint allows for easy installation in space-restricted areas

Product Highlights

Constructed for longevity, the J5AC3036A1000A features a heavy-gauge galvanized steel cabinet finished with weather-resistant powder paint that has undergone 500-hour salt spray testing. The unit utilizes a smooth-operating scroll compressor for reliable, quiet performance with sound levels averaging 76 dB. It is designed to maintain consistent cooling in outdoor ambient temperatures up to 115°F and is backed by a 10-year registered limited warranty on the compressor and parts, providing long-term value and comfort.

Product Information

Standard Information

• Brand: Oxbox (A Trane Brand)
• MPN: J5AC3036A1000A
• Series: J5AC3

Technical Specifications

• Product Type: Air Conditioner Condenser
• Cooling Capacity (BTU): 36,000
• Tonnage: 3.0 Ton
• SEER2 Rating: 13.4
• Voltage: 208/230V
• Phase: 1
• Hertz: 60
• Refrigerant Type: R-454B
• Compressor Type: Single-Stage Scroll
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Sound Level (dB): 76.0
• Net Weight: 151.0 lbs
• Shipping Weight: 162.0 lbs
• Dimensions: 28.0" W x 28.0" D x 24.94" H
