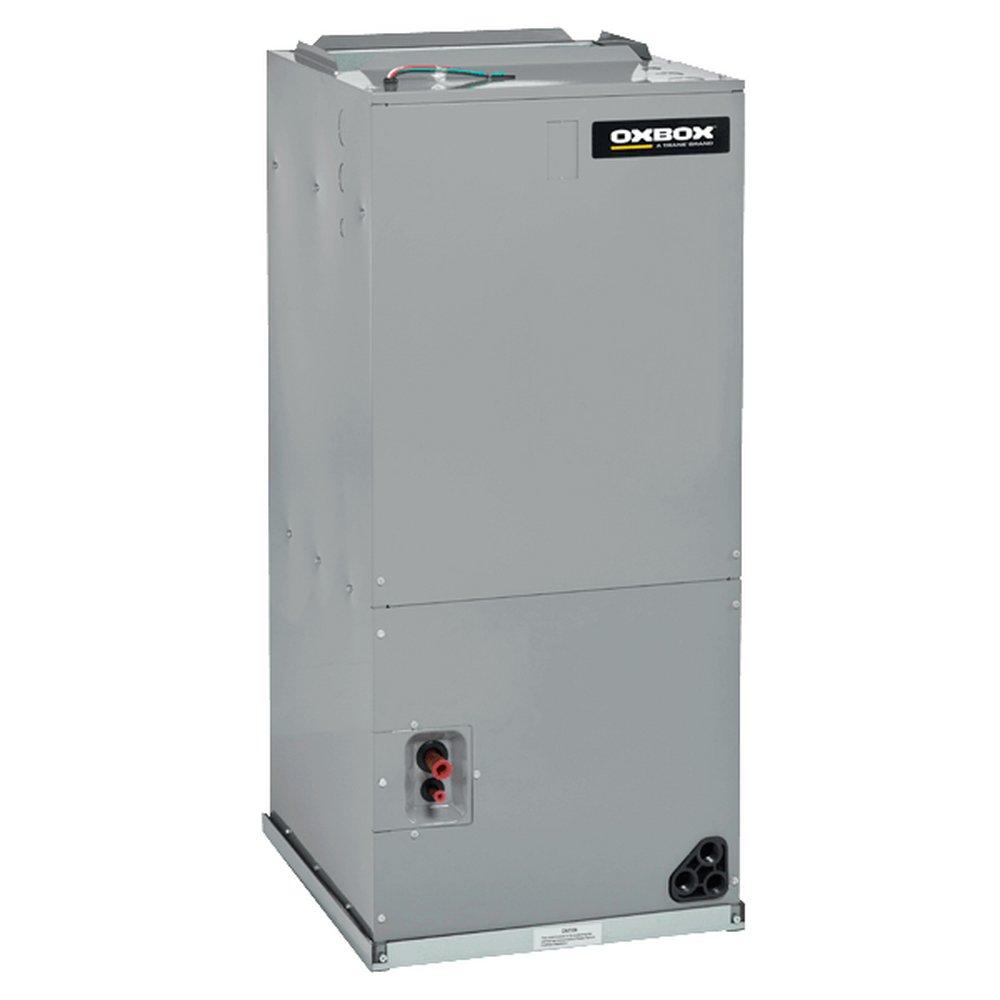

Oxbox J4AH4P18E1A00A 1.5 Ton Air Handler

Product Description

The OXBOX J4AH4P18E1A00A is a 1.5 Ton air handler with a PSC motor. Designed to circulate heated or cooled air throughout a home year-round, it is optimized for DOE 2023 efficiency standards. This air handler features a rugged, rust-resistant cabinet and is designed for easy installation in various configurations.

• Optimized for DOE 2023 efficiency standards
• Rugged, rust-resistant cabinet
• Easy installation in various configurations

Product Highlights

This Oxbox air handler is designed for efficient and reliable air circulation, featuring a durable build and versatile installation options.

Product Information

Standard Information

• Brand: OXBOX
• Manufacturer Part Number: J4AH4P18E1A00A

Technical Specifications

• Oxbox Model: J4AH4P18E1A00A
• Tonnage: 1.5 Tons
• Cooling Capacity: 18,000 BTU/hr
• Motor Type: Permanent Split Capacitor (PSC) Multi-Speed motor
• Airflow: Approximately 927–980 CFM
• Voltage: 208/230V
• Refrigerant: R-410A
• Coil Design: All-aluminum coil for superior heat transfer and rust resistance
• Configuration: Multi-position
• Cabinet: Painted, galvanized steel cabinet with less than 2% air leakage
• Connections: 3/4" Suction and 3/8" Liquid
• Maintenance: Features a removable front panel and slide-out blower/coil assemblies for easy troubleshooting
• Certifications: AHRI Certified and ETL Listed
• Amps: 1.5 A
• Cooling BTU: 18000
• Depth: 20.5 in
• Filter Size: 16 x 18 in
• Heat: 10kW
• Height: 41.38 in
• Manufacturer Name: Trane, Trane Technologies
• Piston: 0.050.
• Type: AHU
• Width: 18.13 in
• SEER Rating: 14.3
• A2L Compatible: No
• BTU: 18000
• Blower Type: 3 Speed
• Coil Type: Plate Fin
• Collection: J4AH4 Series
• ETL Listed: Yes
• Energy Star Compliant: No
• Fan Speeds: 3
• Horsepower: 1/8 hp
• Liquid Line (OD): 3/8 in
• MBH: 18
• Max CFM: 927 cfm
• Phase: Single Phase
• Power Source: Electric
• Refrigeration Control Type: Orifice
• Stages: Single
• Suction Line (OD): 3/8 in
• UL Listed: No
• Volts: 208/230V
• Amperage Rating: 1.5 A
• BTUH: 18000
• Blower Motor Type: PSC
• CFM Rating: 980 cfm
• Capacity (BtuH): 18000
• Coil Rows: 4
• Connection Size: 3/4 in
• Connection Type: FNPT
• Drain Connection Size (In): 3/4 NPT
• Duct Size (In): 16 x 10.31
• Elec Hertz: 60 Hz
• Elec Phases: 1 ph
• Elec Volts: 208/230 V
• FPI: 17
• Fan Drive: Direct
• Fan Motor FLA: 1.5
• Fan Type: Centrifugal
• Filter Furnished: No
• Filter Hi Vel. (No.-Size-Thk.): 1 - 16 x 18 - 1
• Filter Size (In): 16 x 20 x 1
• Filter Type Recommended: Throwaway
• Finish: Painted
• Footprint Depth: 20.5
• Footprint Width: 18.125 in
• Frequency Rating: 60 Hz
• Function: No Secondary Function
• HP Rating: 1/5 hp
• Indoor Coil-Face Area sq-ft: 2.99
• Indoor Coil-Type: Plate Fin
• Indoor Fan Type: Centrifugal
• Indoor Fan-Dia x W in: 10-5/8 x 10-3/4
• Line Size - Liquid (in): 3/8
• Line Size - Suction (In): 3/4
• Liquid Line Size: 3/8 in
• MCA: 0.68
• MOP: 15
• Major Design Sequence: E
• Material: Steel
• Minor Design Sequence: A
• Model Number: J4AH4P
• Model-Phase: 1
• Motor (RPM): 755
• Motor HP: 1/5
• Nominal Capacity (Ton): 1.5
• Nominal Capacity BTUs: 18000
• Nominal Capacity: 1.5 ton
• Number of Fan Motors: 1
• Number of Fans: 1
• Number of Phase: 1
• Number of Speeds: 3
• Power Supply: 208/230 V/1 Phase/60 Hz
• Product Type: Air Handler
• Refrigerant Control: Orifice
• Refrigerant Type: R-410A
• Rotational Speed: 755 rpm
• Voltage Rating: 200/230 V
